Stock Code: PMF8-2C
| General | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| ORing Switch Model | PMF8-2C | ||||||||||

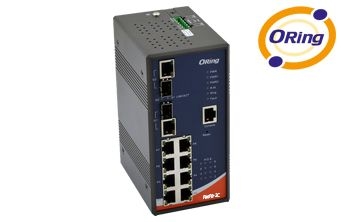

| Description | Industrial 10-port managed PoE Ethernet switch with 8x10/100Base-T(X) P.S.E. and 2xGigabit combo ports, SFP socket | ||||||||||
| Physical Ports | |||||||||||
| 10/100Base-T(X) Ports in RJ45, Auto MDI/MDIX with P.S.E. | 8 | ||||||||||
| Gigabit Combo Ports with 10/100/1000Base-T(X) and 100/1000Base-X SFP port | 2 | ||||||||||
| Technology | |||||||||||
| Ethernet Standards | IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX and 100Base-FX IEEE 802.3z for 1000Base-X IEEE 802.3ab for 1000Base-T IEEE 802.3x for Flow Control IEEE 802.3ad for LACP (Link Aggregation Control Protocol) IEEE 802.1D for STP (Spanning Tree Protocol) IEEE 802.1p for COS (Class of Service) IEEE 802.1Q for VLAN Tagging IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol) IEEE 802.1s for MSTP (Multiple Spanning Tree Protocol) IEEE 802.1x for Authentication IEEE 802.1AB for LLDP (Link Layer Discovery Protocol) IEEE 802.3at PoE specification (up to 30 Watts per port for P.S.E.) | ||||||||||
| MAC Table | 8192 MAC addresses | ||||||||||
| Priority Queues | 4 | ||||||||||
| Processing | Store-and-Forward | ||||||||||
| Switch Properties | Switching latency: 7 µs Switching bandwidth: 5.6 Gbps Max. number of available VLANs: 4096 IGMP multicast groups: 1024 Port rate limiting: User define | ||||||||||
| Security Features | Enable/disable ports, MAC based port security Port based network access control (802.1x) VLAN (802.1Q) to segregate and secure network traffic Supports Q-in-Q VLAN for performance & security to expand the VLAN space RADIUS centralized password management SNMP v1/v2c/v3 encrypted authentication and access security | ||||||||||
| Software Features | STP/RSTP/MSTP (IEEE 802.1D/w/s) Redundant Ring (O-Ring) with recovery time less than 10 ms over 250 units TOS/Diffserv supported Quality of Service (802.1p) for real-time traffic VLAN (802.1Q) with VLAN tagging and GVRP supported IGMP Snooping for multicast filtering Port configuration, status, statistics, monitoring, security SNTP for synchronizing of clocks over network PTP Client (Precision Time Protocol) clock synchronization DHCP Server / Client support Port Trunk support MVR (Multicast VLAN Registration) support Modbus/TCP | ||||||||||
| Network Redundancy | O-Ring, Open-Ring, O-Chain, STP, RSTP, MSTP, MRP | ||||||||||
| Warning / Monitoring System | Relay output for fault event alarming Syslog server / client to record and view events SMTP for event warning notification via email Event selection support | ||||||||||
| DDM Function | Voltage / Current / Temperature | ||||||||||
| RS-232 Serial Console Port | RS-232 in RJ45 connector with console cable; 9600 bps, 8, N, 1 | ||||||||||
| LED Indicators | |||||||||||
| Power / PoE Indicator | Green: Power LED x 3, Green: PoE LED x 8 | ||||||||||
| O-Ring Indicator | Green: Indicates that the system is operating in O-Ring mode | ||||||||||
| R.M. Indicator | Green: Indicates that the system is operating in O-Ring mode | ||||||||||
| Fault Indicator | Amber: Indicates unexpected event occurred | ||||||||||
| 10/100Base-T(X) RJ45 Port Indicator | Green for port Link/Act., Amber for Duplex/Collision | ||||||||||
| 10/100/1000Base-T(X) RJ45 Port Indicator | Green for port Link/Act., Amber for 100 Mbps indicator | ||||||||||
| 100/1000Base-X / Fiber Port Indicator | Green for port Link/Act. | ||||||||||
| Fault Contact | |||||||||||
| Relay | Relay output to carry capacity of 1 A at 24 VDC | ||||||||||
| Power | |||||||||||
| Redundant Input Power | Dual DC inputs, 50 ~ 57 VDC on 6-pin terminal block | ||||||||||
| Power Consumption (Typ.) | 7.68 Watts (power consumption of P.S.E. is not included) | ||||||||||
| Overload Current Protection | Present | ||||||||||
| Reverse Polarity Protection | Not present | ||||||||||
| PoE Pin Definition | |||||||||||
| RJ-45 Pin Definition |
| ||||||||||
| Physical Characteristics | |||||||||||
| Enclosure | IP-30 | ||||||||||
| Dimensions (W × D × H) | 74.3 (W) × 109.2 (D) × 153.6 (H) mm (2.93 × 4.3 × 6.05 inch) | ||||||||||
| Weight | 1185 g | ||||||||||
| Environmental | |||||||||||
| Storage Temperature | -40 to 85°C (-40 to 185°F) | ||||||||||
| Operating Temperature | -40 to 70°C (-40 to 158°F) | ||||||||||
| Operating Humidity | 5% to 95% (non-condensing) | ||||||||||
| Regulatory Approvals | |||||||||||
| EMI | FCC Part 15, CISPR (EN55022) Class A | ||||||||||
| EMS | EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11 | ||||||||||
| Shock | IEC60068-2-27 | ||||||||||
| Free Fall | IEC60068-2-32 | ||||||||||
| Vibration | IEC60068-2-6 | ||||||||||
| Safety | EN60950-1 | ||||||||||
| Warranty | 5 years | ||||||||||
| Packing List | |||||||||||
| Package Contents | PMF8-2C DIN-Rail Kit Wall-mount Kit Console Cable ORing Tool CD Quick Installation Guide | ||||||||||
| Optional Accessories (can be purchased separately) | Open-Vision M500, Powerful Network Management Windows Utility Suite, 500 IP device SFP100 series, 100 Mbps SFP optical transceiver SFP1G series, 1 Gbps SFP optical transceiver DR-75-48, 75 W DIN-Rail power supply DR-120-48, 120 W DIN-Rail power supply SDR-240-48, 240 W DIN-Rail power supply | ||||||||||
•Fastest Redundant Ethernet Ring : O-Ring (recovery time < 10ms over 250 units of connection)
•Open-Ring support the other vendor’s ring technology in open architecture
•O-RSTP support applications with complex topology
•8 ports of P.S.E. that are fully compliant with IEEE802.3af standard provides up to 15.4 Watts per port
•STP/RSTP/MSTP supported
•Provides PoE power on delay function, users can define delay time for PoE power supply
•Supports PTP Client (Precision Time Protocol) clock synchronization
•IGMP v2/v3 (IGMP snooping support) for filtering multicast traffic
•Port Trunking for convenience of bandwidth management
•SNMP v1/v2c/v3 support for secured network management
•RMON for traffic monitoring
•Supports DDM (Digital Diagnostic Monitoring) function
•Event notification through Syslog, Email, SNMP trap, and Relay Output
•Windows utility (Open-Vision) supports centralized management and is configurable by Web-based ,Telnet, Console, CLI
•Supports two Gigabit combo ports
•Rigid IP-30 housing design
•DIN-Rail and wall mounting enabled
•Supports LLDP Protocol
