S/FTP CAT6A 10G 23AWG PIMF LSZH Network Cable500mt

Name: S/FTP CAT6A 10G 23AWG PIMF LSZH Network Cable500mt
Brand: Oring Networking
SKU: RW-SS06A01WH

Stock Code: RW-SS06A01WH

Options

2 options

Length500 m1

ColorStandard2

Currently viewing: RW-SS06A01WH · 500 m · Standard

Prepares the building backbone for 10 Gigabit traffic

This S/FTP PIMF shielded CAT6A network cable builds the horizontal and vertical runs of a structured cabling system. Its 23 AWG copper conductor and 500 MHz bandwidth carry 10 Gigabit Ethernet traffic over long distances. The LSZH outer jacket keeps the fire load low in enclosed and crowded spaces.

CAT6ACable Type

S/FTPShielding

500 MHzFrequency

23 AWGCable Thickness

500 mLength

WhiteCable Color

Key features

10GBase-T

High-speed network support

Carries IEEE 802.3an 10GBase-T, 1000 Base-TX Gigabit Ethernet, 10Base-T and 100Base-TX Fast Ethernet links.

500MHz

Extended bandwidth

CAT6A class bandwidth keeps the signal margin high and limits losses on long runs.

23AWG

Thick copper conductor

The heavy-gauge copper conductor lowers attenuation on horizontal runs.

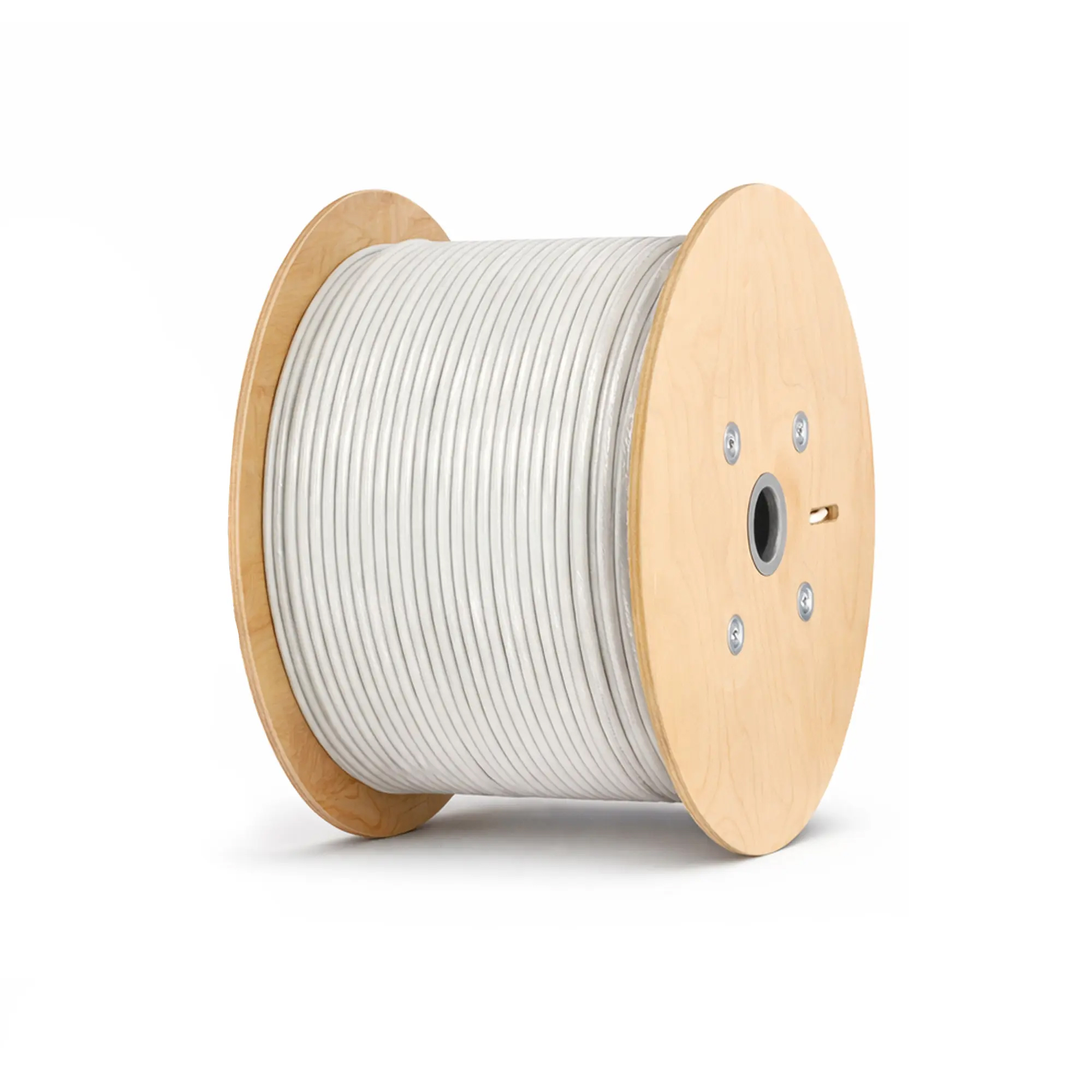

500m

Full drum length

A single drum feeds in-building distribution runs without splices.

155/622Mbps

ATM and legacy services

Carries 100 VG-AnyLAN, ATM, 100 MHz Broadband Video, Voice, T1 and ISDN services on the same link.

IN THE FIELD

Structured cabling backboneJoins floor distribution panels and workstation outlets on a single uniform link.

Halogen-free safetyEmits little smoke in a fire and protects visibility and breathing along escape routes.

Long-lived installationThe shielded construction keeps the run ready for faster active equipment added later.

Usage AreasCorporate buildings·Hospitals·Shopping centers·Hotels·Cinemas·Underground metro and power plants

General Specifications

Standards

ANSI/TIA/EIA, ISO/IEC, CENELEC EN

Compliance

ANSI/EIA/TIA 568-C.2.1 Cat6A

Additional Compliance

ISO/IEC 11801 Class EA, EN 50173-1, IEC 61156-5, EN 50288-10-1

Flame Retardancy

IEC 60332-1-2

Jacket Type

LSZH (Low Smoke Zero Halogen)

Color

White (RAL9010)

Cable Length

500 m

Supported Applications

Ethernet

10Base-T, 100Base-TX, 1000Base-TX

High Speed

IEEE 802.3an 10GBase-T

Other Applications

100VG-AnyLAN, ATM (155/622 Mbps), Broadband Video (100 MHz), Voice, T1, ISDN

Warranty

Warranty Period

Lifetime Warranty (ORing Networking Structured Cabling Products)

Cable Category Comparison

Frequency

CAT5	100 MHz
CAT5e	100 MHz
CAT6	250 MHz
CAT6A	500 MHz
CAT7 (Proposed)	600 MHz

Attenuation

CAT5	22 dB
CAT5e	22 dB
CAT6	19.8 dB
CAT6A	--
CAT7 (Proposed)	20.8 dB

Impedance

CAT5	100Ω ±15%
CAT5e	100Ω ±15%
CAT6	100Ω ±15%
CAT6A	--
CAT7 (Proposed)	100Ω ±15%

CAT5	32.3 dB
CAT5e	35.3 dB
CAT6	44.3 dB
CAT6A	27.9 dB
CAT7 (Proposed)	62.1 dB

PS-NEXT

CAT5	NA
CAT5e	32.3 dB
CAT6	42.3 dB
CAT6A	--
CAT7 (Proposed)	59.1 dB

EL-FEXT

CAT5	NA
CAT5e	23.8 dB
CAT6	27.8 dB
CAT6A	9.3 dB
CAT7 (Proposed)	Not specified

PS-ELFEXT

CAT5	NA
CAT5e	20.8 dB
CAT6	24.8 dB
CAT6A	--
CAT7 (Proposed)	Not specified

PS-ANEXT

CAT5	--
CAT5e	--
CAT6	--
CAT6A	49.5 dB
CAT7 (Proposed)	--

PS-AELFEXT

CAT5	16 dB
CAT5e	20.1 dB
CAT6	20.1 dB
CAT6A	23.0 dB
CAT7 (Proposed)	14.1 dB

Return Loss

CAT5	16 dB
CAT5e	20.1 dB
CAT6	20.1 dB
CAT6A	8.0 dB
CAT7 (Proposed)	14.1 dB

Delay Skew

CAT5	NA
CAT5e	45 ns
CAT6	45 ns
CAT6A	--
CAT7 (Proposed)	20 ns

Supported Networks

CAT5	100BASE-T
CAT5e	1000BASE-T
CAT6	1000BASE-TX
CAT6A	10GBASE
CAT7 (Proposed)	Not specified

Datasheet

RW-SS06A01

1.0pdf3/1/2018
