Combines copper and combo ports in a housing built for rolling stock.

It carries 3 10/100/1000Base-T(X) ports and 2 Gigabit combo ports; the combo ports accept RJ45 copper or SFP fiber links. It meets the EN 50155 requirements and works between -40 and 70 °C in an IP-30 aluminum housing.

310/100/1000Base-T(X) RJ45 ports

2Gigabit combo ports (RJ45 / SFP)

10 GbpsSwitching Capacity

-40 to +70 °COperating Temperature

IP-30Protection Grade

Key features

9kbytes

Jumbo frame

Moves large data blocks in a single frame.

8192MAC

Address table

Keeps every client on the access layer in a single address table.

4096VLAN

Traffic separation

Defines groups and separates traffic between departments.

1024groups

IGMP multicast

Forwards broadcast traffic only to the port that requests it.

12~48VDC

Triple redundant power

The backup input takes over when the primary input drops.

820g

Aluminum housing

The body, 54.2 mm wide, fits into narrow cabinets.

IN DAILY USE

Rolling stock complianceMeets the EN 50155 requirements.

Fault notificationTriggers the relay output and writes the event to the Syslog server and to email.

Central managementSupports web interface, Telnet, console CLI and the Open-Vision utility.

Usage AreasRailway applications·Industrial automation networks·Fiber Ethernet backbone links

Physical Ports
10/100/1000Base-T(X) ports in RJ45	3
Gigabit Combo ports with 10/100/1000Base-T(X) RJ45 and 100/1000Base-X SFP ports	2
RS-232 Serial Console port	RS-232 in RJ45 connector with console cable. 9600bps, 8, N, 1
LED Indicators
Power Indicator (Power)	Green: Power LED x 3
Ring Master Indicator (R.M.)	Green: Indicates that the system is operating in O-Ring Master mode
O-Ring Indicator (Ring)	Green: Indicates that the system is operating in O-Ring mode Green Blinking: Indicates that the Ring is broken.
Fault Indicator (Fault)	Amber: Indicates unexpected event occurred
10/100/1000Base-T(X) RJ45 port indicator	Green for port Link/Act. Amber for 100Mbps indicator
100/1000Base-X SFP Port With Combo Port Indicator	Green for Link/Act indicator: On for link-up, Off for link-down, Blinking for act.
Power
Power consumption (Typ.)	10 Watts
Redundant Input power	Triple DC inputs: +12 ~ +48VDC or -12 ~ -48VDC on 7-pin terminal block, 12 ~ 45VDC on power jack
Overload current protection	Present
Reverse polarity protection	Present on terminal block
Safety
Safety	IEC/EN 62368-1
Physical Characteristic
Enclosure	IP-30 Aluminum
Dimension (W × D × H)	54.2(W) × 106.1(D) × 145.4(H) mm (2.13 × 4.18 × 5.72 inch)
Weight (g)	820 g
Technology
Ethernet Standards	IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX and 100Base-FX IEEE 802.3z for 1000Base-X IEEE 802.3ab for 1000Base-T IEEE 802.3x for Flow control IEEE 802.3ad for LACP (Link Aggregation Control Protocol) IEEE 802.1D for STP (Spanning Tree Protocol) IEEE 802.1D-2004 for RSTP:2004 (Rapid Spanning Tree Protocol 2004) IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol) IEEE 802.1s for MSTP (Multiple Spanning Tree Protocol) IEEE 802.1p for COS (Class of Service) IEEE 802.1Q for VLAN Tagging IEEE 802.1x for Authentication IEEE 802.1AB for LLDP (Link Layer Discovery Protocol)
MAC Table	8192 MAC addresses
Priority Queues	4
Processing	Store-and-Forward
Jumbo Frame	Up to 9 kbytes
Switch Properties	Switching latency: 7 µs Switching bandwidth: 10 Gbps Max. Number of Available VLANs: 4096 IGMP multicast groups: 1024 Port rate limiting: User Define
Security Features	Enable/disable ports, MAC based port security Port based network access control (802.1x) VLAN (802.1Q) to segregate and secure network traffic Radius centralized password management SNMP v1/v2c/v3 encrypted authentication and access security
Software Features	STP/RSTP/MSTP (IEEE 802.1D/w/s) Redundant Ring (O-Ring) with recovery time less than 30ms over 250 units TOS/Diffserv supported Quality of Service (802.1p) for real-time traffic VLAN (802.1Q) with VLAN tagging and GVRP supported IGMP v2/v3 (IGMP Snooping support) for multicast filtering Port configuration, status, statistics, monitoring, security PTP Client (Precision Time Protocol) clock synchronization DHCP Server / Client support Port Trunk support MVR (Multicast VLAN Registration) support Modbus TCP
Network Redundancy	O-Ring O-Chain MRP STP / RSTP / MSTP
Warning / Monitoring System	Relay output for fault event alarming Syslog server / client to record and view events Include SMTP for event warning notification via email Event selection support
Fault Contact
Relay	Relay output to carry capacity of 1A at 24VDC
Reset Function
Reset Button	5 sec: Factory default
Environmental
Storage Temperature	-40 to 85°C (-40 to 185°F)
Operating Temperature	-40 to 70°C (-40 to 158°F)
Operating Humidity	5% to 95% Non-condensing
Regulatory Approvals
Regulatory Approvals	CE EMC (EN 55024, EN 55032), FCC Part 15B, EN 50155 (EN 50121-1, EN 50121-3-2)
EMC	EN 55032, CISPR32, EN 61000-3-2, EN 61000-3-3, FCC Part 15B class A
EMI	EN 55024 (IEC/EN 61000-4-2 (ESD), IEC/EN 61000-4-3 (RS), IEC/EN 61000-4-4 (EFT), IEC/EN 61000-4-5 (Surge), IEC/EN 61000-4-6 (CS), IEC/EN 61000-4-8 (PFMF), IEC/EN 61000-4-11 (DIP))
Shock	IEC60068-2-27
Free Fall	IEC60068-2-32
Vibration	IEC60068-2-6
MTBF	601791.9803 hrs
Warranty
Warranty	5 years

Physical Ports

10/100/1000Base-T(X) ports in RJ45

Gigabit Combo ports with 10/100/1000Base-T(X) RJ45 and 100/1000Base-X SFP ports

RS-232 Serial Console port

RS-232 in RJ45 connector with console cable. 9600bps, 8, N, 1

LED Indicators

Power Indicator (Power)

Green: Power LED x 3

Ring Master Indicator (R.M.)

Green: Indicates that the system is operating in O-Ring Master mode

O-Ring Indicator (Ring)

Green: Indicates that the system is operating in O-Ring mode
Green Blinking: Indicates that the Ring is broken.

Fault Indicator (Fault)

Amber: Indicates unexpected event occurred

10/100/1000Base-T(X) RJ45 port indicator

Green for port Link/Act. Amber for 100Mbps indicator

100/1000Base-X SFP Port With Combo Port Indicator

Green for Link/Act indicator: On for link-up, Off for link-down, Blinking for act.

Power

Power consumption (Typ.)

10 Watts

Redundant Input power

Triple DC inputs: +12 ~ +48VDC or -12 ~ -48VDC on 7-pin terminal block, 12 ~ 45VDC on power jack

Overload current protection

Present

Reverse polarity protection

Present on terminal block

Safety

IEC/EN 62368-1

Physical Characteristic

Enclosure

IP-30 Aluminum

Dimension (W × D × H)

54.2(W) × 106.1(D) × 145.4(H) mm (2.13 × 4.18 × 5.72 inch)

Weight (g)

820 g

Technology

Ethernet Standards

IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX and 100Base-FX
IEEE 802.3z for 1000Base-X
IEEE 802.3ab for 1000Base-T
IEEE 802.3x for Flow control
IEEE 802.3ad for LACP (Link Aggregation Control Protocol)
IEEE 802.1D for STP (Spanning Tree Protocol)
IEEE 802.1D-2004 for RSTP:2004 (Rapid Spanning Tree Protocol 2004)
IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol)
IEEE 802.1s for MSTP (Multiple Spanning Tree Protocol)
IEEE 802.1p for COS (Class of Service)
IEEE 802.1Q for VLAN Tagging
IEEE 802.1x for Authentication
IEEE 802.1AB for LLDP (Link Layer Discovery Protocol)

MAC Table

8192 MAC addresses

Priority Queues

Processing

Store-and-Forward

Jumbo Frame

Up to 9 kbytes

Switch Properties

Switching latency: 7 µs
Switching bandwidth: 10 Gbps
Max. Number of Available VLANs: 4096
IGMP multicast groups: 1024
Port rate limiting: User Define

Security Features

Enable/disable ports, MAC based port security
Port based network access control (802.1x)
VLAN (802.1Q) to segregate and secure network traffic
Radius centralized password management
SNMP v1/v2c/v3 encrypted authentication and access security

Software Features

STP/RSTP/MSTP (IEEE 802.1D/w/s)
Redundant Ring (O-Ring) with recovery time less than 30ms over 250 units
TOS/Diffserv supported
Quality of Service (802.1p) for real-time traffic
VLAN (802.1Q) with VLAN tagging and GVRP supported
IGMP v2/v3 (IGMP Snooping support) for multicast filtering
Port configuration, status, statistics, monitoring, security
PTP Client (Precision Time Protocol) clock synchronization
DHCP Server / Client support
Port Trunk support
MVR (Multicast VLAN Registration) support
Modbus TCP

Network Redundancy

O-Ring
O-Chain
MRP
STP / RSTP / MSTP

Warning / Monitoring System

Relay output for fault event alarming
Syslog server / client to record and view events
Include SMTP for event warning notification via email
Event selection support

Fault Contact

Relay

Relay output to carry capacity of 1A at 24VDC

Reset Function

Reset Button

5 sec: Factory default

Environmental

Storage Temperature

-40 to 85°C (-40 to 185°F)

Operating Temperature

-40 to 70°C (-40 to 158°F)

Operating Humidity

5% to 95% Non-condensing

Regulatory Approvals

CE EMC (EN 55024, EN 55032), FCC Part 15B, EN 50155 (EN 50121-1, EN 50121-3-2)

EMC

EN 55032, CISPR32, EN 61000-3-2, EN 61000-3-3, FCC Part 15B class A

EMI

EN 55024 (IEC/EN 61000-4-2 (ESD), IEC/EN 61000-4-3 (RS), IEC/EN 61000-4-4 (EFT), IEC/EN 61000-4-5 (Surge), IEC/EN 61000-4-6 (CS), IEC/EN 61000-4-8 (PFMF), IEC/EN 61000-4-11 (DIP))

Shock

IEC60068-2-27

Free Fall

IEC60068-2-32

Vibration

IEC60068-2-6

MTBF

601791.9803 hrs

Warranty

5 years

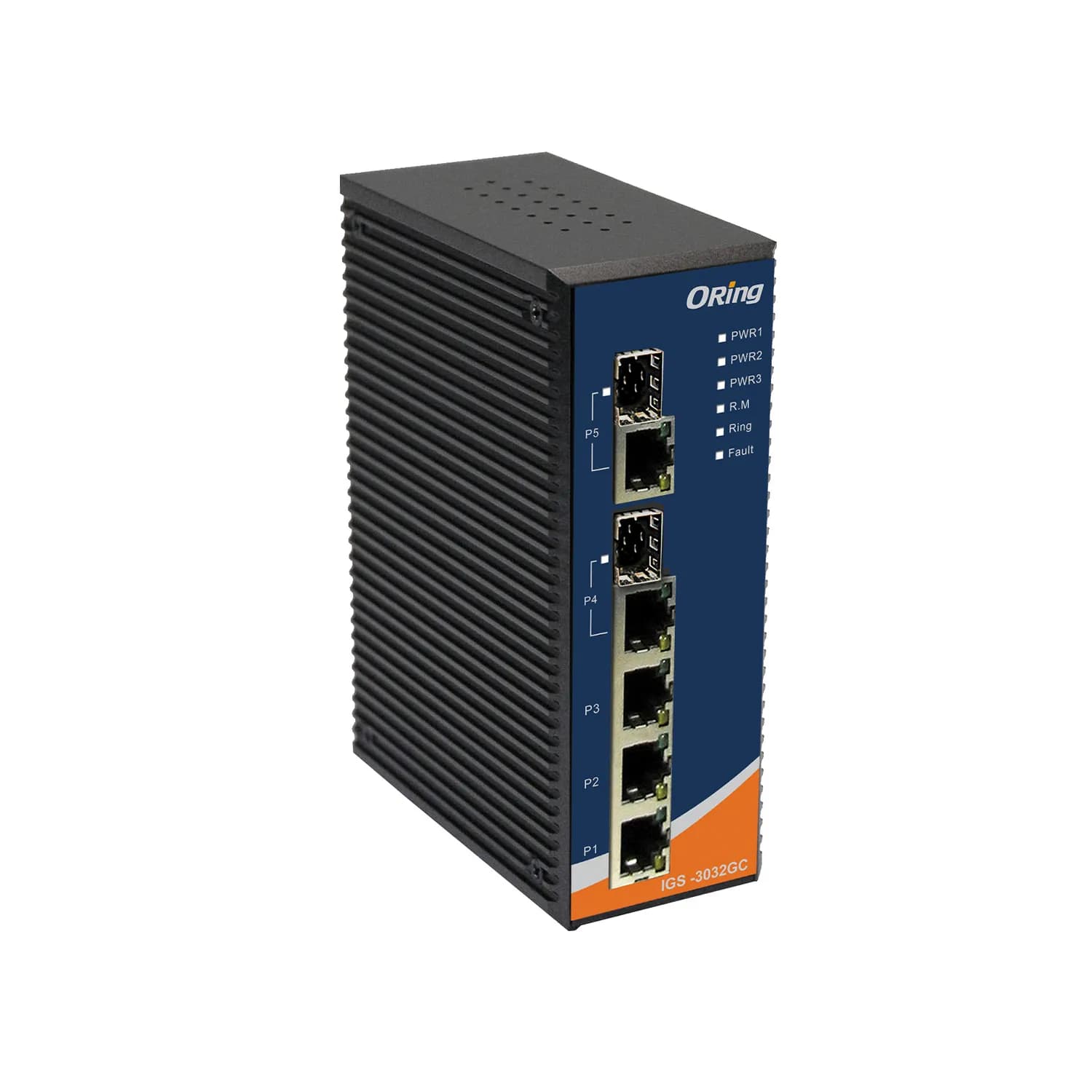

Rugged 3x 10/100/1000TX (RJ-45) + 2x 100/1000 Combo (SFP/RJ-45) (EN50155)
