Joins single-mode SC links with low insertion loss

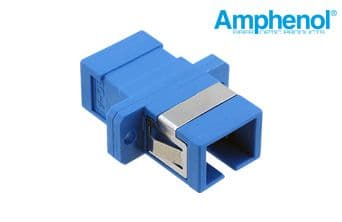

A simplex fiber optic adapter with a zirconia sleeve and an SC/PC interface. On single-mode 9/125 µm links it aligns two connectors face to face and keeps insertion loss below 0.3 dB.
SC/PCconnector type
Single-modefiber type
9/125fiber size (µm)
Simplexconfiguration
< 0.3 dBinsertion loss
Key features
< 0.3dB
Low insertion loss
Signal loss across the junction between fiber ends stays below this limit.
Zirconia
Ceramic alignment sleeve
The sleeve holds the mating connector ends on a common axis.
UL-94V-0
Flame-retardant housing
The housing, holder and dust cap are thermoplastic rated to this class.
27.4mm
Compact body
Overall length is 27.4 mm and body height is 12.8 mm.
RoHS
Material compliance
All components are RoHS compliant.
Everyday useShips with a dust capThe package holds the connector components and the dust cap.
Ready for panel mountingThe flanged body and two mounting holes fix the adapter to a panel surface.
Blue housingThe blue housing makes the adapter easy to spot inside a panel.
Dimension values include manufacturer tolerances, and insertion loss can vary with measurement conditions.
