| General |
|---|

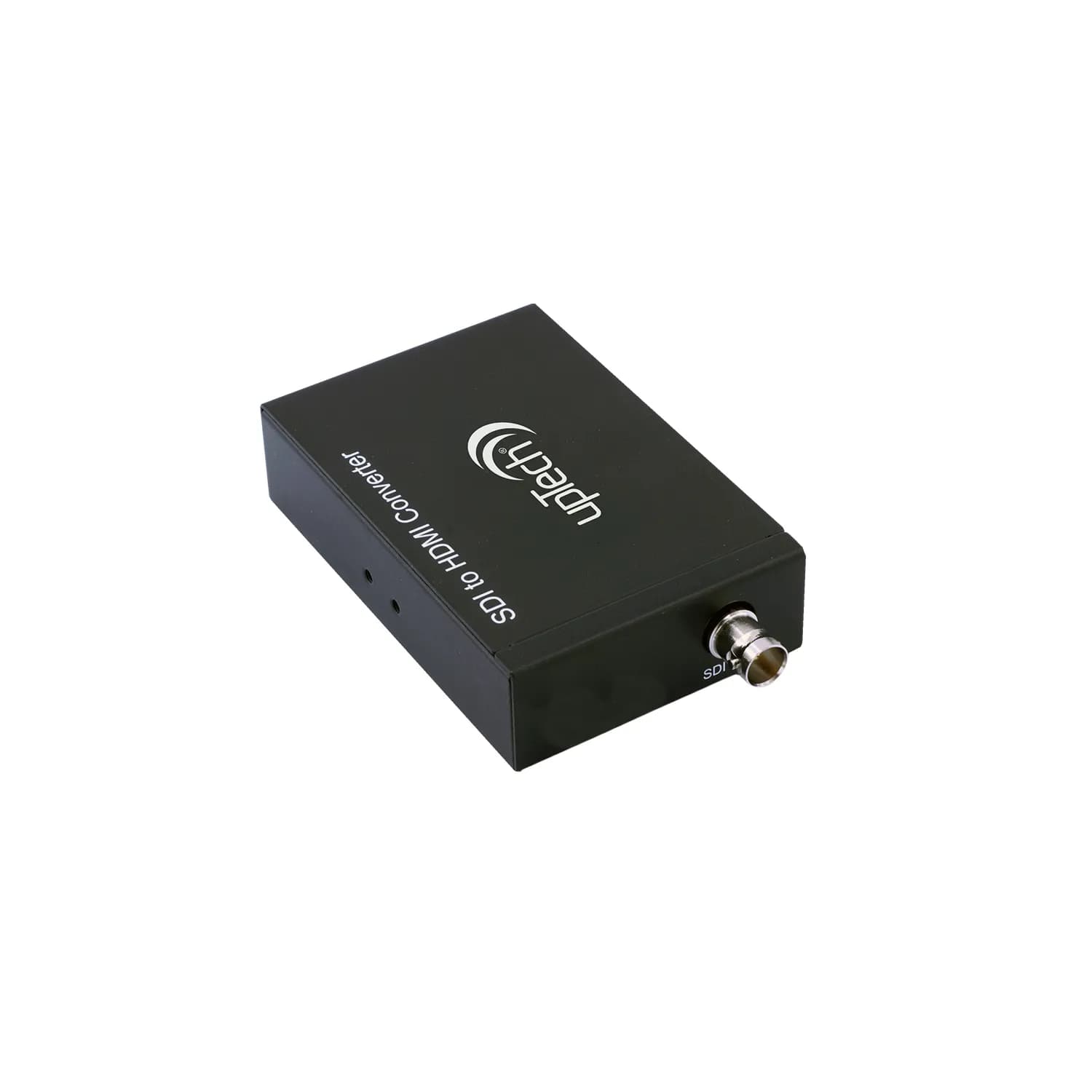

| Product Type | SDI to HDMI Converter |
| Input / Output |
|---|
| Input | SD-SDI, HD-SDI, 3G-SDI |
| Output | HDMI, SDI |
| Signal Conversion | Converts SD, SDI, HD-SDI and 3G-SDI signals for display on HDMI/SDI devices (built-in HDMI conversion module) |
| Simultaneous Viewing | Loop-Through 3G-SDI allows SDI and HDMI images to be viewed at the same time |
| Video |
|---|
| Supported Resolutions | | SD | 525i, 625i | | HD 720p | 24, 25, 30, 50, 60 | | HD 1080i | 50, 60 | | HD 1080p | 24, 25, 30, 50, 60 |
|
| Color Sampling | RGB or YCbCr 4:4:4 sampling; YCbCr 4:2:2 sampling |
| Color Depth | 8-bit, 10-bit, 12-bit (Deep Color) |
| Data Rate | 270 Mbps – 2.97 Gbps |
| Audio |
|---|
| Audio | 8-channel digital audio, 48 kHz |
| Connectivity and Power |
|---|
| Cable Distance | 300 m in SD mode, 130 m in HD mode (with RG59 or equivalent coaxial cable) |
| Signal Loss | None (zero-loss transmission) |
| SDI Output | Single-direction timed output; supports daisy-chaining |
