Carries RF up to 18 GHz on a printed circuit board

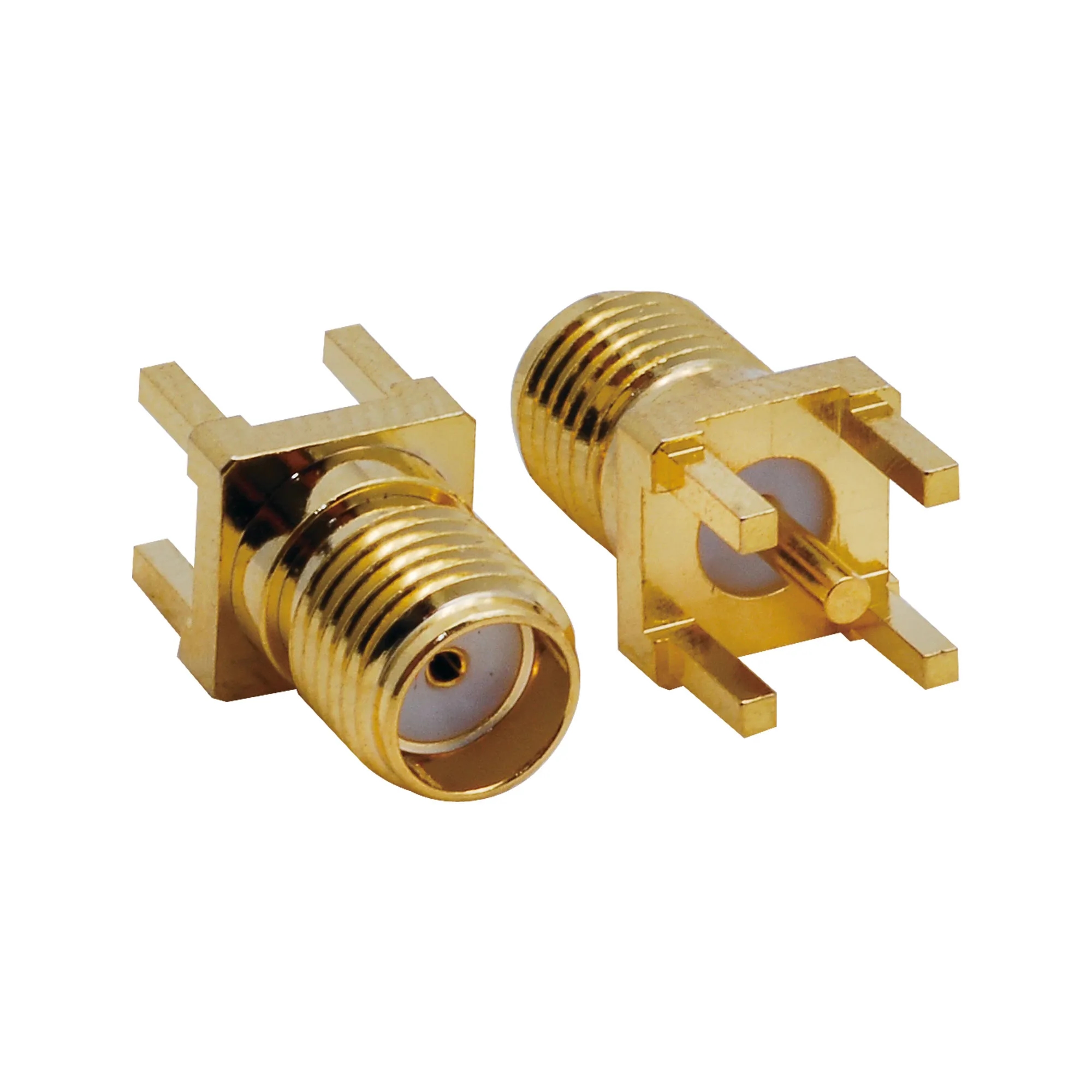

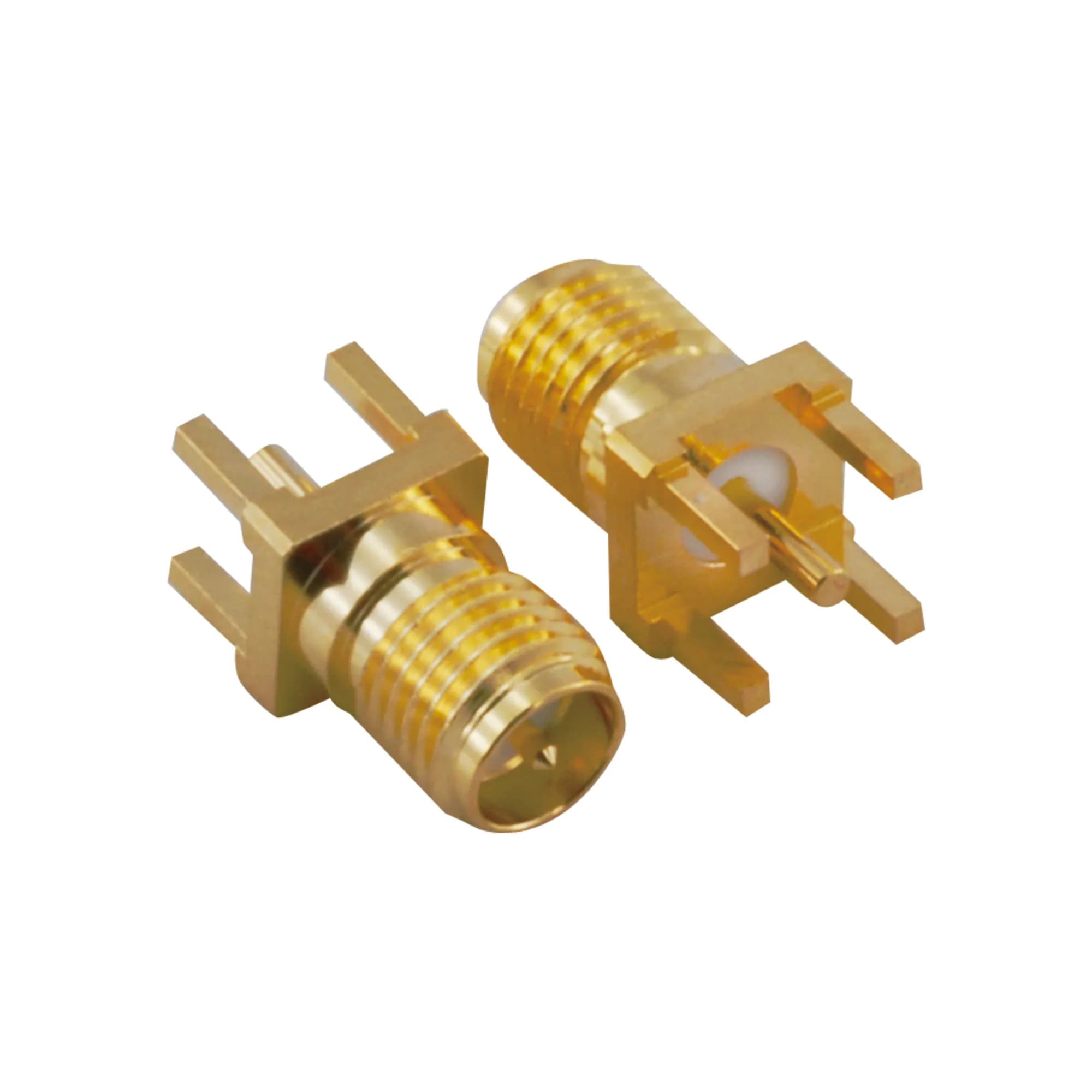

A PCB-type connector with a straight body and a female SMA interface. Its subminiature body takes little room on the board and carries a 50 Ω line from DC up to 18 GHz.
SMA femaleConnector Type
50 ΩImpedance
0 - 18 GHzFrequency Range
1.3 maxVSWR
0.06 dB @ 6 GHzInsertion loss
Key features
ImpedanceIt connects directly to 50 Ω RF lines.
Frequency rangeIt operates from DC up to 18 GHz.
VSWRThe straight body works with a standing wave ratio of 1.3 at most.
Insertion lossInsertion loss stays at 0.06 dB max at 6 GHz.
Body styleA straight PCB-type female connector.

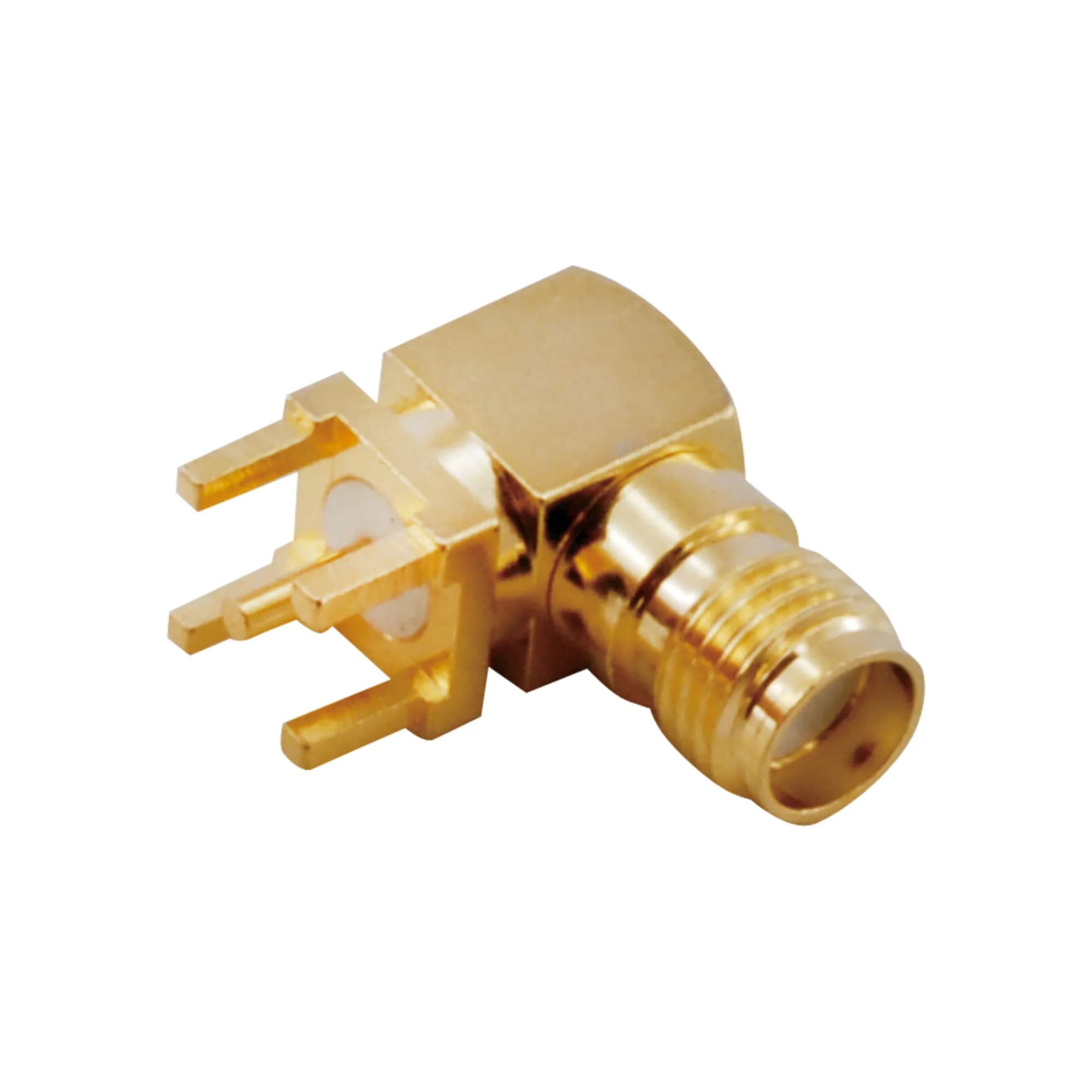

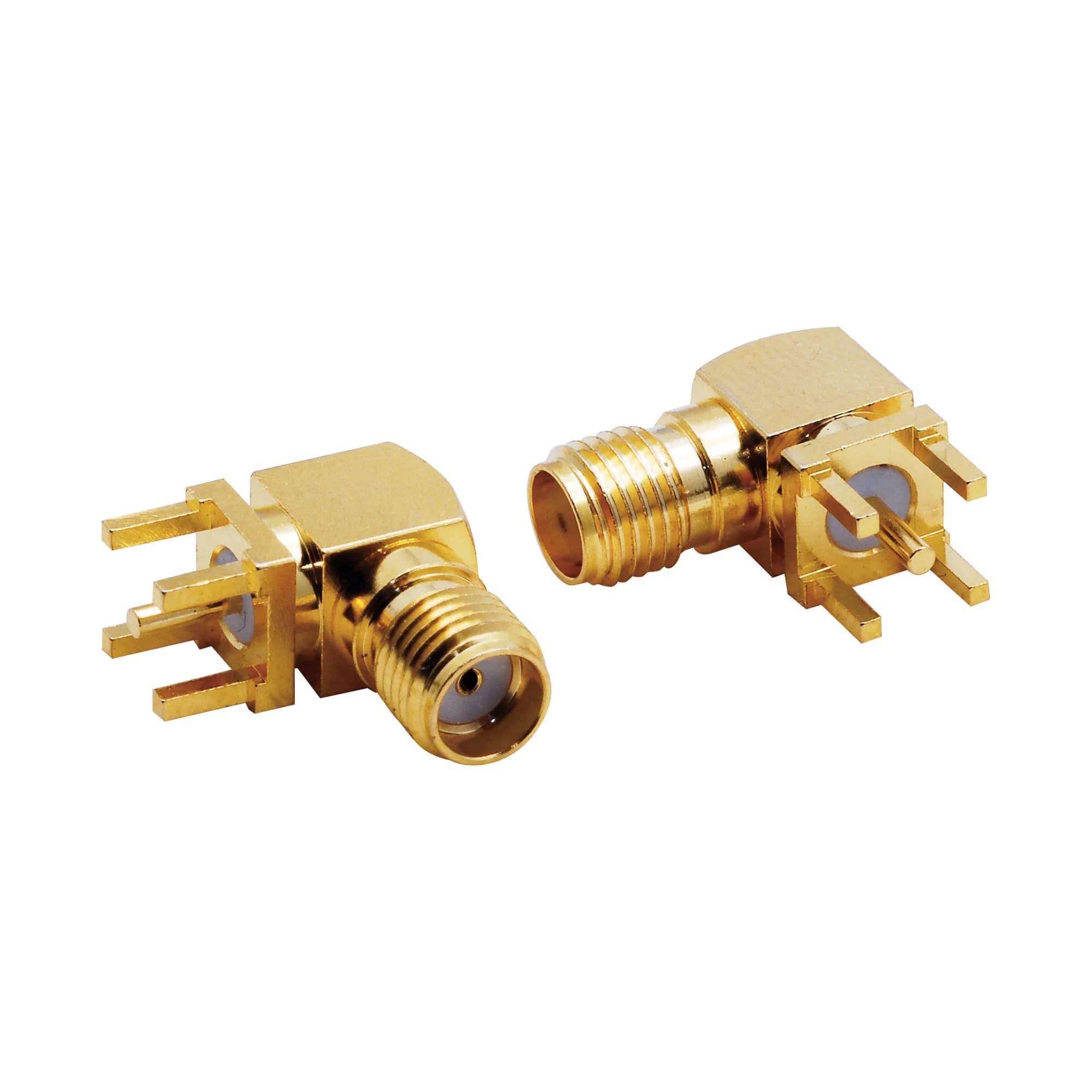

The VSWR limit depends on the body style: 1.3 for the straight version and 1.5 for the right angle version.
