Carries the camera on the wall and hides its cable underneath the body.

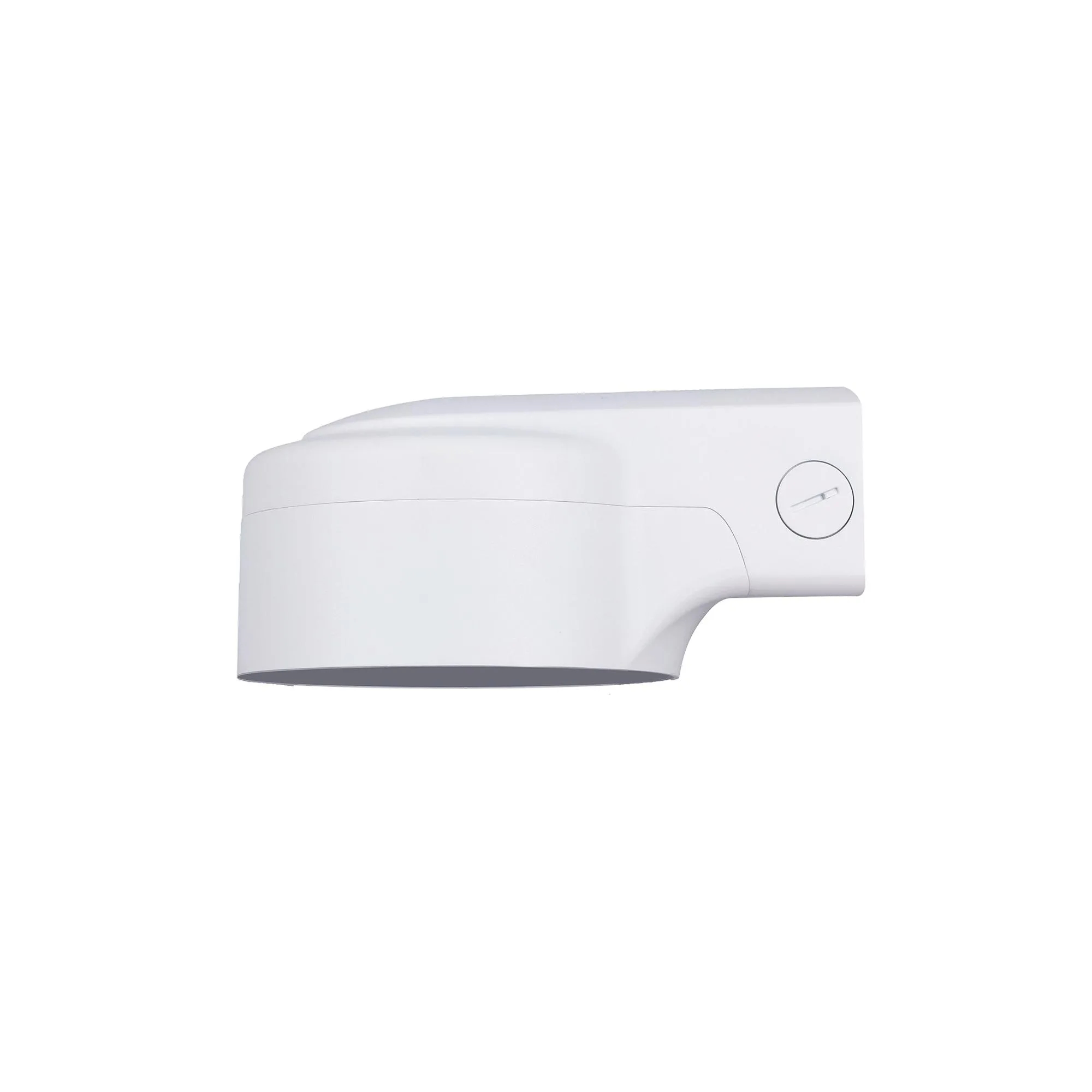

This aluminum wall bracket carries a camera on a flat surface and holds a load of up to 3.0 kg. The fast loading structure shortens the installation, and the space under the body keeps the cable out of sight.
BodyThe aluminum body measures 229.7 mm × 168.7 mm × 113.2 mm in white, and its integrated design keeps a clean line on the wall.
InstallationThe fast loading structure seats the bracket on the wall in a short time.
CablingThe space under the body hides the cable, and two G3/4 out-holes take it outside.
SafetyThe bracket arrives with a safety rope hook attached.
Operating conditionsIt works at –40 °C to +60 °C and 90% relative humidity.
