Reads motion from the ceiling at a wide angle.

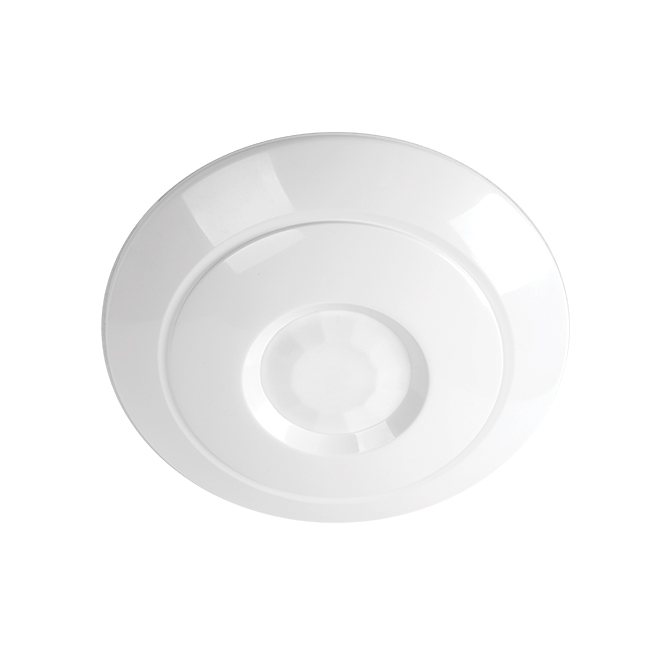

A ceiling-mounted PIR motion detector that scans a 6 m range across a 360° angle. It works at heights of 2.5–6 m and draws 20 mA, which suits low-power alarm loops.
6 m / 360°Detection range and angle
2.5–6 mInstallation height
9–16 V DCOperating voltage
20 mAOperating current
-10°C ~ +50°COperating Temperature
Ceiling mountInstallation Type
360° coverageScans a 6 m range across a full 360° angle from the ceiling.
Low-power processorAn 8 bit low-power CMOS processor runs on 20 mA.
Pulse optionsThree digital pulse settings set the alarm delay to 5, 10 or 30 seconds.
Interference protectionResists RFI interference in the 20-1000 MHz band.
Temperature compensationAutomatic temperature compensation prevents false alarms.
White light immunityStays stable under white light up to 6500 LUX.
