Measures cable length and runs PoE and PING tests on the same screen.

A test set that checks network, coaxial and telephone cables from a single device. It measures length, open circuits, shorts and crossed pairs, while tone tracing and port flash find the cable inside a bundle. Installation and maintenance teams resolve the line on site.

2000 mTest cable range

130 KHzTone frequency

320 x 240Color LCD

RJ11 · RJ45 · BNCCompatible connectors

8 pcsRemote units

Key features

2000m

Length and fault distance

It measures the length of network, coaxial and telephone cable and shows the distance to a break.

8remote units

Continuity across many lines

Numbered remote units show the continuity of eight cables one by one in a single pass.

160set

Records the measurement

The TF card stores 160 measurement sets in txt format and transfers them to a computer.

0-50cm

Stepped sensitivity setting

Receiver sensitivity works in steps and narrows the search area inside a crowded bundle.

IN THE FIELD

Finds the port by blinkingThe hub blink function flashes the port light on a switch, so the technician sees the right port.

Readable in the darkThe color display and the lighting lamp keep the result readable inside a cable cabinet.

Warns on low voltageIt sounds an alarm when the battery runs low, and the delayed automatic shutdown saves power.

Specifications

LCD Display

60x45mm

Tone Frequency

130 KHz

Test Cable Range

<2000m

Tracking Cable Connected to Switch

AC Filter

Tone Mode

2 tone, adjustable

Compatible Connectors

RJ11, RJ45, BNC, PING/PoE

Battery Type

Lithium battery

Dimensions (LxWxD)

185x80x32mm

Frequency

130KHz

Max. Working Current

Less than 70mA

Earphone Input

LED Lighting

2 LEDs

Battery Type

Lithium battery

Dimensions (LxWxD)

218x46x29mm

Compatible Connectors

RJ11, RJ45, BNC

Dimensions (LxWxD)

107x30x24mm

Remote Units

8 pcs

Included Accessories

Built-in Lithium battery x 2 pcs

Carrying bag x 1 pc

Gift box x 1 pc

Charger adapter x 1 pc

Telephone line adapter x 1 pc

Network cable adapter x 1 pc

Cable clips x 1 pc

TF memory card x 1 pc

Measures cable length and runs PoE and PING tests on the same screen.

2000 mTest cable range

130 KHzTone frequency

320 x 240Color LCD

RJ11 · RJ45 · BNCCompatible connectors

8 pcsRemote units

Key features

2000m

Length and fault distance

It measures the length of network, coaxial and telephone cable and shows the distance to a break.

8remote units

Continuity across many lines

Numbered remote units show the continuity of eight cables one by one in a single pass.

160set

Records the measurement

The TF card stores 160 measurement sets in txt format and transfers them to a computer.

0-50cm

Stepped sensitivity setting

Receiver sensitivity works in steps and narrows the search area inside a crowded bundle.

IN THE FIELD

Finds the port by blinkingThe hub blink function flashes the port light on a switch, so the technician sees the right port.

Readable in the darkThe color display and the lighting lamp keep the result readable inside a cable cabinet.

Warns on low voltageIt sounds an alarm when the battery runs low, and the delayed automatic shutdown saves power.

Specifications

LCD Display

60x45mm

Tone Frequency

130 KHz

Test Cable Range

<2000m

Tracking Cable Connected to Switch

AC Filter

Tone Mode

2 tone, adjustable

Compatible Connectors

RJ11, RJ45, BNC, PING/PoE

Battery Type

Lithium battery

Dimensions (LxWxD)

185x80x32mm

Frequency

130KHz

Max. Working Current

Less than 70mA

Earphone Input

LED Lighting

2 LEDs

Battery Type

Lithium battery

Dimensions (LxWxD)

218x46x29mm

Compatible Connectors

RJ11, RJ45, BNC

Dimensions (LxWxD)

107x30x24mm

Remote Units

8 pcs

Included Accessories

Built-in Lithium battery x 2 pcs

Carrying bag x 1 pc

Gift box x 1 pc

Charger adapter x 1 pc

Telephone line adapter x 1 pc

Network cable adapter x 1 pc

Cable clips x 1 pc

TF memory card x 1 pc

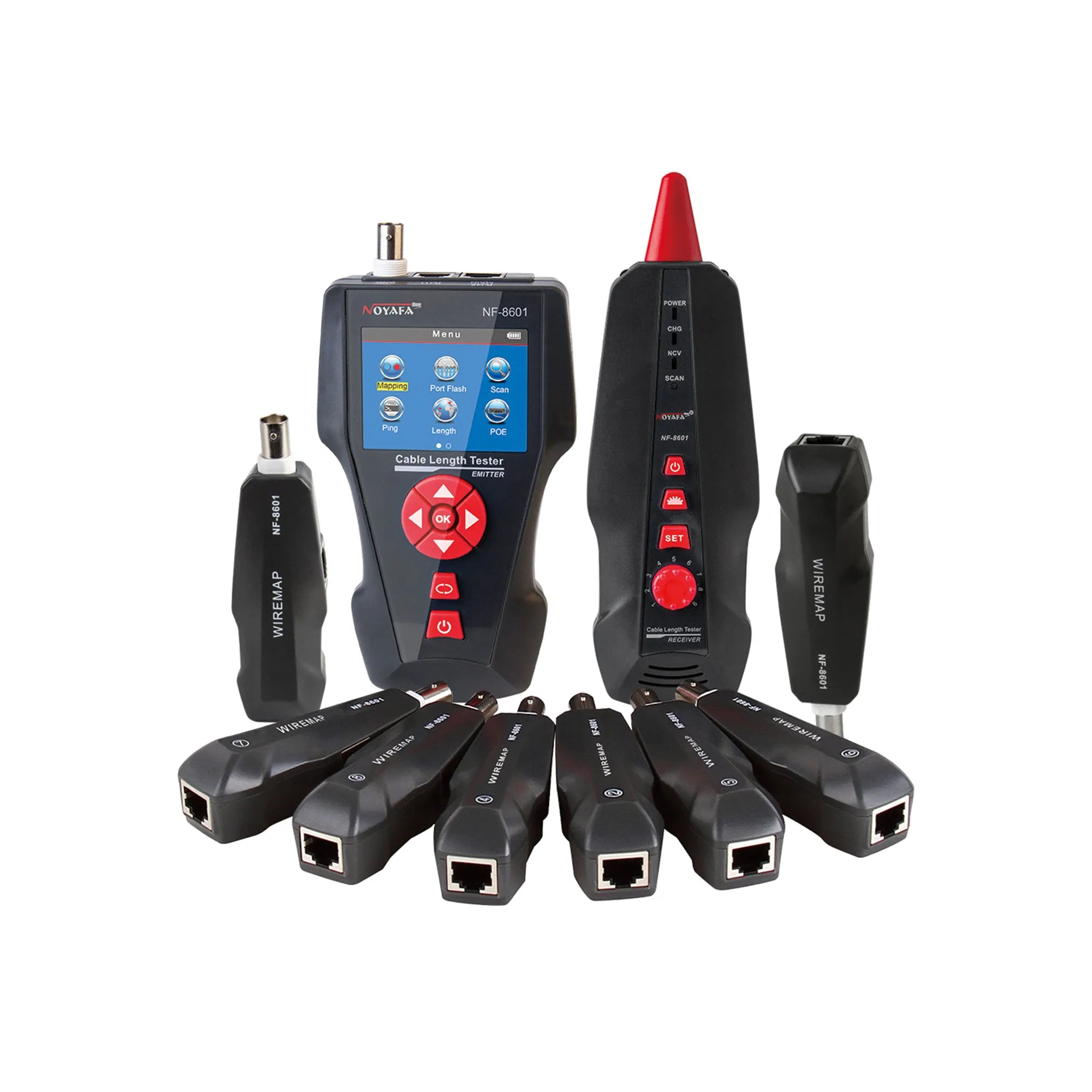

Cable Tester with PoE Ping Functions for Network, BNC Coaxial, and Telephone Cables
