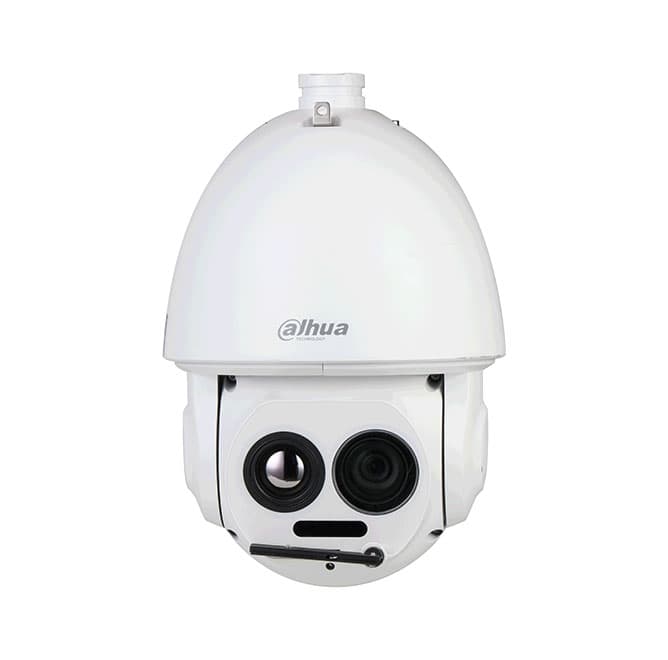

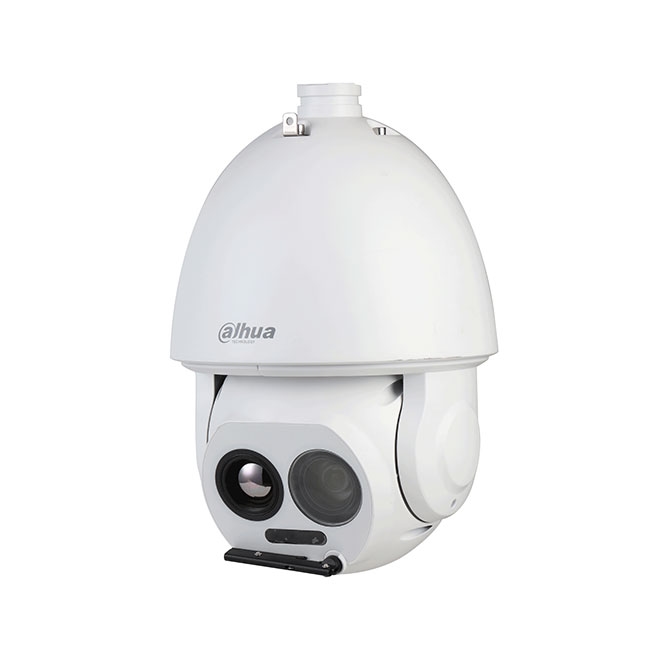

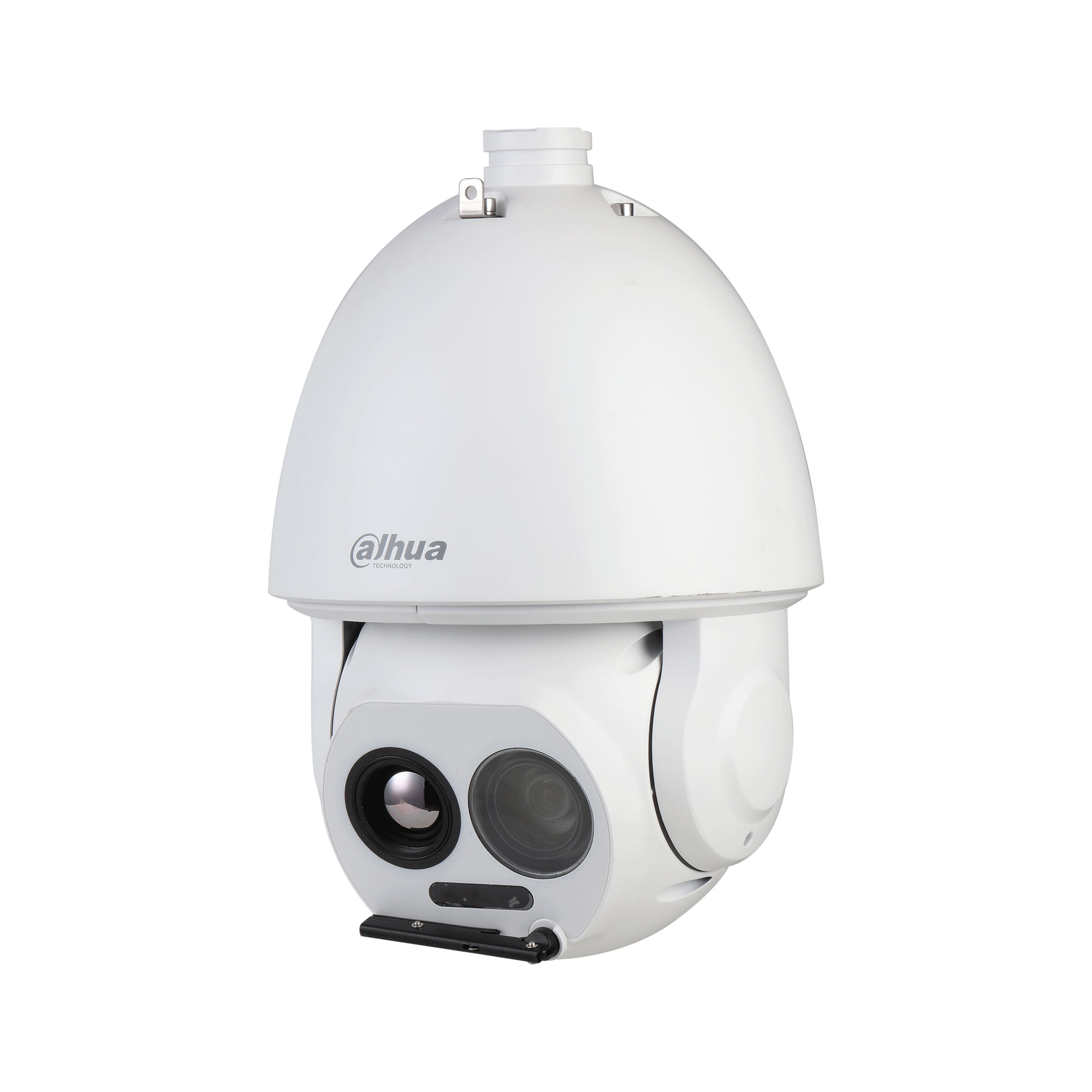

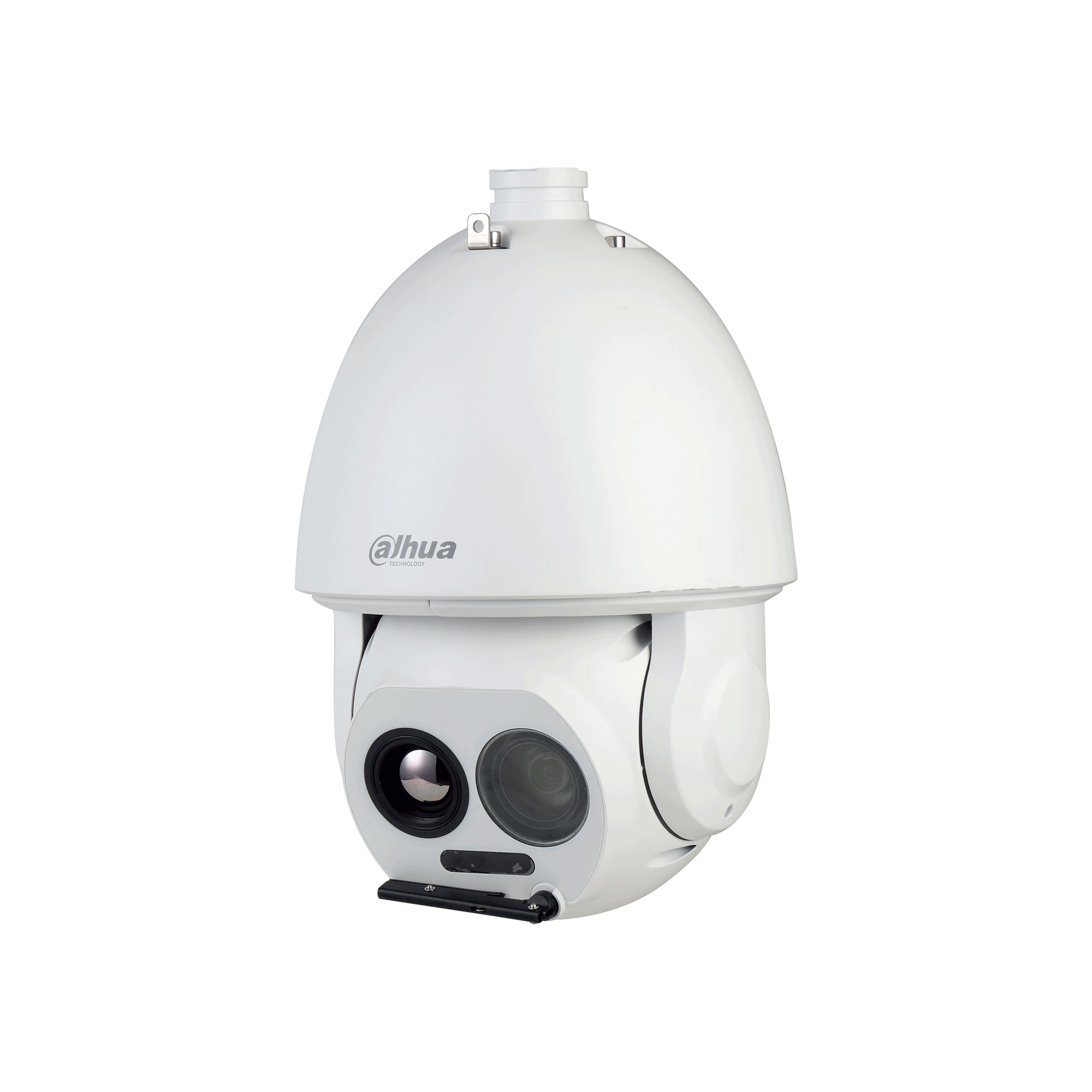

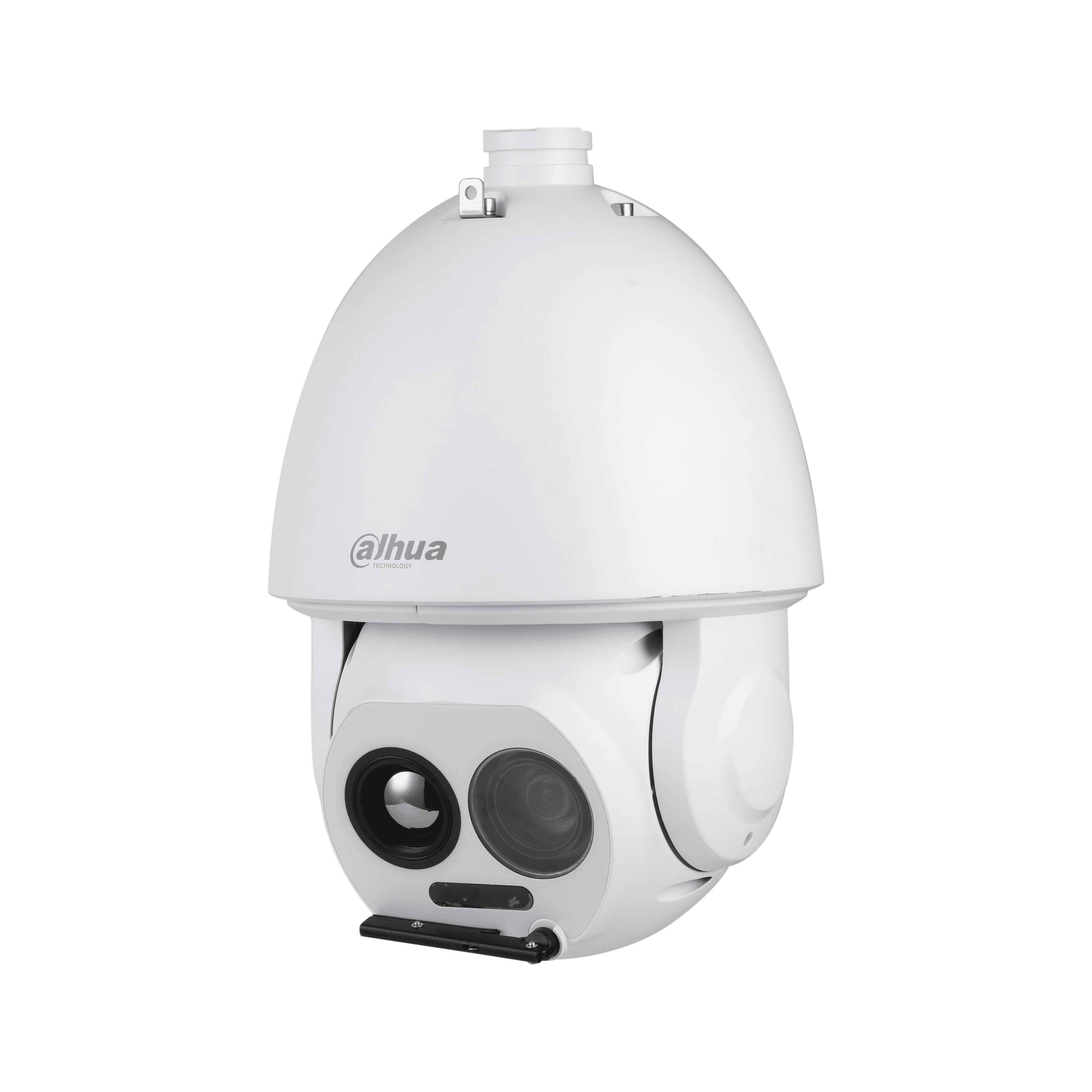

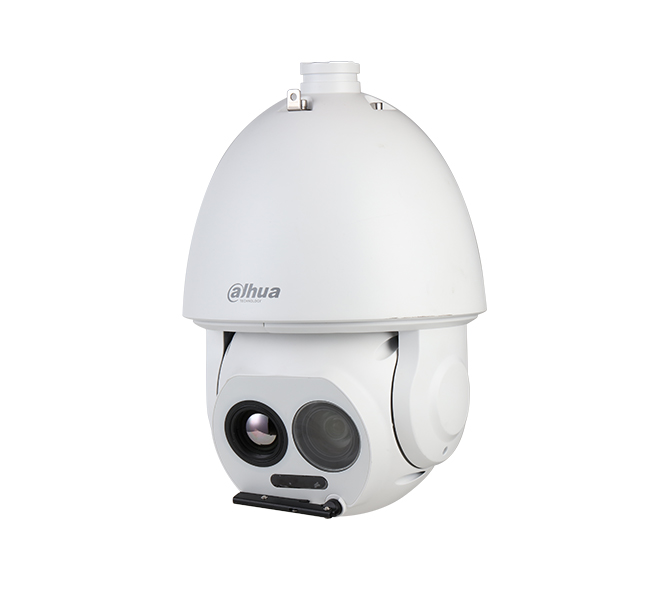

Name: Thermal Hybrid Speed Dome Camera
Brand: Dahua
SKU: TPC-SD5441

A single-housing PTZ camera that reads a scene by heat and by color.

The vanadium oxide detector maps heat through darkness and haze, while the 4 MP visible camera shows the same scene in color. The camera fuses both images, separates people from vehicles and triggers an alarm on a tripwire crossing. The IP66 housing runs outdoors from –30 °C to +60 °C.

4 MPVisible camera resolution

1/2.8" CMOSSensor

45×Optical zoom

100 mIR LED Distance

IP66Protection Grade

512 GBMicro SD card

Key features

45×

Optical zoom

The visible lens brings a distant target into close view at the tele end.

100m

Infrared illumination

The illuminator shows the scene up to 100 m in the dark.

360°

Endless pan

It turns a full circle horizontally and tilts between –10° and +90°.

18palettes

Thermal color palettes

It switches between palettes such as white hot, iron red and fusion.

200presets

Position memory

It stores frequently watched points; 8 tours step through 32 presets each.

512GB

Local recording

A micro SD card keeps footage on the camera itself.

IN DAILY USE

One camera, day and nightThe thermal view works in the dark and the visible camera carries detail by day.

Tells real intrusions apartTripwire and intrusion rules separate people from vehicles and cut false alarms.

Made for rough weatherIn rain and dust the IP66 housing protects the electronics.

Usage AreasPerimeter protection and border monitoring·Port and coastline surveillance·Heat source and fire risk monitoring

Thermal

Detector Type

Vanadium oxide uncooled focal plane detector

Effective Pixels

400 (H) × 300 (V)

Pixel Pitch

17 µm

Spectral Range

8 µm–14 µm

Sensitivity (NETD)

<35 mK (@f/1.0)

Focal Length

13 mm; 19 mm; 25 mm; 35 mm; 50 mm

Field of View

13 mm: H: 30.2°; V: 22.6°
19 mm: H: 20.3°; V: 15.3°
25 mm: H: 15.5°; V: 11.7°
35 mm: H: 11.1°; V: 8.3°
50 mm: H: 7.8°; V: 5.8°

Thermal Focus Control

Fixed-focal

Detection Distance

13 mm: Vehicle: 1,020 m (3,346.46 ft); Human: 382 m (1,253.28 ft)
19 mm: Vehicle: 1,490 m (4,888.45 ft); Human: 559 m (1,833.99 ft)
25 mm: Vehicle: 1,961 m (6,433.73 ft); Human: 735 m (2,411.42 ft)
35 mm: Vehicle: 2,745 m (9,005.91 ft); Human: 1,029 m (3,375.98 ft)
50 mm: Vehicle: 3,922 m (12,867.45 ft); Human: 1,471 m (4,826.12 ft)

Recognition Distance

13 mm: Vehicle: 255 m (836.61 ft); Human: 98 m (321.52 ft)
19 mm: Vehicle: 373 m (1,223.75 ft); Human: 144 m (472.44 ft)
25 mm: Vehicle: 490 m (1,607.61 ft); Human: 181 m (593.83 ft)
35 mm: Vehicle: 686 m (2,250.66 ft); Human: 265 m (869.42 ft)
50 mm: Vehicle: 980 m (3,215.22 ft); Human: 378 m (1,240.16 ft)

Identification Distance

13 mm: Vehicle: 128 m (419.95 ft); Human: 49 m (160.76 ft)
19 mm: Vehicle: 186 m (610.24 ft); Human: 72 m (236.22 ft)
25 mm: Vehicle: 245 m (803.81 ft); Human: 95 m (311.68 ft)
35 mm: Vehicle: 343 m (1,125.33 ft); Human: 132 m (433.07 ft)
50 mm: Vehicle: 490 m (1,607.61 ft); Human: 189 m (620.08 ft)

Digital Detail Enhancement (DDE)

Yes

Digital Zoom

19 levels

Thermal AGC

Auto/Manual

Thermal Noise Reduction

2D NR/3D NR

Image Flip

180°

Color Palettes

18 (white hot / black hot / fusion / rainbow / golden autumn / midday / iron red / amber / jade / sunset / icefire / painting / pomegranate / emerald / spring / summer / autumn / winter)

Visible

Image Sensor

1/2.8" CMOS

Max. Resolution

2688 (H) × 1520 (V)

Pixel

4 MP

Horizontal Definition

Center ≥ 1200 TVL
Edge ≥ 900 TVL

Min. Illumination

Color: 0.01 lux
Black & white: 0.001 lux
0 lux (IR on)

Visible AGC

Auto/Manual

Visible Noise Reduction

2D NR/3D NR

S/N Ratio

≥55 dB

White Balance

Auto; manual; indoor; outdoor; tracking; sodium lamp; street lamp; natural

Defog

Electronic defog

Electronic Shutter Speed

1 s–1/30,000 s (auto/manual)

BLC

Yes

WDR

Yes

HLC

Yes

Day/Night

Auto (ICR); Color; B/W

Iris Control

Auto

Image Flip

180°

Exposure Compensation

Yes

Visible Focus Control

Manual

Focal Length

3.95 mm–177.75 mm

Field of View

H: 67.5°–1.9°
V: 39.4°–1.1°

Close Focus Distance

1 m–10 m (3.28 ft–32.81 ft)

Illuminator On/Off Control

Auto/Manual

Illumination Distance

100 m (328.08 ft)

Audio and Video

Video Compression

H.265; H.264M; H.264H; H.264B

Resolution

Thermal:
Main stream: 1280 × 1024; 1280 × 720; 640 × 512; 1280 × 1024 (default)
Sub stream: 640 × 512; 320 × 256; 640 × 512 (default)
Visible:
Main stream: 2688 × 1520 (optional); 2560 × 1440; 1080p (1920 × 1080); 1280 × 720; 704 × 576; 2560 × 1440 (default)
Sub stream: 1920 × 1080; 1280 × 720; 704 × 576

Video Frame Rate

Thermal:
50 Hz: (main stream) 1 fps–50 fps adjustable, 50 fps by default; (sub stream) 1 fps–25 fps adjustable, 15 fps by default
60 Hz: (main stream) 1 fps–60 fps adjustable, 60 fps by default; (sub stream) 1 fps–30 fps adjustable, 15 fps by default
Visible:
50 Hz: (main stream) 1 fps–25 fps adjustable, 25 fps by default; (sub stream) 1 fps–25 fps adjustable, 15 fps by default
60 Hz: (main stream) 1 fps–30 fps adjustable, 30 fps by default; (sub stream) 1 fps–30 fps adjustable, 15 fps by default

Audio Compression

G.711a; G.711mu

Image Encoding Format

JPEG

PTZ

Pan/Tilt Range

Pan: 0° to 360° endless
Tilt: –10° to +90°

Manual Control Speed

Pan: 0.1°/s to 200°/s
Tilt: 0.1°/s to 120°/s

Preset Speed

Pan: 240°/s
Tilt: 200°/s

Preset

200

Tour

8 (up to 32 presets per tour)

Pattern

Scan

Power-off Memory

Yes

Privacy Masking

4 areas in the same view

Idle Motion

Preset; auto pattern; auto tour; pan; progressive scan

Function

Two-way Audio

Yes

Network Protocol

HTTP; HTTPS; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; SNMP; QoS; UPnP; NTP; Multicast; SFTP; 802.1x

Region of Interest (RoI)

Yes

Storage

Micro SD card

Micro SD Card (Max.)

512 GB

Interoperability

ONVIF; CGI; Dahua SDK

Browser

IE: IE8 and later
Chrome: 42 and earlier
Firefox: 42 and earlier

User/Host

Up to 20 (total bandwidth: 64 MB)

Security

Authorized username and password; attached MAC address; encrypted HTTPS; IEEE 802.1x; controlled network access

User Management

Up to 20 users; supports multi-level user permissions (2 levels): management group and user group

Malfunction Detection

Network disconnection detection; IP conflict detection; memory card state detection; memory space detection

PIP

Yes (Intelligence automatically turns off when PIP is on)

Intelligence

Heat Detection

Yes

Cold/Hot Spot Trace

Yes

IVS (Perimeter Protection)

Yes. Supports tripwire and intrusion.

Target Distinction

Human/Vehicle Classification

Port

Analog Output

1 × CVBS output; BNC port

Network Port

1 × RJ-45 (10/100 Base-T)

Alarm Input

Alarm Output

Audio Input

Audio Output

RS-485

Power

Power Supply

36 VDC ± 50%, Hi-PoE

Power Consumption

Basic: ≤21 W (36 VDC); 16 W (PoE)
Max: ≤40 W (36 VDC); 41 W (PoE)

Environment

Operating Temperature

–30 °C to +60 °C (–22 °F to +140 °F)

Operating Humidity

≤95%

Storage Temperature

–30 °C to +70 °C (–22 °F to +158 °F)

Physical Characteristics

Protection

IP66

Reliability

Surge protection: 6 kV
Air discharge: 15 kV
Contact discharge: 8 kV

Structure

Product Dimensions

Φ240 mm × 382 mm (Φ9.45" × 15.04")

Packaging Dimensions

319 mm × 319 mm × 521 mm (12.56" × 12.56" × 20.51") (L × W × H)

Net Weight

≤8 kg (17.64 lb)

Gross Weight

≤10 kg (22.05 lb)

Heat Detection Distance

Focal Length	Max. Distance
13 mm	780 m (2,559.06 ft)
19 mm	1,140 m (3,740.16 ft)
25 mm	1,500 m (4,921.26 ft)
35 mm	2,100 m (6,889.76 ft)
50 mm	3,000 m (9,842.52 ft)

Perimeter Protection Distance

Focal Length	Distance (Human)	Distance (Vehicle)
13 mm	91 m (298.56 ft)	273 m (895.67 ft)
19 mm	133 m (436.35 ft)	399 m (1,309.06 ft)
25 mm	175 m (574.15 ft)	525 m (1,722.44 ft)
35 mm	245 m (803.81 ft)	735 m (2,411.42 ft)
50 mm	350 m (1,148.29 ft)	1,050 m (3,444.88 ft)
