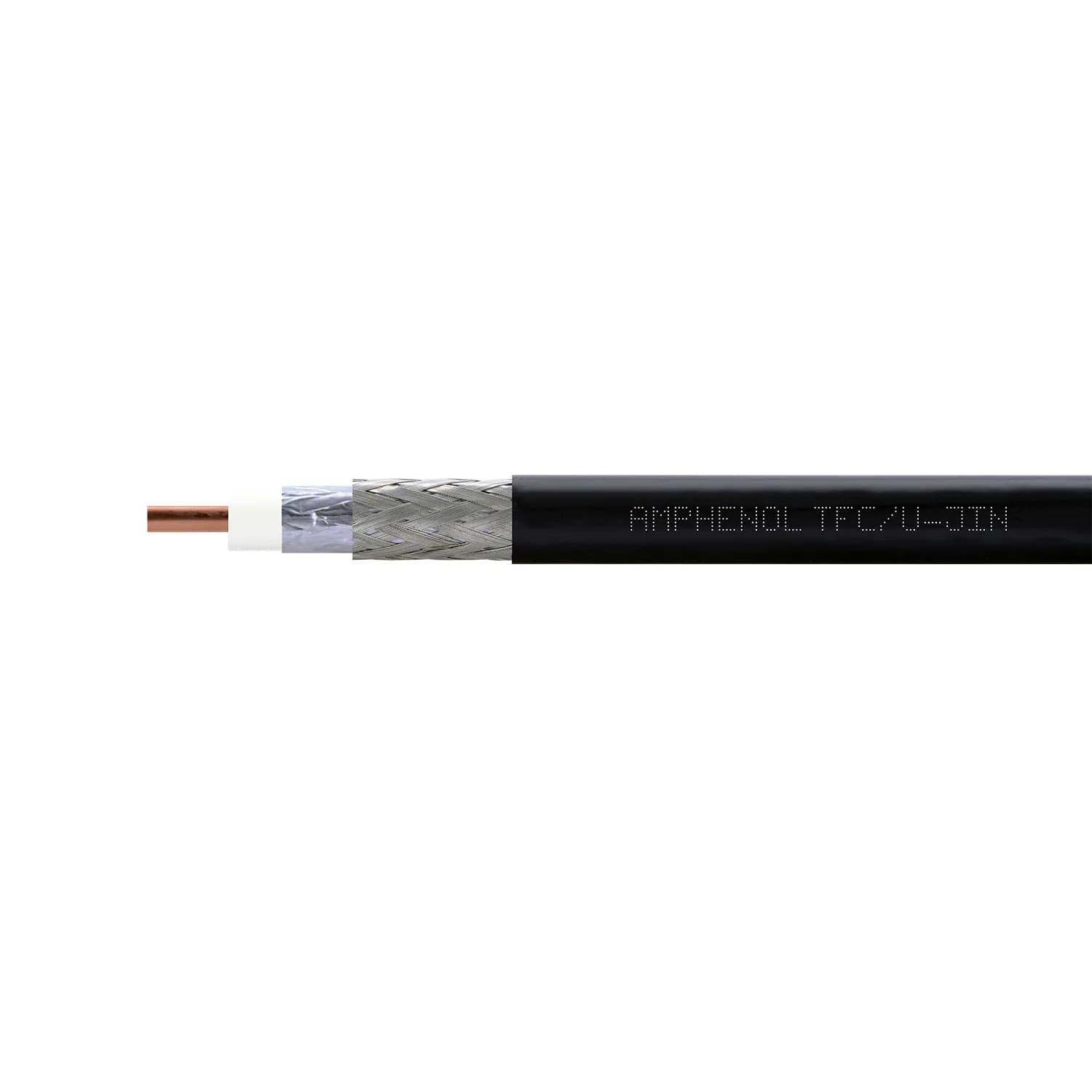

A 50 Ω feeder cable with a copper-clad aluminum inner conductor, rated for the 30 ~ 6000 MHz band. Its thick body keeps loss low over long wireless communication runs.
3.30kW
Power handled at the low band
Average power is 3.30 kW at 30 MHz and drops as the frequency climbs.
2.30dB
Loss across the low band
At 30 MHz the loss over 100 meters is 2.30 dB, climbing to 12.80 dB at 900 MHz.
2.77mm
Copper-clad aluminum inner conductor
The inner conductor is 2.77 mm copper-clad aluminum wire and shows 4.6 Ω/km at 20°C.
8.05mm
Two-layer shielding
A 90% tinned copper braid sits over the sealed APA tape and closes at 8.05 mm.
6000MHz
Top of the operating band
The operating band starts at 30 MHz and reaches up to 6000 MHz.
25.40mm
Pulling through tight bends
The minimum bend radius is 25.40 mm, and the cable should not go tighter than that in duct turns.
