Holds the coaxial connection in place under vibration.

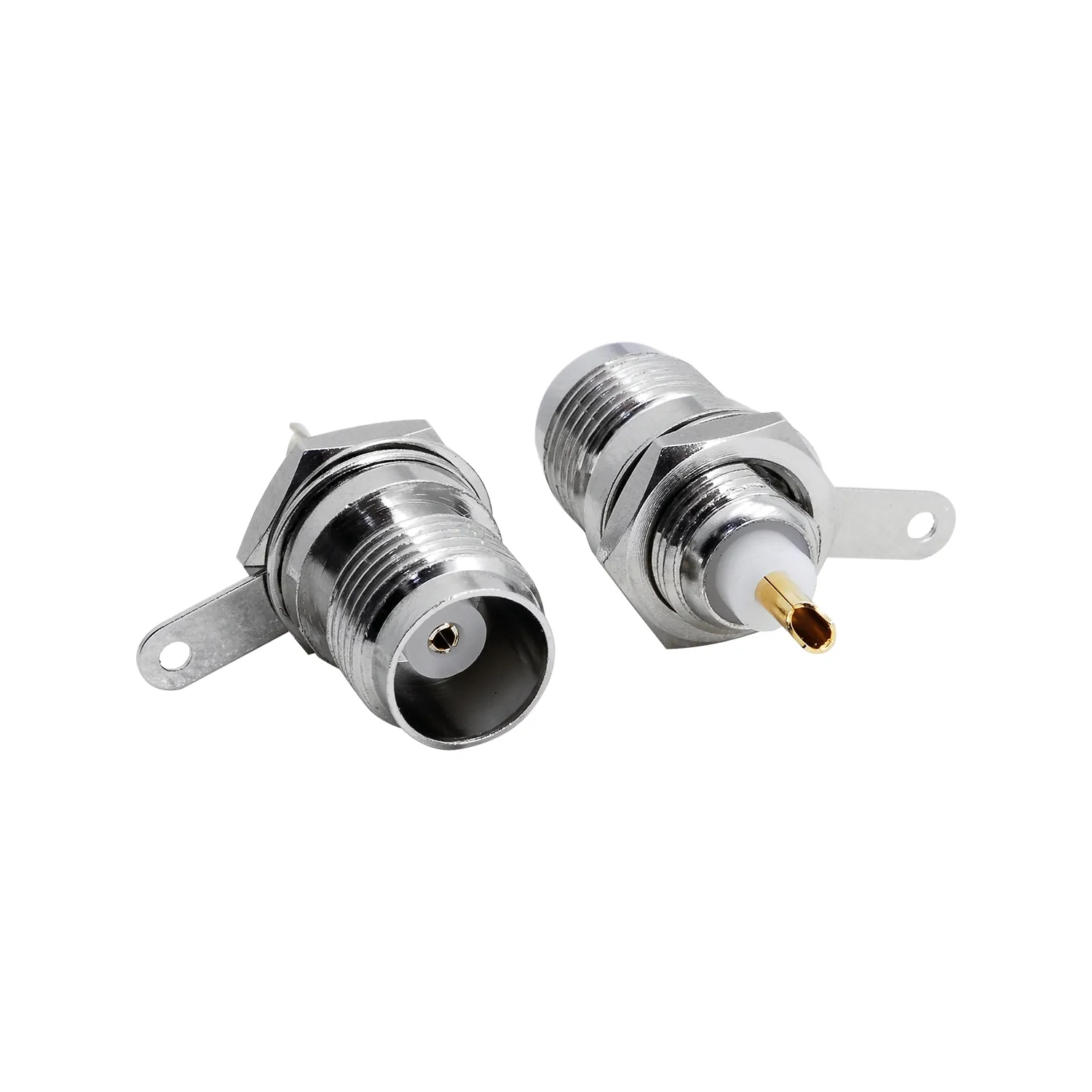

A TNC female connector for chassis mounting. Its threaded coupling nut locks the connection in applications where vibration matters, and it works on a 50 Ω line across the 0 - 11 GHz range.
50 ΩImpedance
0 - 11 GHzFrequency Range
FemalePlug Type
CrimpCable Termination
NickelBody Plating
Key features
Threaded nutThe coupling nut tightens onto the mating end and locks the connector.
Chassis mountingIt sits on the panel surface and brings the cable entry outside.
Frequency rangeIt operates in the 0 - 11 GHz band.
Insertion lossInsertion loss stays at 0.2 dB max at 3 GHz.
VSWRThe ratio stays at 1.3 max on the straight body and 1.35 on the right-angle body.
