A 2-meter 10 Gigabit patch cord that lights up its own ends

This U/FTP CAT7 patch cord carries the short in-rack link at 10GBase-T speed. The LED Eye indicator on both ends points out the far end among dense ports.

CAT7Cable Type

600 MHzFrequency

26AWGCable Thickness

2 mLength

LSZHJacket Material

White (RAL9010)Cable Color

Key features

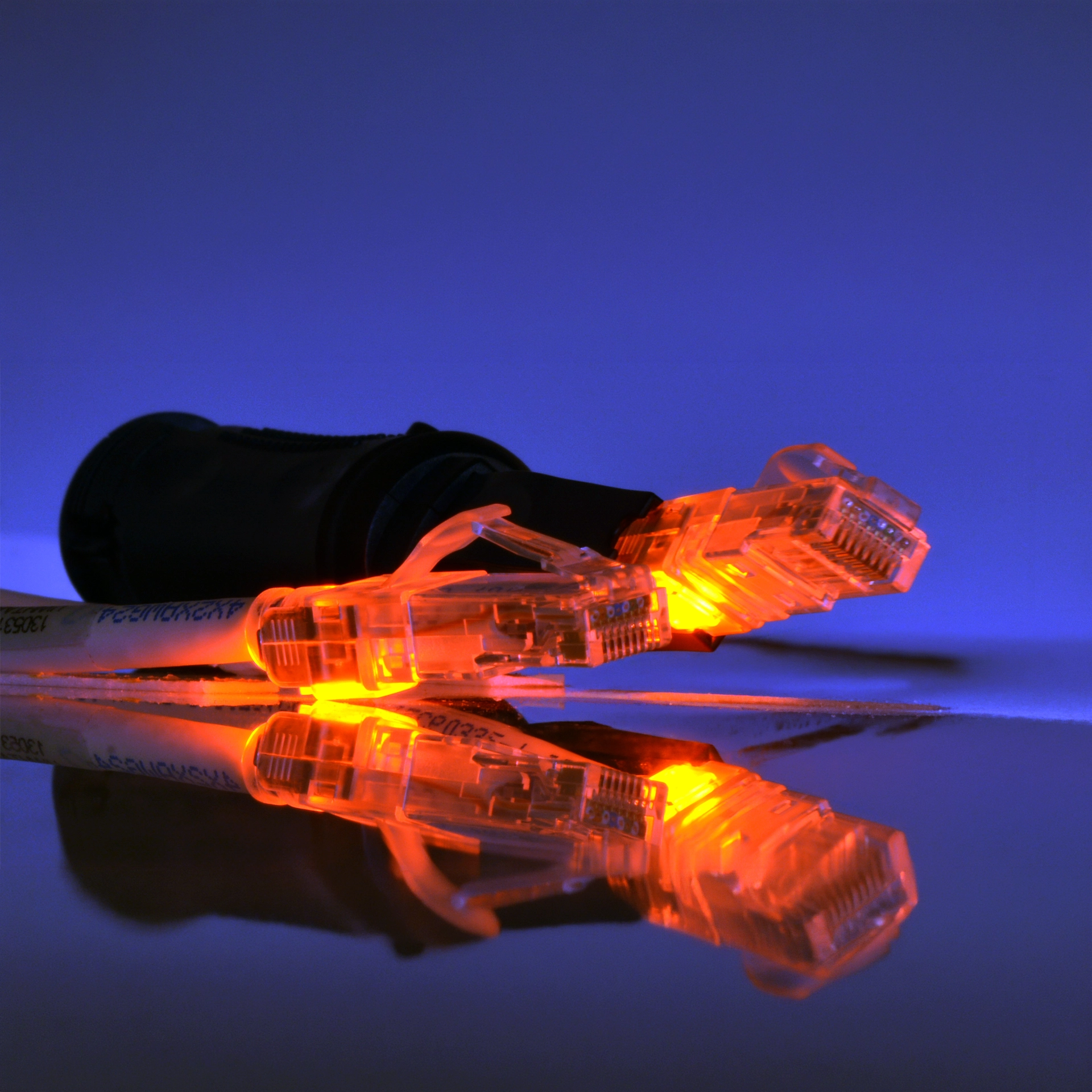

LED Eye tracingThe LED Eye on both ends flashes a light signal and reveals the far end at once.

10 Gigabit speedIEEE 802.3an 10GBase-T support carries 10 Gigabit Ethernet traffic, and it also works with 1000 Base-TX and 10/100Base-TX links.

26AWG U/FTP buildThe 26AWG U/FTP cable keeps outside interference away with foil screened pairs.

LSZH jacketThe LSZH outer jacket meets IEC 60332-1-2 flame retardancy and emits little smoke in a fire.

Standards complianceIt meets ANSI/EIA/TIA 568-C.2.1 Cat7, ISO/IEC 11801 Class F and EN 50173-1.

Application supportIt carries 100 MHz broadband video, voice, T1, ISDN and 155/622 Mbps ATM traffic.

General Specifications

Product Type

CAT7 Patch Cable (with LED Eye Technology)

Jacket Material

LSZH (Low Smoke Zero Halogen)

Functional Feature

LED Eye (Visual identification of cable ends)

Color & Length

White (RAL9010) / 2.0 Meters

Data Communication Performance

Network Speed

IEEE 802.3an 10GBase-T (10 Gigabit Ethernet)

Ethernet Protocols

1000 Base-TX Gigabit; 10/100Base-TX Fast Ethernet

Communication Standards

IEEE 802.3 (100 VG-AnyLAN), IEEE 802.12 (155/622 Mbps ATM)

Application Areas

100MHz Broadband Video, Voice, T1, ISDN

Technical Standards & Compliance

Manufacturing Standards

ANSI/TIA/EIA, ISO/IEC, and CENELEC EN Standards

Category Compliance

ANSI/EIA/TIA 568-C.2.1 Cat7, ISO/IEC 11801 Class F

Cable Standards

IEC 61156-6, CENELEC EN 50288-4-2 (2nd Ed), EN 50173-1

Fire Safety

Compliant with IEC 60332-1-2 (Flame Retardant)
