Dahua

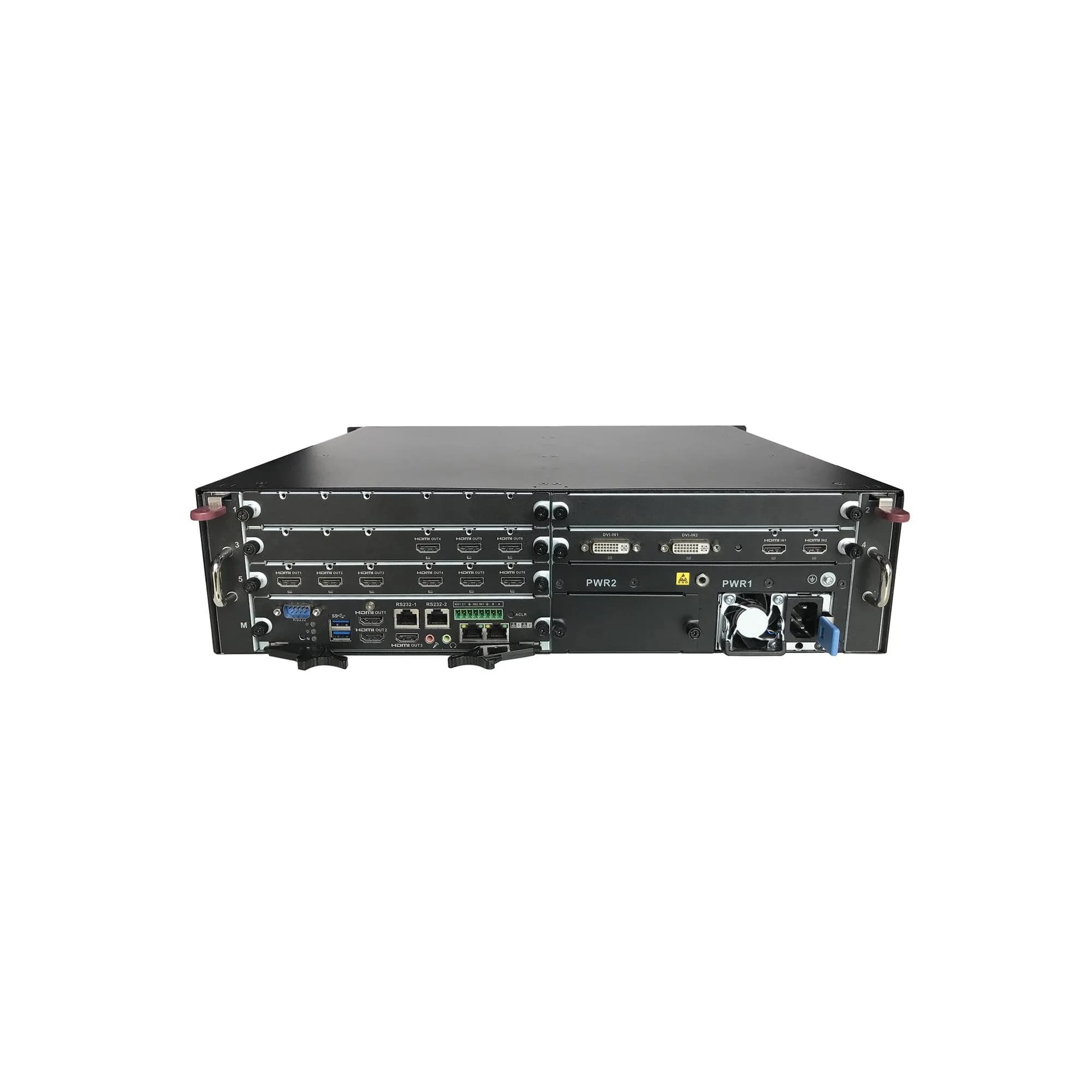

Ultra-HD Network Video Decoder

Name: Ultra-HD Network Video Decoder
Brand: Dahua
SKU: NVD0405DU-2I-8K

Stock Code: NVD0405DU-2I-8K

Splices video wall images up to 8K resolution.

An ultra-HD network video decoder in a 1U chassis that splices images up to 8K and feeds video wall screens through four HDMI 2.0 outputs. The fisheye dewarp function turns a single camera into several views.

8KMax. splicing resolution

4 channelsHDMI 2.0 output

36 channels1080P decoding

144 channelsD1 decoding

≤60 WPower consumption

1UChassis height

Key features

28K channels

Ultra-high resolution

Decodes two 8K channels or ten 4K channels in real time.

4HDMI 2.0 channels

4K@60 fps output

Drives four display units on the video wall.

144D1 channels

Dense channel capacity

Handles 36 channels of 1080P or 144 channels of D1 at once.

36splits

Flexible screen layout

Supports 1/4/6/8/9/16/25/36 and free split layouts.

8channels

Alarm input and output

Eight alarm inputs and eight alarm outputs wire to external systems.

≤60W

Measured power draw

Takes a DC 12V 5A supply and fits a 1U chassis.

VIDEO WALL OPERATION

Fisheye dewarpCorrects images from ceiling, wall and ground mounted fisheye cameras and shows them in multiple splits.

Splicing screen controlZoom, merge, roam and overlay operations run across the video wall.

Broad format supportDecodes H.265+, H.265, H.264, MJPEG, MPEG2 and MPEG4 streams side by side.

System
Processor	Embedded processor
Operating System	LINUX
Performance
Video Format	H.265+ / H.265 / H.264 / MJPEG / MPEG2 / MPEG4
Audio Format	PCM / G.711 / AAC
Total Video Decoding	2CH 32MP@25fps / 7CH 12MP@25fps / 10CH 8MP@25fps / 14CH 6MP@25fps / 36CH 1080P@30fps / 144CH D1@30fps
Decoding Resolution	32MP / 12MP / 8MP / 6MP / 5MP / 3MP / 1080P / 720P / 960H / D1 / HD1 / 2CIF / CIF / QCIF
Video Frame Rate	PAL: 1-25fps, NTSC: 1-30fps
Video Input	1ch@HDMI 2.0, 1ch@HDMI 1.4
Video Output	4ch@HDMI 2.0
Collection Resolution	3840×2160@60fps / 3840×2160@30fps / 1920×1080@60fps / 1680×1050 / 1440×900 / 1280×1024 / 1280×960 / 1280×800 / 1280×720 / 1024×768 / 800×600
Display Resolution	4096×2160@24fps / 3840×2160@60fps / 3840×2160@30fps / 1920×1080@60fps / 1280×1024 / 1280×720 / 1024×768
Bi-directional Talk	1 Pair 3.5mm jack (reserved) (2.0V Line in / 50mV Mic in / 10KΩ, 2.0V / 16Ω out)
Audio Output	1 3.5mm jack
Alarm Input	8ch
Alarm Output	8ch
Communication Interface	1 RJ45 network port (10M/100M/1000M); 2 RS232; 1 RS485
Others
Power Supply	DC 12V, 5A
Power Consumption	≤ 60W
Working Temperature	-10°C to +55°C (14°F to 131°F)
Working Humidity	10% ~ 95%, 86Kpa ~ 106Kpa
Unit Dimension	1U, 440 × 322.25 × 44 mm (17.32 × 12.69 × 1.73 inch) (W × D × H)
Weight	3.2kg ~ 3.5kg
