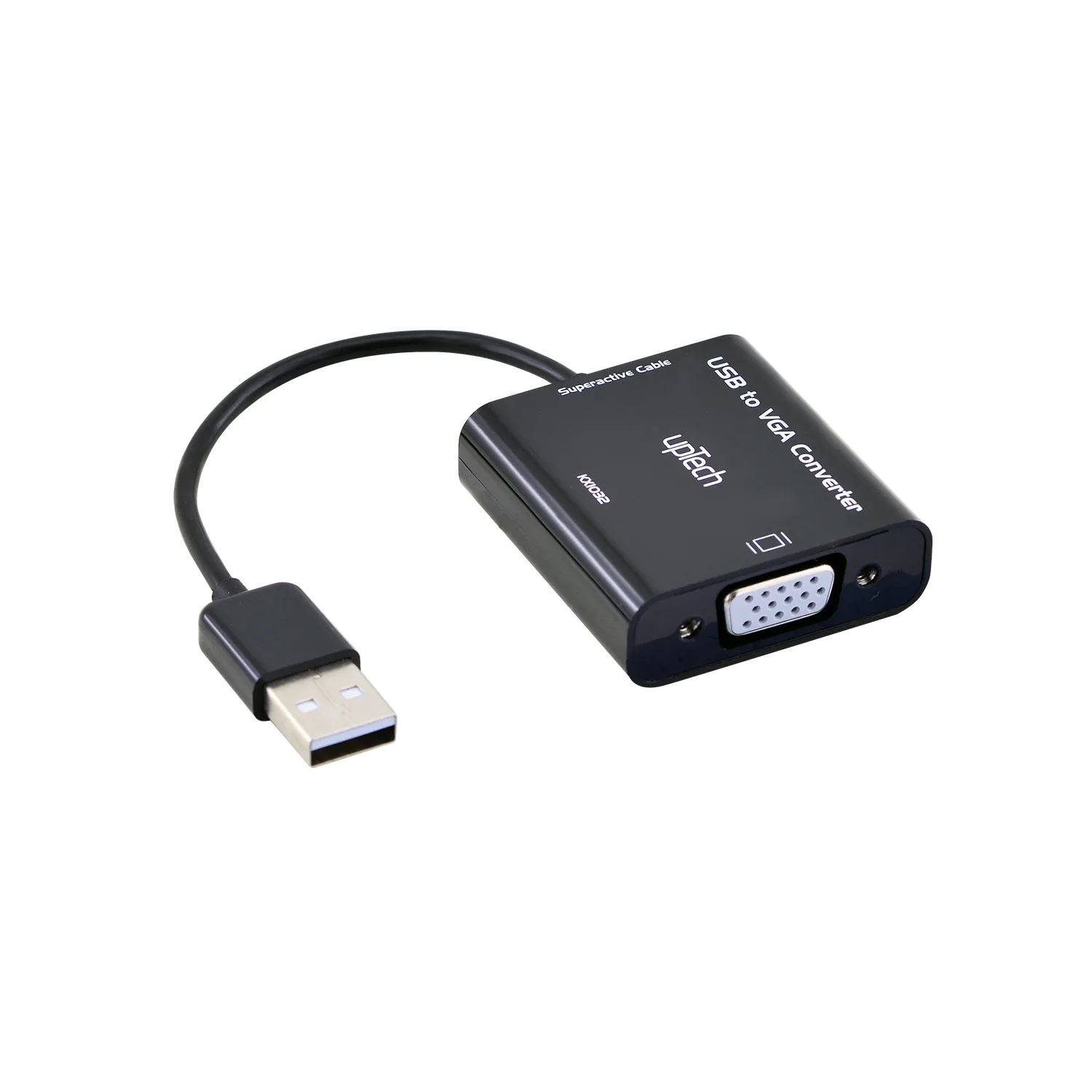

Adds an extra VGA monitor to a computer over a USB port.

Turns a USB 2.0 port into a VGA monitor output. It gives the computer a second screen for presentations, video display and extended desktop layouts.

USB 2.0Input Port

VGAOutput Port

1920×1080pMax. Resolution

480 MbpsBandwidth

1.30 WPower Consumption

Key features

480Mbps

USB bandwidth

Carries video data over the USB 2.0 port.

1.65Gbps

Video bandwidth

Handles video bandwidth up to 165 MHz.

1920×1080pmax.

Maximum resolution

Also supports high resolutions including 1600×1200.

50/60Hz

Vertical frequency range

Handles 480p, 576p, 720p and 1080p signals in interlaced and progressive modes.

1.30W

Power consumption

Draws 1.30 W while running.

EVERYDAY USE

Desktop layoutSwitches between screen extension, mirror display and screen rotation.

Presentation and playbackUses the large screen as a second output for presentations and video display.

Simple hookupTurns a free USB port into a VGA monitor output.

Usage AreasPresentations·Video display·Extended desktop

Supports Windows Server 2008, XP, Vista, 7, 8 (32/64 bit) and macOS 10.8.

General

Application

Connects an additional VGA monitor to a computer via a USB port; video display, presentations and extended desktop use

Input Port

USB 2.0

Output Port

VGA

Bandwidth

480 Mbps

Video

Video Bandwidth

Max. 1.65 Gbps / 165 MHz

Max. Resolution

Max. 1920×1080p, 1600×1200 (USB only)

Vertical Frequency Range

50/60 Hz

Interlaced 50/60 Hz

480p, 576p, 1080p (VGA only)

Progressive 50/60 Hz

480p, 576p, 720p, 1080p (VGA only)

Display Modes

Screen extension, mirror display, screen rotation

Software

Supported Operating Systems

Windows Server 2008 / XP / Vista / 7 / 8 (32/64 bit); macOS 10.8

Environmental

Operating Temperature

0°C ~ +40°C

Operating Humidity

10% ~ 85% RH, non-condensing

Storage Temperature

-20°C ~ +60°C

Storage Humidity

5% ~ 90% RH, non-condensing

Power

Power Consumption

1.30 W
