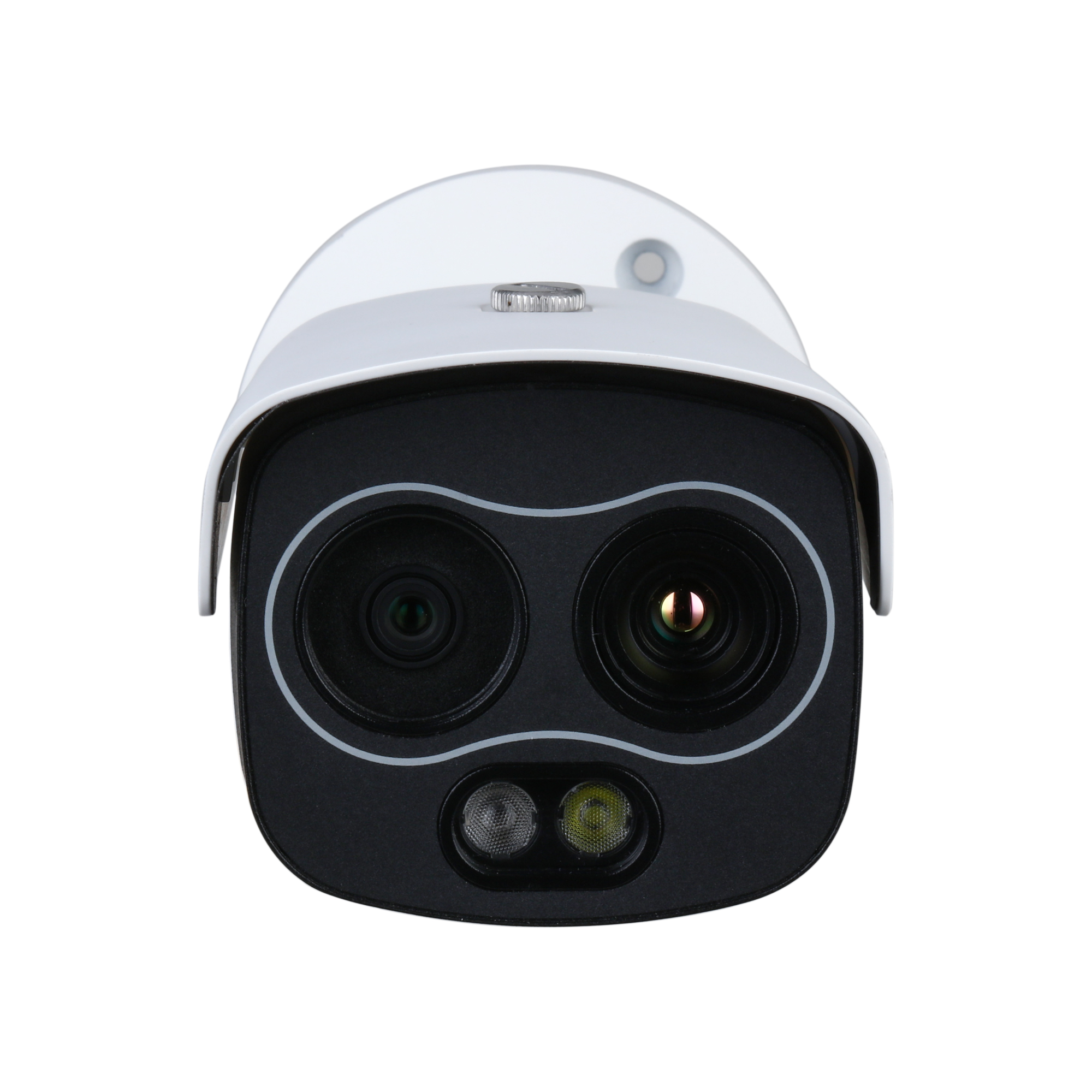

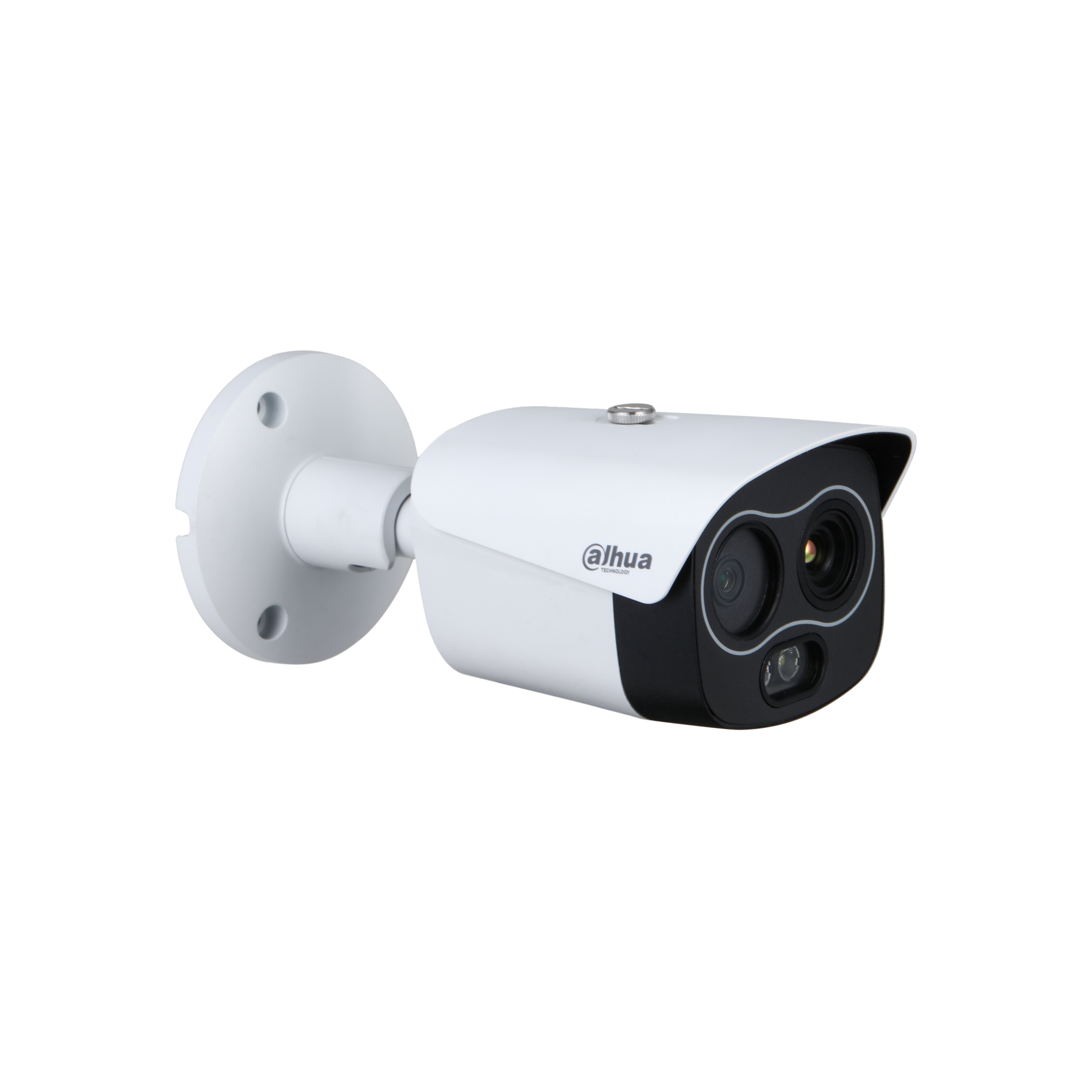

Name: WizSense Thermal Network Bullet Camera
Brand: Dahua
SKU: TPC-BF1241-T-S8

Thermal
Detector Type	Vanadium oxide uncooled focal plane detector
Max. Resolution	256 (H) × 192 (V)
Pixel Pitch	12 µm
Spectral Range	8 µm–14 µm
Thermal Sensitivity (NETD)	< 40 mK (@f/1.0, 25 Hz, 300 K)
Field of View	3.5 mm: H: 50.6°; V: 37.8° 7 mm: H: 24°; V: 18° 10 mm: H: 17.3°; V: 13.1°
Close Focus Distance	3.5 mm: 0.5 m (1.64 ft) 7 mm: 1 m (3.28 ft) 10 mm: 2 m (6.56 ft)
Detection Distance①	3.5 mm: Vehicle: 449 m (1,473.10 ft); Human: 146 m (479.00 ft) 7 mm: Vehicle: 897 m (2,942.91 ft); Human: 292 m (958.01 ft) 10 mm: Vehicle: 1,282 m (4,206.04 ft); Human: 417 m (1,368.11 ft)
Recognition Distance②	3.5 mm: Vehicle: 110 m (360.89 ft); Human: 38 m (124.67 ft) 7 mm: Vehicle: 220 m (721.78 ft); Human: 75 m (246.06 ft) 10 mm: Vehicle: 314 m (1,030.18 ft); Human: 107 m (351.05 ft)
Identification Distance③	3.5 mm: Vehicle: 56 m (183.73 ft); Human: 19 m (62.34 ft) 7 mm: Vehicle: 111 m (364.17 ft); Human: 38 m (124.67 ft) 10 mm: Vehicle: 159 m (521.65 ft); Human: 54 m (177.17 ft)
Aperture	F1.0
Digital Detail Enhancement (DDE)	Yes
Digital Zoom	16 levels
AGC	Auto; Manual
Noise Reduction	2D NR; 3D NR
Image Flip	180°
Color Palettes	18 (white hot/black hot/fusion/rainbow/golden autumn/midday/iron red/amber/jade/sunset/icefire/painting/pomegranate/emerald/spring/summer/autumn/winter)
Fusion Mode	3 (Warm color; Cool color; Iron red)
Visible
Image Sensor	1/2.7" CMOS
Max. Resolution	2336 (H) × 1752 (V)
Pixel	4 MP
Electronic Shutter Speed	1/30,000 s–1 s
Min. Illumination	Color: 0.05 lux Black & white: 0.005 lux 0 lux (IR on)
IR Illumination Distance	30 m (98.43 ft)
IR Illuminator On/Off Control	Auto; Manual
Aperture	4 mm: F1.6 8 mm: F2.0 12 mm: F2.0
Field of View	4 mm: H: 71.2°; V: 52° 8 mm: H: 33.4°; V: 25° 12 mm: H: 22°; V: 16.6°
Focus Control	Fixed
Close Focus Distance	4 mm: 1 m (3.28 ft) 8 mm: 2.5 m (8.2 ft) 12 mm: 2.5 m (8.2 ft)
Day/Night	Auto (ICR); Color; B/W
BLC	Yes
WDR	DWDR
HLC	Yes
White Balance	Auto; Manual; Indoor; Outdoor; Tracking; Street lamp; Natural
AGC	Auto; Manual
Noise Reduction	2D NR; 3D NR
S/N Ratio	≥55 dB
Region of Interest (RoI)	Yes
Image Flip	180°
Exposure Compensation	Yes
Intelligence
Temperature Range	Low Temperature Mode: –20 °C to +150 °C (–4 °F to +302 °F) High Temperature Mode: 0 °C to +550 °C (+32 °F to +1022 °F)
Temperature Accuracy	Max (± 2 °C, ± 2%) Operating Temperature: –20 °C to +50 °C (–4 °F to +122 °F)
Temperature Mode	Spot: 12 Line: 12 Area: 12 Support 12 rules simultaneously
Video and Audio
Video Compression	H.265; H.264; H.264H; MJPEG
Resolution (Thermal)	Main Stream: 1280 × 960; 1024 × 768; 640 × 480; 256 × 192 (1280 × 960 by default) Sub Stream: 640 × 480; 256 × 192 (256 × 192 by default)
Resolution (Visual)	Main Stream: 2336 × 1752; 1920 × 1080; 1280 × 720; 704 × 576 (2336 × 1752 by default) Sub Stream: 1280 × 720; 704 × 576; 352 × 288 (352 × 288 by default)
Frame Rate (Thermal)	50 Hz: 1–25 fps adjustable (25 fps by default) 60 Hz: 1–30 fps adjustable (30 fps by default)
Frame Rate (Visual)	50 Hz: 1–25 fps adjustable (25 fps by default) 60 Hz: 1–30 fps adjustable (30 fps by default)
Audio Compression	G.711a; G.711mu; PCM
Network
Protocol	HTTPS; HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; SNMP; QoS; UPnP; NTP
Edge Storage	Micro SD card (256 GB)
Interoperability	ONVIF; CGI; Dahua SDK
Browser	IE 8 and later Google Chrome 42 and earlier Firefox 42 and earlier
User/Host	10
Security	Authorized username and password; attached MAC address; encrypted HTTPS; IEEE 802.1x; controlled network access
Port
Network	1 × RJ-45 (10/100 Base-T)
Audio Input	1
Audio Output	1
Alarm Input	2
Alarm Output	2
RS-485	1 pair
Wi-Fi (Optional)	802.11b/g/n (1x1); 2.4 GHz; 150 Mbps; 150 m range; Power: fc +/-22 MHz -20 dBr, fc +/-40 MHz -28 dBr, fc > +/-60 MHz -45 dBr
Power
Power Supply	12 VDC ± 20%; PoE
Power Consumption	Basic: <3 W (12 VDC, LED off); 4 W (PoE) Max: <8.5 W (12 VDC, LED on, heater on); 10 W (PoE)
Environment
Operating Temperature	–30 °C to +60 °C
Storage Temperature	–30 °C to +70 °C
Operating Humidity	≤95%
Protection	IP67
Structure
Product Dimensions	205.5 mm × 90.4 mm × 90.1 mm
Packaging Dimensions	279 mm × 187 mm × 138 mm
Net Weight	≤ 0.9 kg
Gross Weight	≤ 1.3 kg
Heat Detection Distance
3.5 mm	45 m
7 mm	86 m
10 mm	123 m
Perimeter Protection Distance
3.5 mm	Human: 24.5 m; Vehicle: 73.5 m
7 mm	Human: 49 m; Vehicle: 146.5 m
10 mm	Human: 70 m; Vehicle: 209 m

Turns heat into an image and picks out targets in the dark.

An outdoor bullet camera that combines a thermal and a visible channel in one housing. The uncooled vanadium oxide detector images heat differences, while the 4 MP CMOS sensor produces a color picture of the same scene. Temperature measurement, heat detection and human/vehicle classification run on the camera itself.

4 MPResolution

256 × 192Thermal resolution

4 / 8 / 12 mmFocal Length

30 mIR LED Distance

IP67Protection Grade

12 VDC / PoEPower supply

Key features

550°C

Wide measurement range

Measures 0 °C to +550 °C in high temperature mode and –20 °C to +150 °C in low temperature mode.

40mK

Thermal sensitivity

A 40 mK NETD figure separates small heat differences.

12rules

Simultaneous measurement

Runs spot, line and area measurement with up to 12 rules at once.

18palettes

Color palettes

Switches among 18 palettes including white hot, black hot and iron red.

16levels

Digital zoom

Magnifies the image through 16 zoom levels.

10W

Powered over PoE

Carries data and power on one cable and draws at most 10 W over PoE.

IN DAILY USE

Works in the darkThe thermal channel needs no light and separates targets in complete darkness.

Deters on the spotThe built-in white light and audio alarm warn the moment an event starts.

Cuts false alarmsHuman and vehicle classification triggers the alarm only on real targets.

Thermal

Detector Type

Vanadium oxide uncooled focal plane detector

Max. Resolution

256 (H) × 192 (V)

Pixel Pitch

12 µm

Spectral Range

8 µm–14 µm

Thermal Sensitivity (NETD)

< 40 mK (@f/1.0, 25 Hz, 300 K)

Field of View

3.5 mm: H: 50.6°; V: 37.8°
7 mm: H: 24°; V: 18°
10 mm: H: 17.3°; V: 13.1°

Close Focus Distance

3.5 mm: 0.5 m (1.64 ft)
7 mm: 1 m (3.28 ft)
10 mm: 2 m (6.56 ft)

Detection Distance①

3.5 mm: Vehicle: 449 m (1,473.10 ft); Human: 146 m (479.00 ft)
7 mm: Vehicle: 897 m (2,942.91 ft); Human: 292 m (958.01 ft)
10 mm: Vehicle: 1,282 m (4,206.04 ft); Human: 417 m (1,368.11 ft)

Recognition Distance②

3.5 mm: Vehicle: 110 m (360.89 ft); Human: 38 m (124.67 ft)
7 mm: Vehicle: 220 m (721.78 ft); Human: 75 m (246.06 ft)
10 mm: Vehicle: 314 m (1,030.18 ft); Human: 107 m (351.05 ft)

Identification Distance③

3.5 mm: Vehicle: 56 m (183.73 ft); Human: 19 m (62.34 ft)
7 mm: Vehicle: 111 m (364.17 ft); Human: 38 m (124.67 ft)
10 mm: Vehicle: 159 m (521.65 ft); Human: 54 m (177.17 ft)

Aperture

F1.0

Digital Detail Enhancement (DDE)

Yes

Digital Zoom

16 levels

AGC

Auto; Manual

Noise Reduction

2D NR; 3D NR

Image Flip

180°

Color Palettes

18 (white hot/black hot/fusion/rainbow/golden autumn/midday/iron red/amber/jade/sunset/icefire/painting/pomegranate/emerald/spring/summer/autumn/winter)

Fusion Mode

3 (Warm color; Cool color; Iron red)

Visible

Image Sensor

1/2.7" CMOS

Max. Resolution

2336 (H) × 1752 (V)

Pixel

4 MP

Electronic Shutter Speed

1/30,000 s–1 s

Min. Illumination

Color: 0.05 lux
Black & white: 0.005 lux
0 lux (IR on)

IR Illumination Distance

30 m (98.43 ft)

IR Illuminator On/Off Control

Auto; Manual

Aperture

4 mm: F1.6
8 mm: F2.0
12 mm: F2.0

Field of View

4 mm: H: 71.2°; V: 52°
8 mm: H: 33.4°; V: 25°
12 mm: H: 22°; V: 16.6°

Focus Control

Fixed

Close Focus Distance

4 mm: 1 m (3.28 ft)
8 mm: 2.5 m (8.2 ft)
12 mm: 2.5 m (8.2 ft)

Day/Night

Auto (ICR); Color; B/W

BLC

Yes

WDR

DWDR

HLC

Yes

White Balance

Auto; Manual; Indoor; Outdoor; Tracking; Street lamp; Natural

AGC

Auto; Manual

Noise Reduction

2D NR; 3D NR

S/N Ratio

≥55 dB

Region of Interest (RoI)

Yes

Image Flip

180°

Exposure Compensation

Yes

Intelligence

Temperature Range

Low Temperature Mode: –20 °C to +150 °C (–4 °F to +302 °F)
High Temperature Mode: 0 °C to +550 °C (+32 °F to +1022 °F)

Temperature Accuracy

Max (± 2 °C, ± 2%) Operating Temperature: –20 °C to +50 °C (–4 °F to +122 °F)

Temperature Mode

Spot: 12
Line: 12
Area: 12
Support 12 rules simultaneously

Video and Audio

Video Compression

H.265; H.264; H.264H; MJPEG

Resolution (Thermal)

Main Stream: 1280 × 960; 1024 × 768; 640 × 480; 256 × 192 (1280 × 960 by default)
Sub Stream: 640 × 480; 256 × 192 (256 × 192 by default)

Resolution (Visual)

Main Stream: 2336 × 1752; 1920 × 1080; 1280 × 720; 704 × 576 (2336 × 1752 by default)
Sub Stream: 1280 × 720; 704 × 576; 352 × 288 (352 × 288 by default)

Frame Rate (Thermal)

50 Hz: 1–25 fps adjustable (25 fps by default)
60 Hz: 1–30 fps adjustable (30 fps by default)

Frame Rate (Visual)

50 Hz: 1–25 fps adjustable (25 fps by default)
60 Hz: 1–30 fps adjustable (30 fps by default)

Audio Compression

G.711a; G.711mu; PCM

Network

Protocol

HTTPS; HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; SNMP; QoS; UPnP; NTP

Edge Storage

Micro SD card (256 GB)

Interoperability

ONVIF; CGI; Dahua SDK

Browser

IE 8 and later
Google Chrome 42 and earlier
Firefox 42 and earlier

User/Host

Security

Authorized username and password; attached MAC address; encrypted HTTPS; IEEE 802.1x; controlled network access

Port

Network

1 × RJ-45 (10/100 Base-T)

Audio Input

Audio Output

Alarm Input

Alarm Output

RS-485

1 pair

Wi-Fi (Optional)

802.11b/g/n (1x1); 2.4 GHz; 150 Mbps; 150 m range; Power: fc +/-22 MHz -20 dBr, fc +/-40 MHz -28 dBr, fc > +/-60 MHz -45 dBr

Power

Power Supply

12 VDC ± 20%; PoE

Power Consumption

Basic: <3 W (12 VDC, LED off); 4 W (PoE)
Max: <8.5 W (12 VDC, LED on, heater on); 10 W (PoE)

Environment

Operating Temperature

–30 °C to +60 °C

Storage Temperature

–30 °C to +70 °C

Operating Humidity

≤95%

Protection

IP67

Structure

Product Dimensions

205.5 mm × 90.4 mm × 90.1 mm

Packaging Dimensions

279 mm × 187 mm × 138 mm

Net Weight

≤ 0.9 kg

Gross Weight

≤ 1.3 kg

Heat Detection Distance

3.5 mm

45 m

7 mm

86 m

10 mm

123 m

Perimeter Protection Distance

3.5 mm

Human: 24.5 m; Vehicle: 73.5 m

7 mm

Human: 49 m; Vehicle: 146.5 m

10 mm

Human: 70 m; Vehicle: 209 m

WizSense Thermal Network Bullet Camera

Datasheet

TPC-BF1241-T

Kullanım Kılavuzu

TPC-BF1241-T

TPC-BF1241-T

TPC-BF1241-T

Teknik Çizim

TPC-BF1241-T

TPC-BF1241-T

Fotoğraf

TPC-BF1241-T

Similar Products

WizSense Thermal Network Bullet Camera

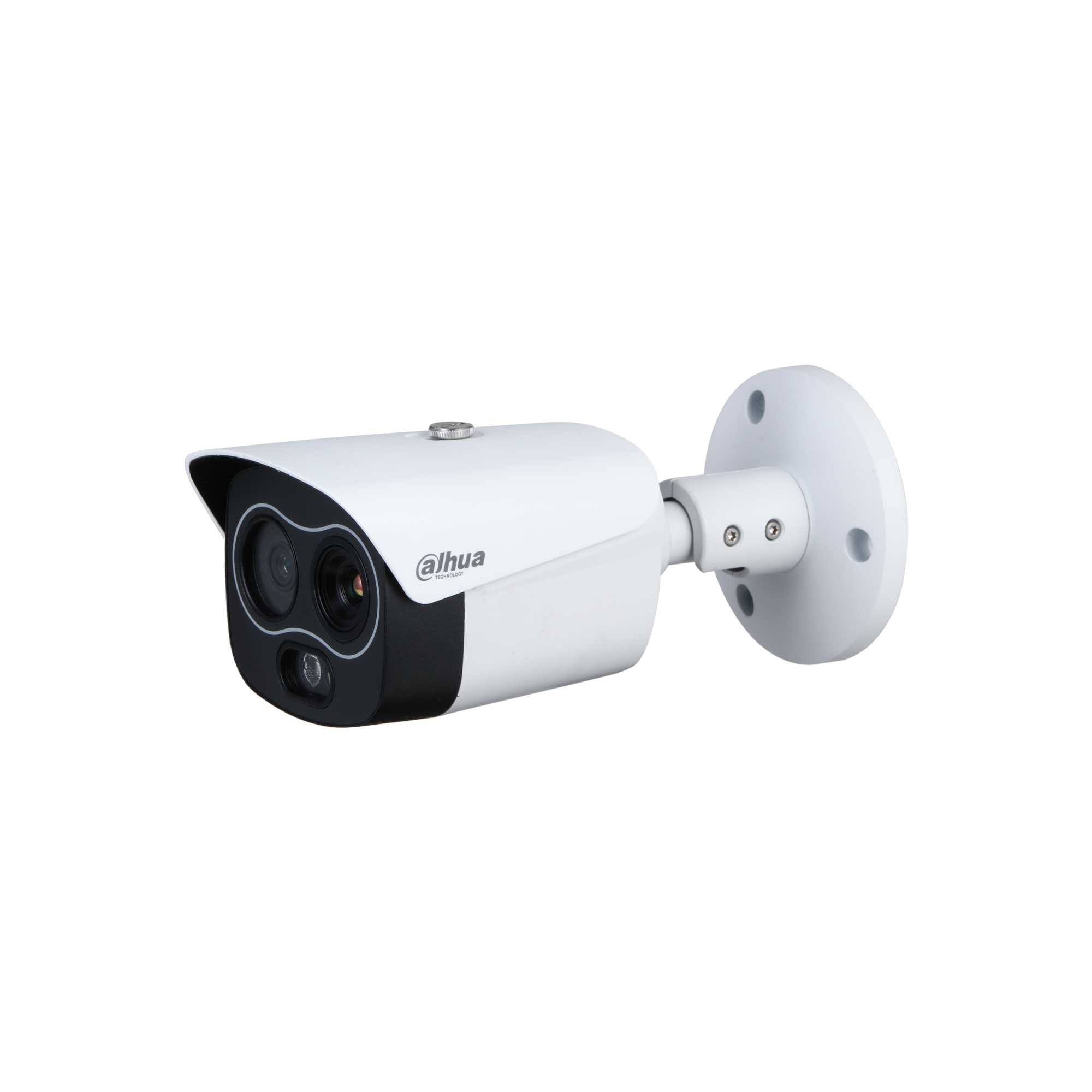

4MP WizSense Thermal Network Bullet Kamera
