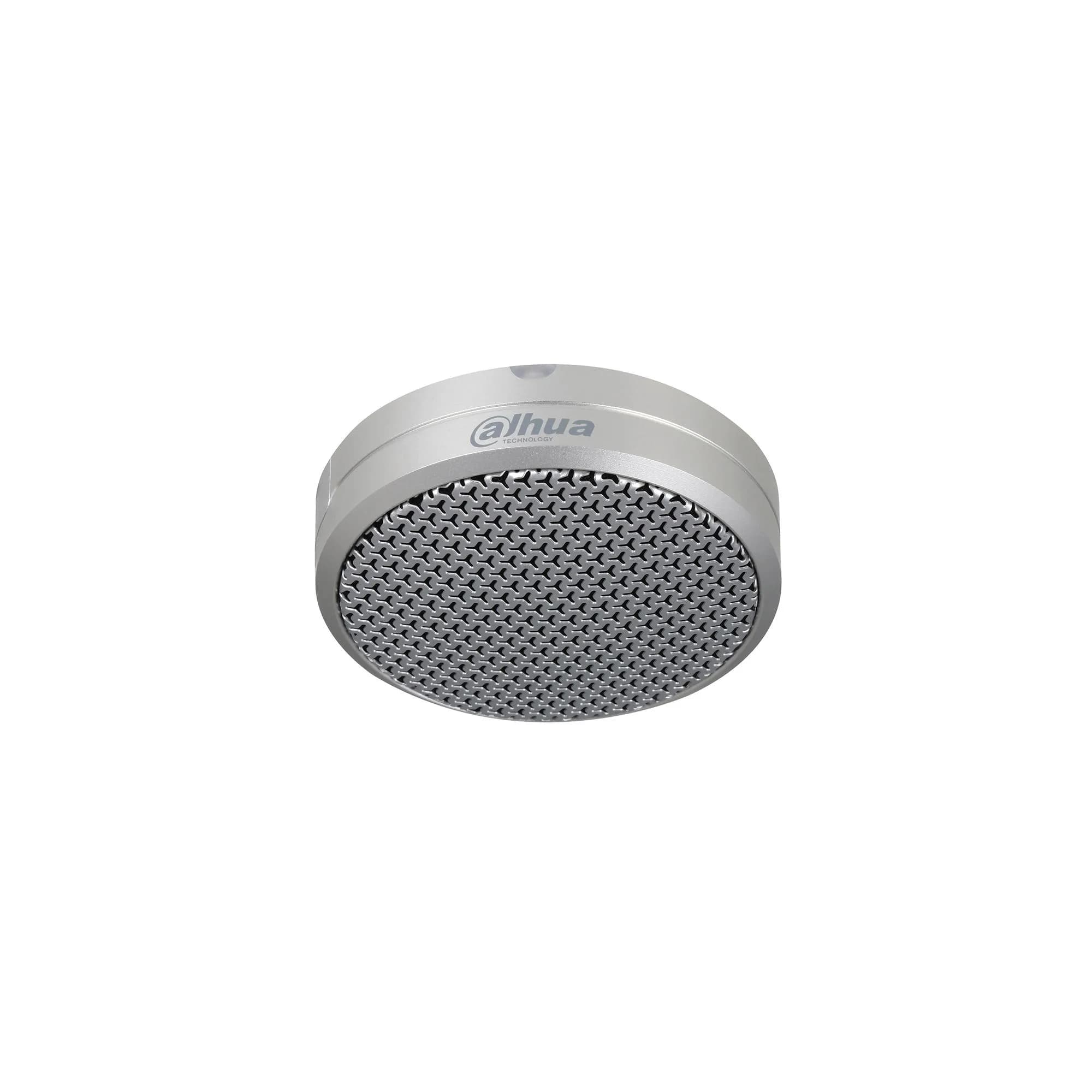

A small aluminum body listens across 10~70 m² in every direction.

An omni-directional microphone that covers 10~70 m². Its plated film capacitor head captures clear, natural sound and stays clean up to 110 dB SPL.

10~70 m²Scope

80 Hz~16 kHzFrequency Response

-34±3 dBSensitivity

600 ΩOutput Impedance

DC 12 VWorking Voltage

-30°C~+70°COperating Temperature

Key features

High sensitivityThe -34±3 dB head resolves low-level sources as well as loud ones.

Omni-directional capsuleThe capsule collects sound from every direction and holds a 58 dB signal-to-noise ratio.

Electrical protectionLightning protection, power polarity reversal protection and electrostatic protection stay active.

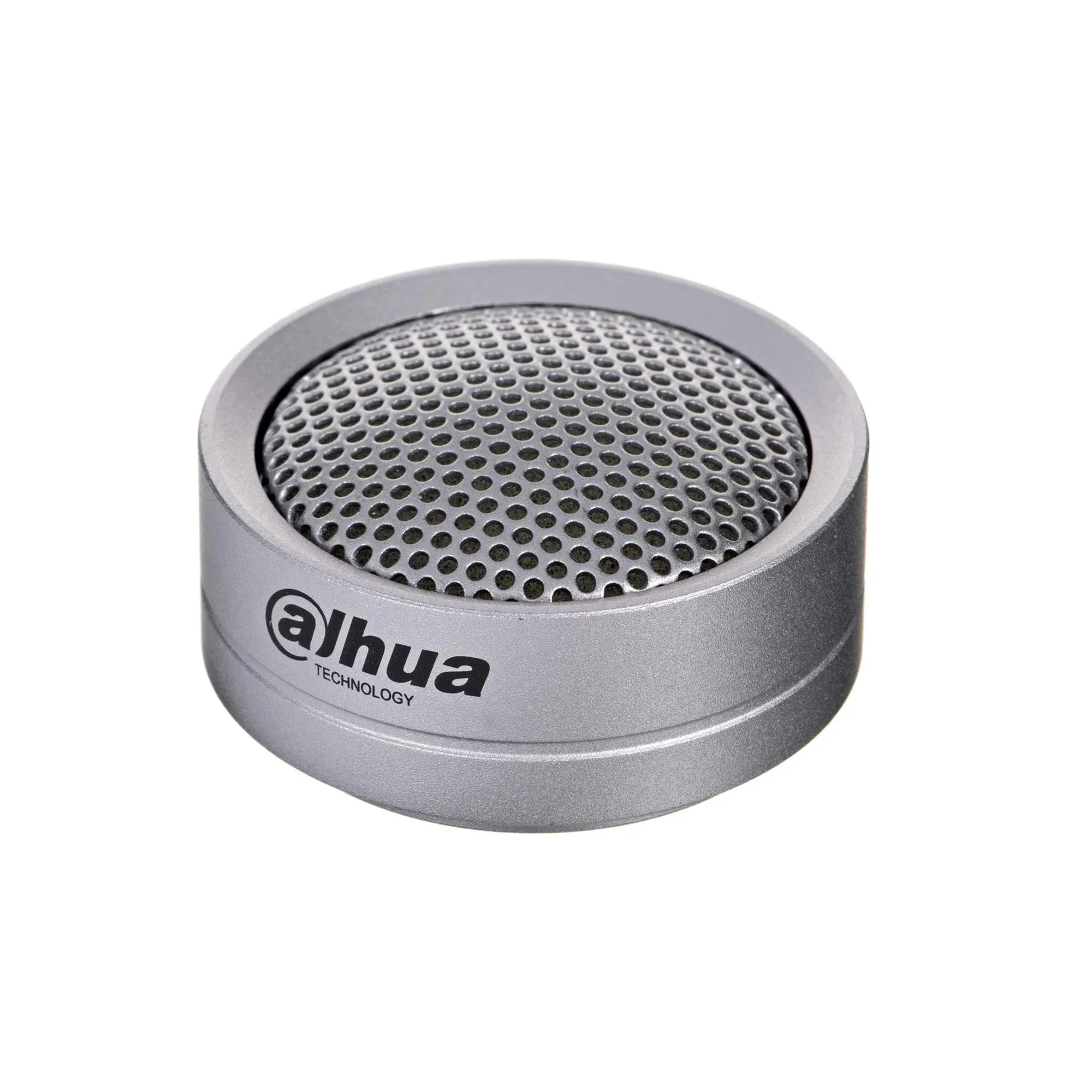

Aluminum housingThe Φ40 mm × 20 mm housing weighs 48 g and fits tight mounting openings.

Stable outputThe 600 Ω unbalanced output drives a recorder at 2.5 Vpp amplitude.

General

Scope

10~70 m²

Sensitivity

-34±3 dB

Frequency Response

80Hz～16kHz

Directional Characteristic

Omni-directional

SNR (re 94dBSPL = 1Pa@1KHz)

58dB

Dynamic Range

74dB

Max. Sustainable Sound Pressure

110dBSPL (1KHz, THD 1%)

Output Impedance

600Ω (non-equilibrium)

Output Signal Amplitude

2.5Vpp/88dBSPL

Microphone

Plated film capacitor microphone head

Working Voltage

DC 12V

Working Current

40mA

Working Temperature

-30°C~+70°C (-22℉~+158℉)

Material

Aluminum

Color

Silver

Dimension

Φ40mm×20mm (Φ1.57"×0.79")

Weight

48g (0.11lb)

Certification

CE/FCC
