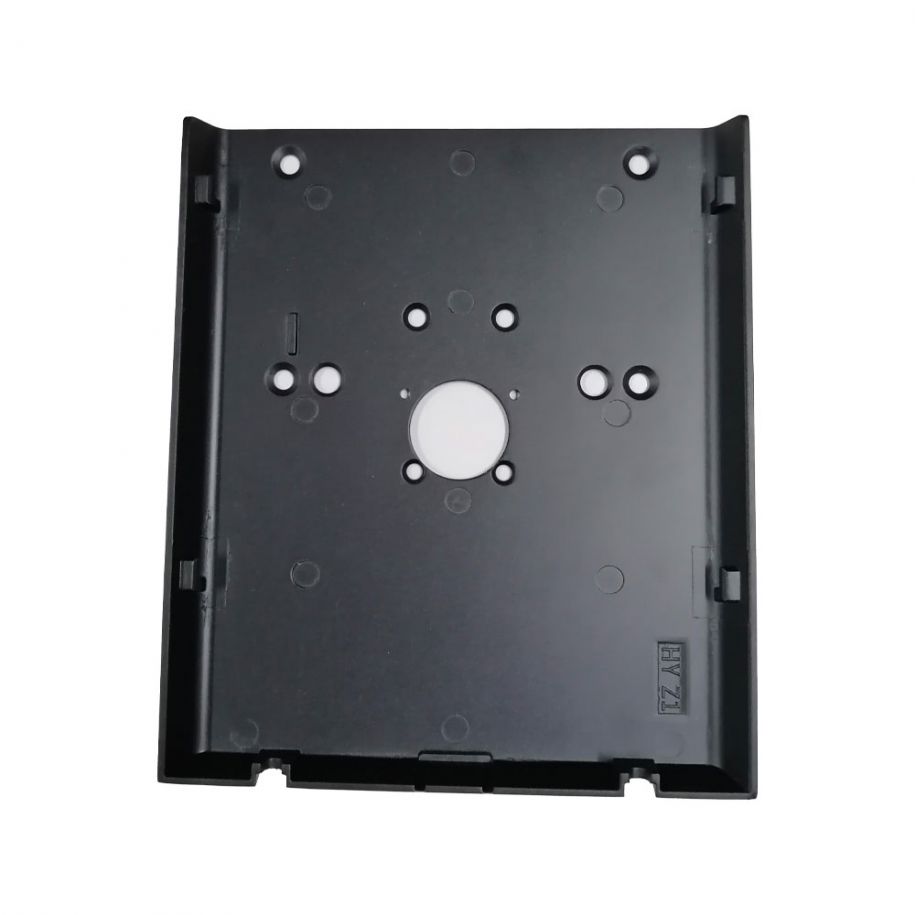

Carries the door station on the wall surface without cutting into it.

A zinc alloy surface mount bracket for VTO9 series IP apartment door stations. At 10.1 mm thick it stands barely off the wall and holds up in outdoor conditions.

Zinc alloyCasing Material

144.7 × 124.3 × 10.1 mmProduct Dimensions (H × W × D)

-30 °C ~ +60 °COperating Temperature

0.12 kgNet Weight

Surface mountInstallation Type

BlackAppearance Color

Key features

Material and finishSprayed paint covers the zinc alloy plate and gives the bracket its black finish.

Dimensions and weightThe bracket measures 144.7 mm × 124.3 mm × 10.1 mm and weighs 0.12 kg.

InstallationIt sits on the wall surface and carries the door station without cutting into the wall.

Operating environmentIt works from -30 °C to +60 °C, indoors and outdoors.

CompatibilityIt matches DHI-VTO9631Q and VTO9631Q door stations.

Technical Specification: Wall Mount Bracket (Surface)

Product Type / Material

Wall mount bracket / Zinc alloy plate (paint sprayed)

Appearance / Color

Black

Product Dimensions

144.7 mm × 124.3 mm × 10.1 mm (H × W × D)

Operating Env.

–30 °C to +60 °C / Indoor; Outdoor

Net Weight / Install

0.12 kg (0.26 lb) / Surface Mount

Applicable Model

DHI-VTO9631Q; VTO9631Q

Storage Env.

–20 °C to +70 °C / 30%–75% Humidity

Carries the door station on the wall surface without cutting into it.

A zinc alloy surface mount bracket for VTO9 series IP apartment door stations. At 10.1 mm thick it stands barely off the wall and holds up in outdoor conditions.

Zinc alloyCasing Material

144.7 × 124.3 × 10.1 mmProduct Dimensions (H × W × D)

-30 °C ~ +60 °COperating Temperature

0.12 kgNet Weight

Surface mountInstallation Type

BlackAppearance Color

Key features

Material and finishSprayed paint covers the zinc alloy plate and gives the bracket its black finish.

Dimensions and weightThe bracket measures 144.7 mm × 124.3 mm × 10.1 mm and weighs 0.12 kg.

InstallationIt sits on the wall surface and carries the door station without cutting into the wall.

Operating environmentIt works from -30 °C to +60 °C, indoors and outdoors.

CompatibilityIt matches DHI-VTO9631Q and VTO9631Q door stations.
