Fixes the door station onto the wall surface.

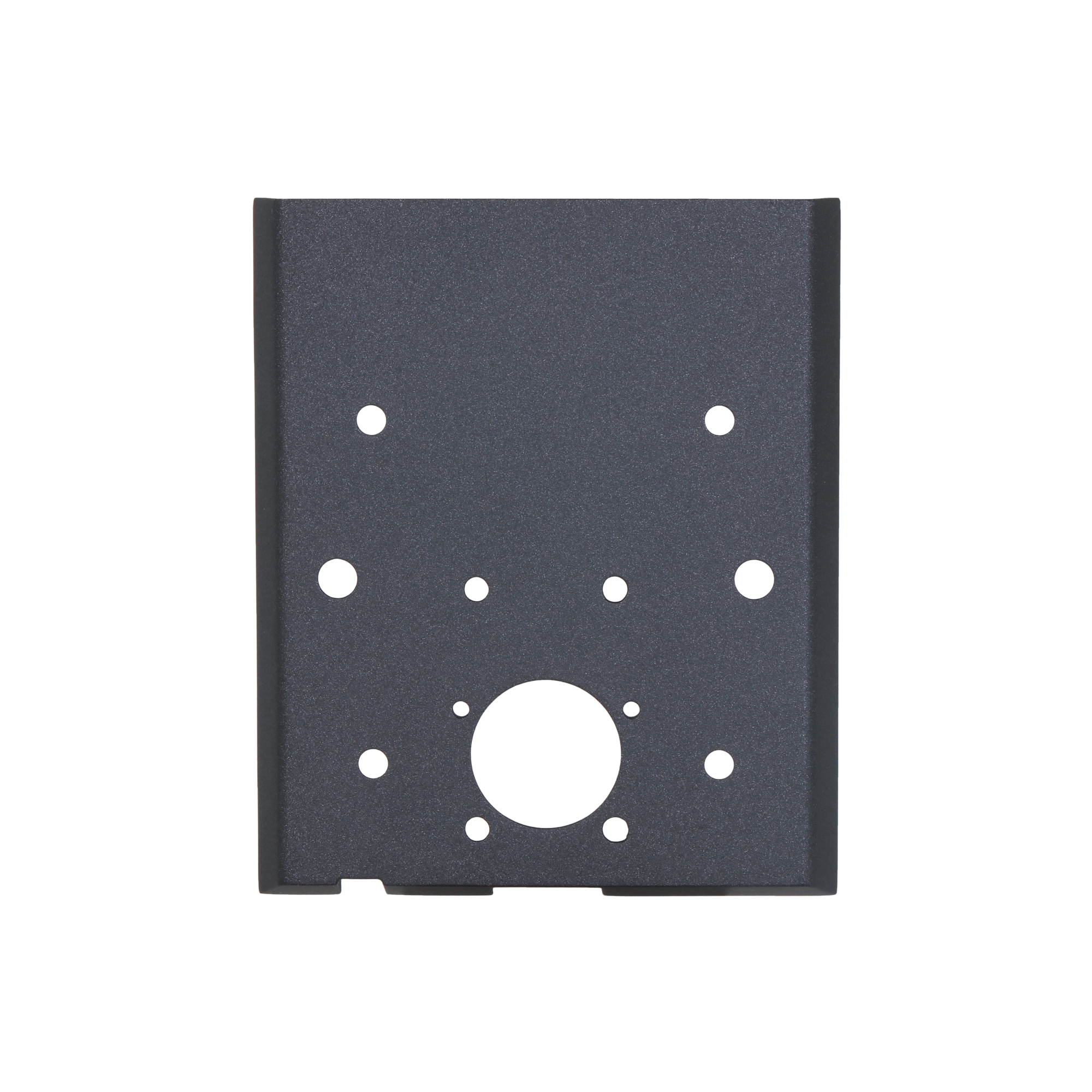

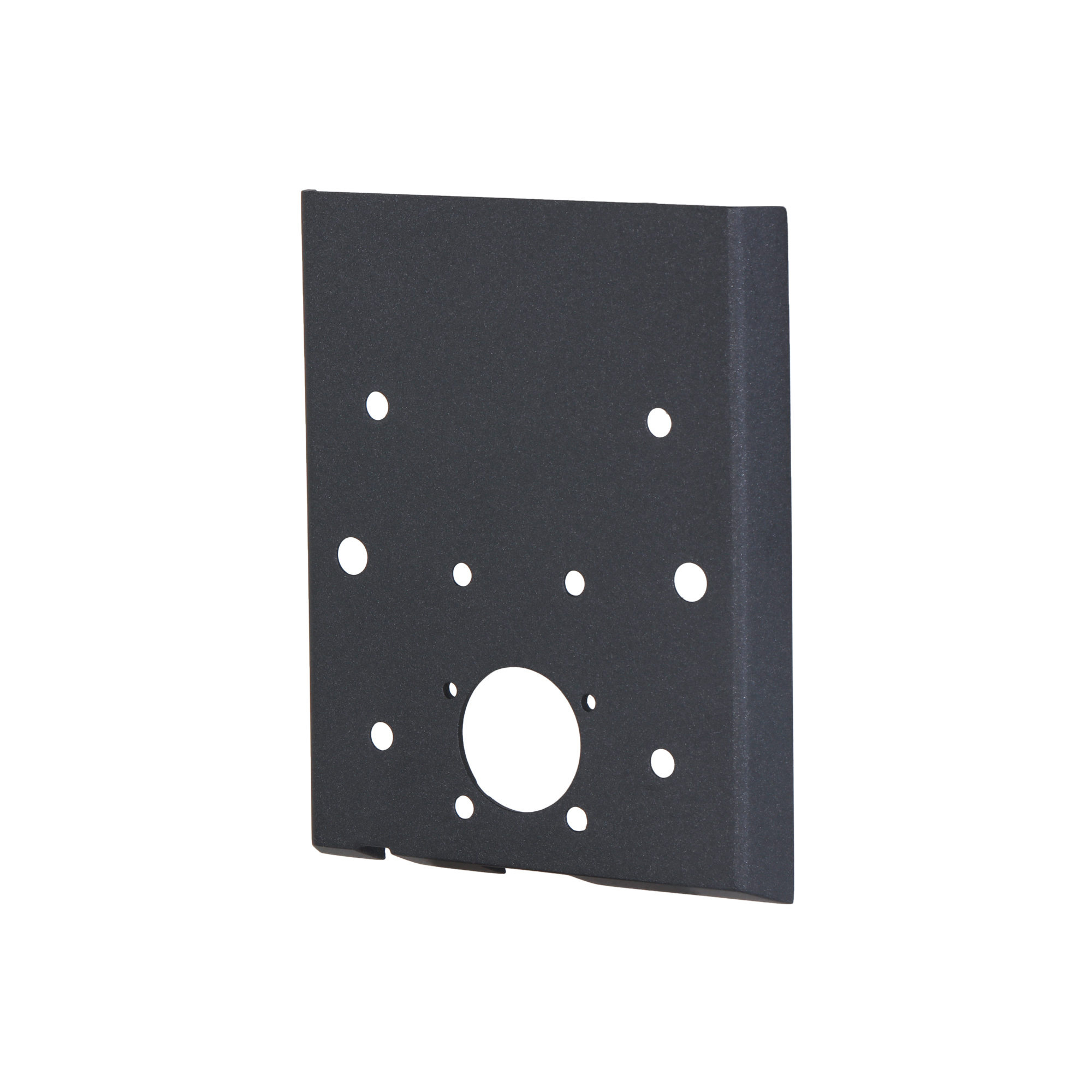

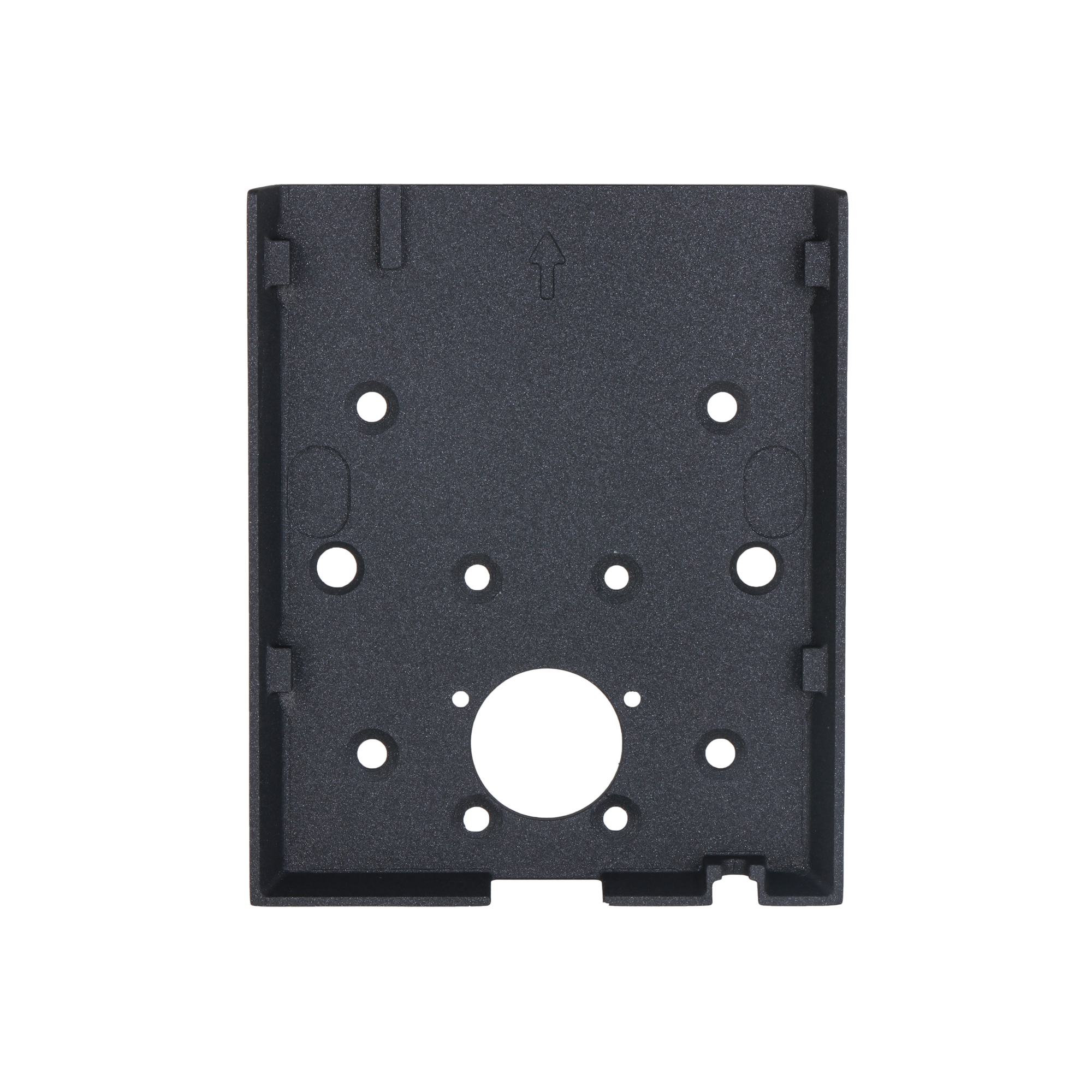

A zinc alloy surface mount bracket for VTO7 series IP apartment door stations. At 8.3 mm thick it sits flat on the wall and works outdoors as well.

Zinc alloyCasing Material

102.6 × 84.8 × 8.3 mmProduct Dimensions (H × W × D)

-30 °C ~ +60 °COperating Temperature

0.12 kgNet Weight

Surface mountInstallation Type

BlackAppearance Color

Key features

Material and finishSprayed paint covers the zinc alloy plate and gives the bracket its black finish.

Dimensions and weightThe bracket measures 102.6 mm × 84.8 mm × 8.3 mm and weighs 0.12 kg.

InstallationIt sits on the wall surface and carries the door station without cutting into the wall.

Operating environmentIt works from -30 °C to +60 °C, indoors and outdoors.

CompatibilityIt matches DHI-VTO7631Q and VTO7631Q door stations.

Technical Specification: Wall Mount Bracket (Surface)

Product Type / Material

Wall mount bracket / Zinc alloy plate (paint sprayed)

Appearance Color

Black

Product Dimensions

102.6 mm × 84.8 mm × 8.3 mm (4.04" × 3.34" × 0.33") (H × W × D)

Operating Conditions

–30 °C to +60 °C / Indoor; Outdoor

Net Weight / Installation

0.12 kg (0.26 lb) / Surface Mount

Applicable Model

DHI-VTO7631Q; VTO7631Q

Storage Conditions

-20 °C to +70 °C / 30%–75% RH
