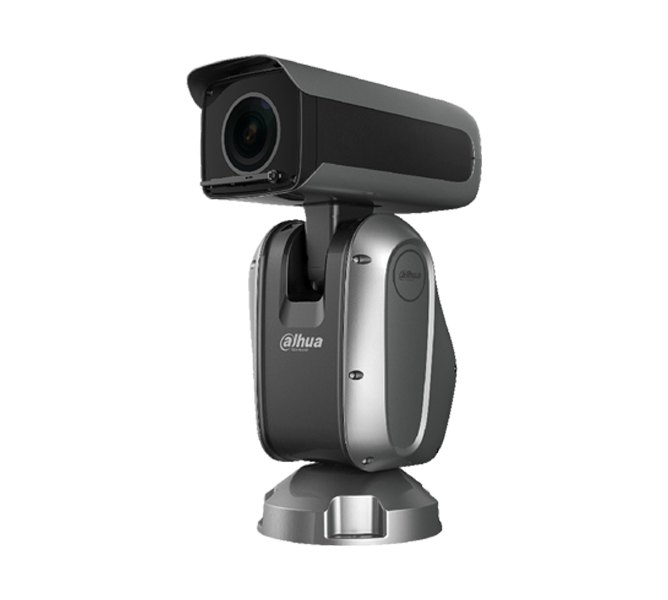

Артикул: PTZ83240-HNF-WA
| Camera | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Image Sensor | 1/1.8" CMOS | ||||||||
| Effective Pixels | 2MP | ||||||||
| Max. Resolution | 1920 (H) × 1080 (V) | ||||||||
| ROM | 32GB | ||||||||
| RAM | 4GB | ||||||||
| Electronic Shutter Speed | 1/1–1/30000 s | ||||||||
| Scanning System | Progressive | ||||||||
| Min. Illumination | Color: 0.001Lux@F1.4 B/W: 0.0001Lux@F1.4 0Lux (IR light on) | ||||||||
| Illumination Distance | 400 m (1312.34 ft) | ||||||||
| Illuminator On/Off Control | Zoom Prio/Manual/SmartIR | ||||||||
| Illuminator Number | 10 | ||||||||
| Wiper | Support | ||||||||
| Lens | |||||||||
| Focal Length | 5.6 mm–224 mm | ||||||||
| Max. Aperture | F1.4–F4.5 | ||||||||
| Field of View | H: 2.0°–63.9° V: 1.2°–35° D: 2.4°–66.9° | ||||||||
| Optical Zoom | 40x | ||||||||
| Focus Control | Auto/Semi-Auto/Manual | ||||||||
| Close Focus Distance | 0.5 m–2 m (1.64 ft–6.56 ft) | ||||||||
| Iris Control | Auto | ||||||||
| DORI Distance |
| ||||||||
| PTZ | |||||||||
| Pan/Tilt Range | Pan: 0°–360° Tilt: -90°–45° | ||||||||
| Manual Control Speed | Pan: 0.1°–160°/s Tilt: 0.1°–60°/s | ||||||||
| Preset Speed | Pan: 160°/s Tilt: 60°/s | ||||||||
| Presets | 300 | ||||||||
| Tour | 8 (up to 32 presets per tour) | ||||||||
| Pattern | 5 | ||||||||
| Scan | 5 | ||||||||
| Speed Adjustment | Support | ||||||||
| Power-off Memory | Support | ||||||||
| Idle Motion | Preset/Tour/Pattern/Scanning | ||||||||
| Protocol | DH-SD Pelco-P/D (auto recognition) | ||||||||
| Artificial Intelligence | |||||||||
| Video Metadata | Support human body, human face, motor vehicle and non-motor vehicle image capture and attributes extraction. | ||||||||
| Perimeter Protection | Tripwire and intrusion. Support alarm triggering by target types (human and vehicle). Support filtering false alarms caused by animals, rustling leaves, bright lights, etc. | ||||||||
| Auto Tracking | Support | ||||||||
| Face Recognition | Support | ||||||||
| General Intelligence | |||||||||
| Event Trigger | Motion detection, video tampering, scene changing, network disconnection, IP address conflict, illegal access, and storage anomaly. | ||||||||
| IVS | Object abandoned/missing | ||||||||
| Video | |||||||||
| Compression | H.265, H.264 Main/High/Baseline Profile, MJPEG (sub stream) | ||||||||
| Streaming Capability | 3 Streams | ||||||||
| Resolution | 1080P (1920 × 1080); 1.3M (1280 × 960); 720P (1280 × 720); D1 (704 × 576); CIF (352 × 288) | ||||||||
| Frame Rate | Main stream: 1080P/1.3M/720P (1–25/30 fps) Sub stream 1: D1/CIF (1–25/30 fps) Sub stream 2: 1080P/1.3M/720P (1–25/30 fps); D1/CIF (1–25/30 fps) | ||||||||
| Bit Rate Control | Variable/Constant | ||||||||
| Bit Rate | H.264: 1792 kbps–9216 kbps H.265: 512 kbps–5632 kbps | ||||||||
| Day/Night | Auto (ICR)/Color/B/W | ||||||||
| BLC | Support | ||||||||
| WDR | 120 dB | ||||||||
| HLC | Support | ||||||||
| White Balance | Auto/Indoor/Outdoor/Tracking/Manual/Sodium lamp/Natural light/Street lamp | ||||||||
| Gain Control | Auto/Manual | ||||||||
| Noise Reduction | 2D/3D | ||||||||
| Motion Detection | Support | ||||||||
| Region of Interest (RoI) | Support | ||||||||
| Image Stabilization | Electronic | ||||||||
| Defog | Optical | ||||||||
| Digital Zoom | 16x | ||||||||
| Flip | 180° | ||||||||
| Privacy Masking | Up to 24 areas | ||||||||
| Audio | |||||||||
| Compression | G.711A; G.711Mu; G.726; AAC; G.722.1; G.723; G.729; PCM; MPEG2-Layer2 | ||||||||
| Port | |||||||||
| Audio Input | 1 | ||||||||
| Audio Output | 1 | ||||||||
| Alarm I/O | 7/2 | ||||||||
| Analog Output | 1 BNC | ||||||||
| RS-485 | 1 | ||||||||
| Network | |||||||||
| Ethernet | RJ-45 (10/100Base-T) | ||||||||
| Protocol | IPv4; IPv6; HTTP; HTTPS; 802.1x; QoS; FTP; SMTP; UPnP; SNMPv1/v2c/v3 (MIB-2); DNS; DDNS; NTP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE | ||||||||
| Interoperability | ONVIF Profile S&G&T; CGI | ||||||||
| Streaming Method | Unicast/Multicast | ||||||||
| User/Host | 20 (Total bandwidth 64M) | ||||||||
| Storage | FTP; Micro SD card (256G) | ||||||||
| Browser | IE7 and newer versions Chrome 42 and older versions Firefox 52 and older versions Safari | ||||||||
| Management Software | Smart Player Smart PSS DSS Easy4ip | ||||||||
| Mobile Phone | iOS/Android/Windows Phone | ||||||||
| Power | |||||||||
| Power Supply | DC 36V/2.23A ± 25% | ||||||||
| Power Consumption | 31.85W 61.35W (PTZ rotating, illuminator on, wiper on) | ||||||||
| Environment | |||||||||
| Operating Temperature | -40°C–70°C (-40°F–+158°F) | ||||||||
| Operating Humidity | ≤95% RH | ||||||||
| Protection | IP67; TVS 6000V lightning protection; surge protection | ||||||||
| Structure | |||||||||
| Dimensions | 210.7 mm × 366.5 mm × 498.7 mm (8.30" × 14.43" × 19.63") | ||||||||
| Net Weight | 14 kg (30.86 lb) | ||||||||
| Gross Weight | 19.77 kg (43.59 lb) | ||||||||
