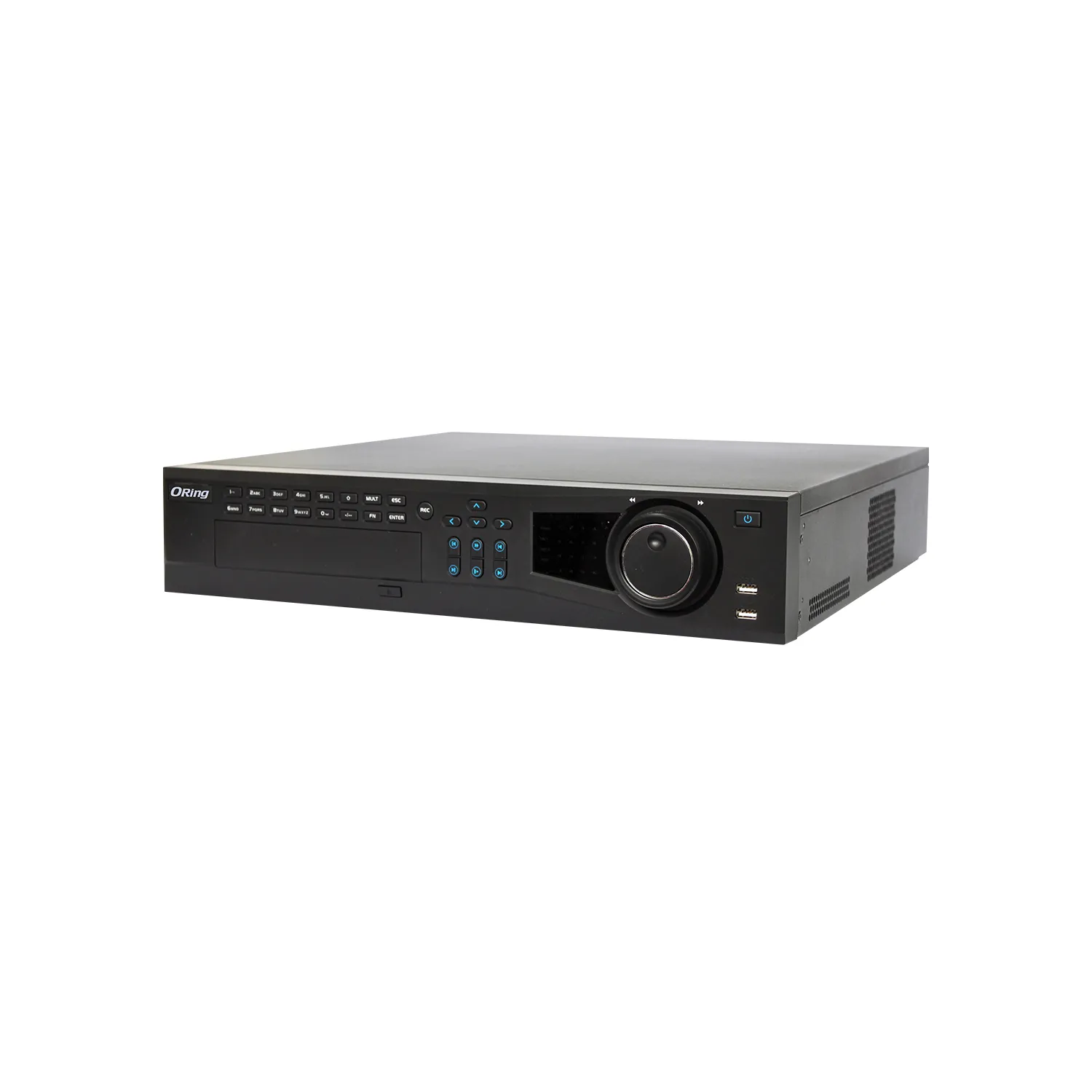

32 Kanal Penta-brid 1080P Lite 2U XVR

Name: 32 Kanal Penta-brid 1080P Lite 2U XVR
Brand: ORing
SKU: OR-XVR5832S

Артикул: OR-XVR5832S

Records analog and IP cameras on a single unit.

A 32 channel XVR that records HDCVI, AHD, TVI, CVBS and IP cameras at the same time. The 2U chassis holds up to 8 disks and carries the recording load of large camera installations.

32Number of Channels

5 MPMax. IP camera resolution

H.264+Video Compression

8 × 8 TBMax HDD Capacity

128 MbpsIncoming bandwidth

Key features

Video inputDetects HDCVI, AHD, TVI, CVBS and IP sources automatically.

Recording resolutionRecords 4MP Lite and 1080P on every channel.

Frame rateRecords 1080P at 15 fps and 720P at 30 fps.

StorageHolds 8 disk bays and takes up to 8 TB per disk.

ConnectivityCarries 2 Gigabit ports, 2 USB3.0 and 2 USB2.0 interfaces.

Intelligent videoDistinguishes tripwire, intrusion, missing object and face recognition events.

Technical Specifications
Video Compression	H.264+/H.264
Audio Compression	G.711/PCM
Video Standard	HDCVI/AHD/CVBS/TVI (Auto Detect)
Max. Recording Resolution	CH01-32: 4MP Lite/1080P
Max. HDCVI Recording Frame Rate	4MP Lite@15fps 1080P@15fps 720P@30fps
CVBS Input	32CH, 1.0Vp-p, 75Ω
IP Camera Input	32 up to 5MP
Max. IP Input/Recording	128Mbps/128Mbps
Audio Input/Output	16/1, 2-way talk
Max. HDD	8×8TB
Display	2 HDMI/VGA (1920×1080), TV
eSATA	1
USB	2 USB3.0, 2 USB2.0
DVD Writer	USB/SATA
Alarm Input/Output	16/6
Ethernet	2 Gigabit ports
Max. Remote Users	128
Dimensions	440×455×95mm (17.3"×17.9"×3.7")
Power	AC 100-240V, 50/60Hz, ≤40W (without HDD)
Intelligent Video	Tripwire, Intrusion, Abandoned/Missing Object, Face Detection
Star Features	P2P, Coaxial Audio/Alarm/Upgrade, 2D/3D NR

Datasheet

OR-XVR5832S

pdf2/18/2019
