Brings the door station, IP cameras and the mobile app onto one screen.

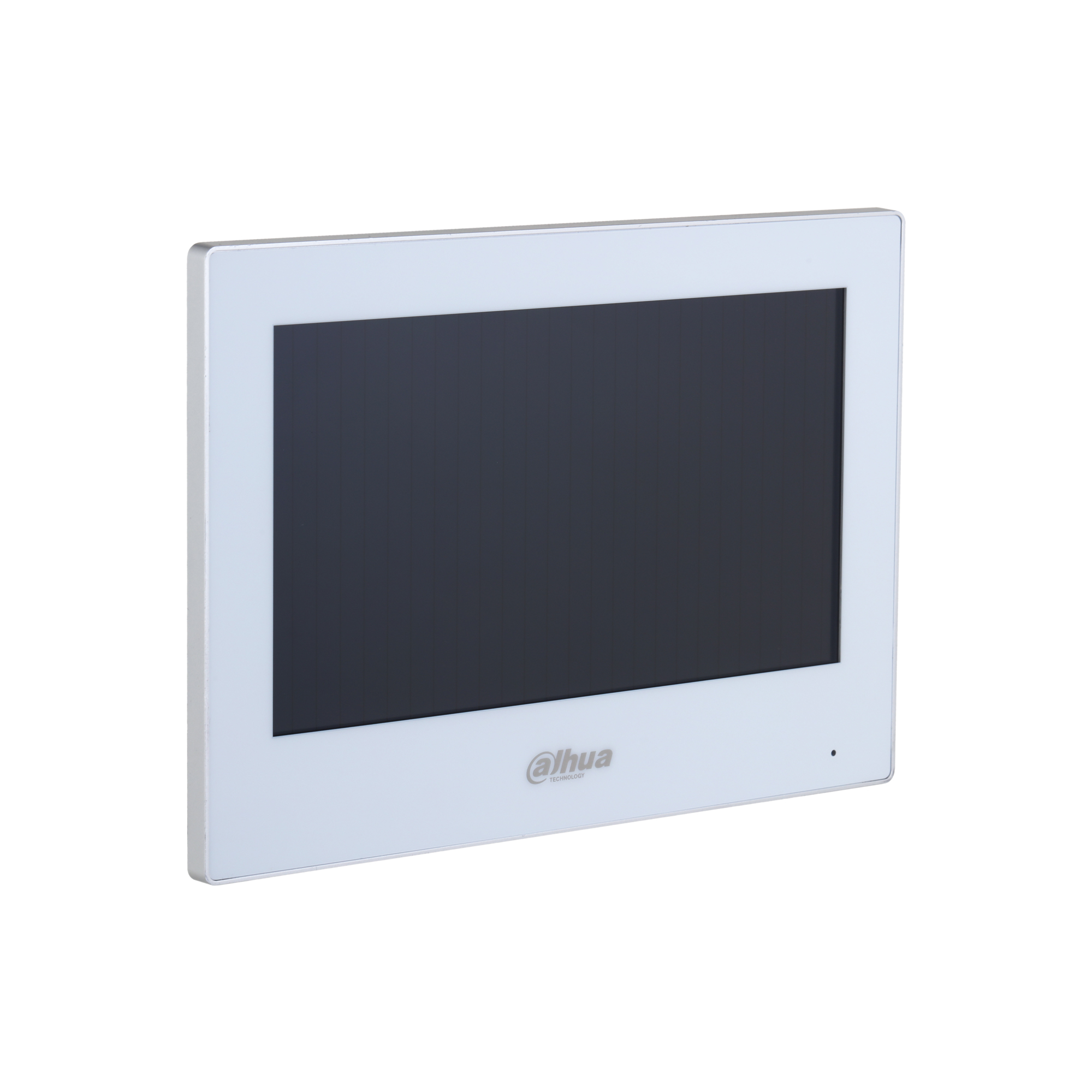

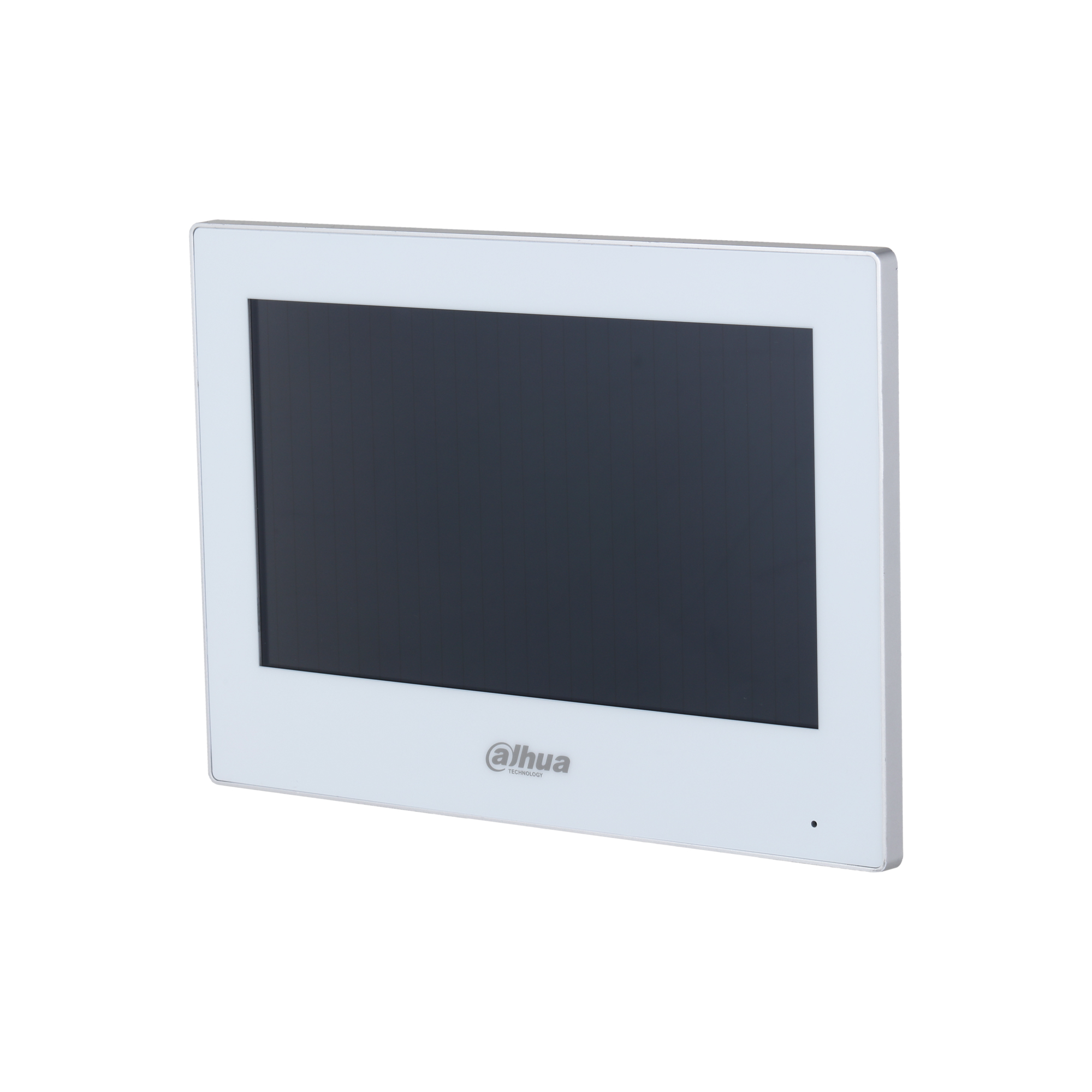

A hybrid indoor monitor that works with analog and digital door stations. The 7-inch capacitive touchscreen displays 1024 × 600 images, and built-in Wi-Fi plus standard PoE widen the installation options. H.264 decoding brings IP camera views onto the same screen.

7"TFT touchscreen

1024 × 600Resolution

12 V DC / PoEPower Options

≤ 8.9 WWorking consumption

64 GBMemory Card Support

-10 °C ~ +55 °COperating Temperature

Key features

Hybrid connectivityIt links to analog and digital door stations and to analog and digital indoor monitors on the same line.

Wi-Fi and PoEBuilt-in Wi-Fi joins the monitor to the wireless network, while standard PoE carries data and power over one Ethernet cable.

App managementThe mobile app forwards calls and alarm messages to the phone and runs remote monitoring and door unlocking.

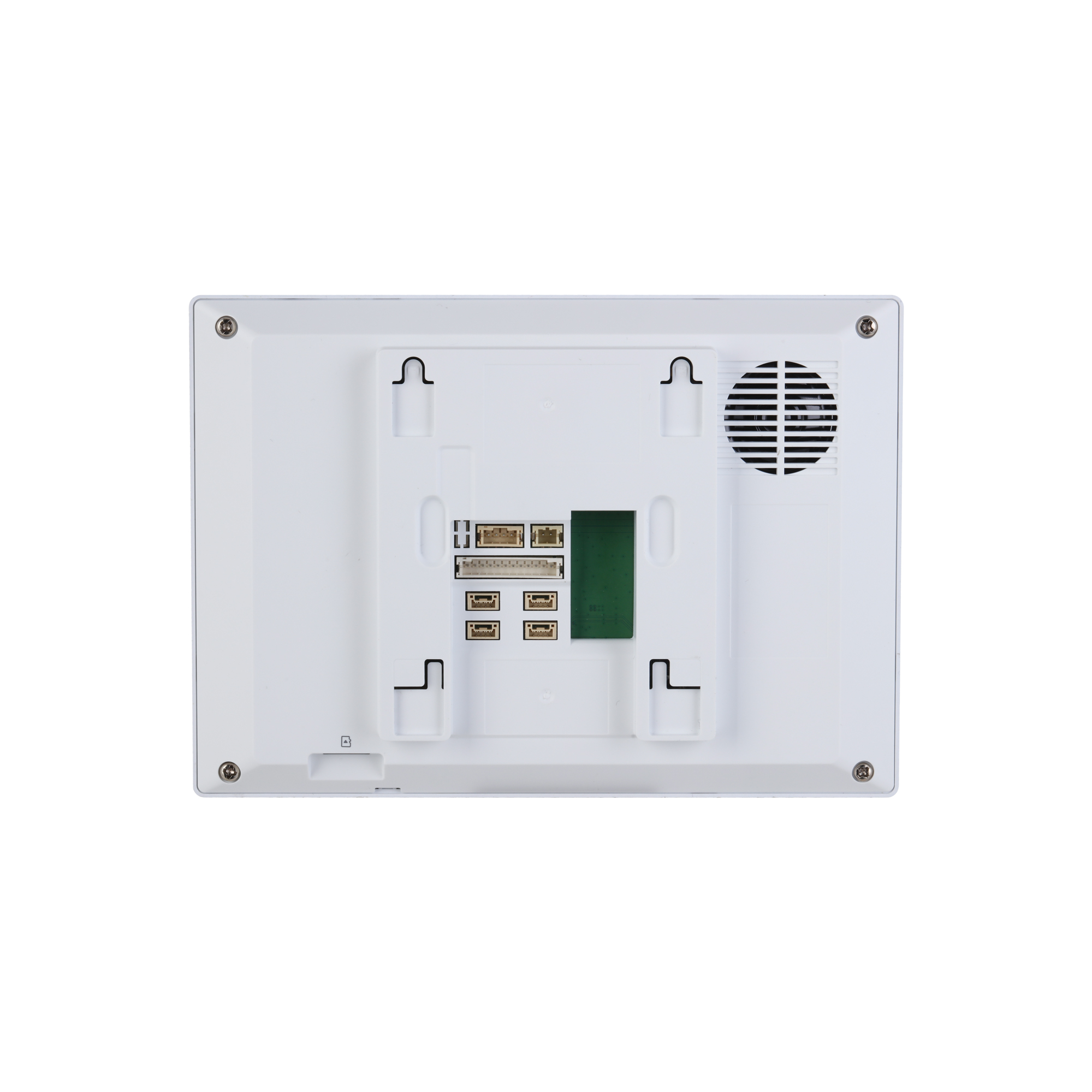

Alarm wiring6-channel alarm input and 1-channel alarm output connect devices such as a magnetic contact and a siren to the monitor.

Recording and snapshotsA Micro SD card of up to 64 GB stores the video and photos taken during a call.

IP camera supportIt connects directly to IPCs and puts camera views next to the door image on screen.

Display & System Features

Operating System / Processor

Embedded Operating System / Embedded Processor

Display Type & Size

7" TFT Capacitive Touchscreen (1024 × 600)

Communication / Wi-Fi

Full Digital & Analog / Built-in Wi-Fi (IEEE802.11b/g/n)

Audio Features

Two-way Audio (Full-duplex via App) / Echo Suppression & DNR

Connectivity & Functions

Network / 4-Wire Interface

1x RJ-45 10/100 Mbps / 4-ch 4-wire Ports

Alarm Input/Output

6x Alarm In / 1x Alarm Out / Doorbell Support

Storage / Other

Micro SD (Max. 64 GB) / Info Reception & Video Recording

General Parameters

Power Supply

12 VDC, 1 A / Standard PoE

Power Consumption

Standby ≤ 3.8 W / Working ≤ 8.9 W

Dimensions / Housing

189.57 mm × 134.57 mm × 26 mm / PC + ABS

Operating Temperature / Humidity

–10 °C to +55 °C / 10%–90% RH
