Carries an emergency call to the center with both sound and video.

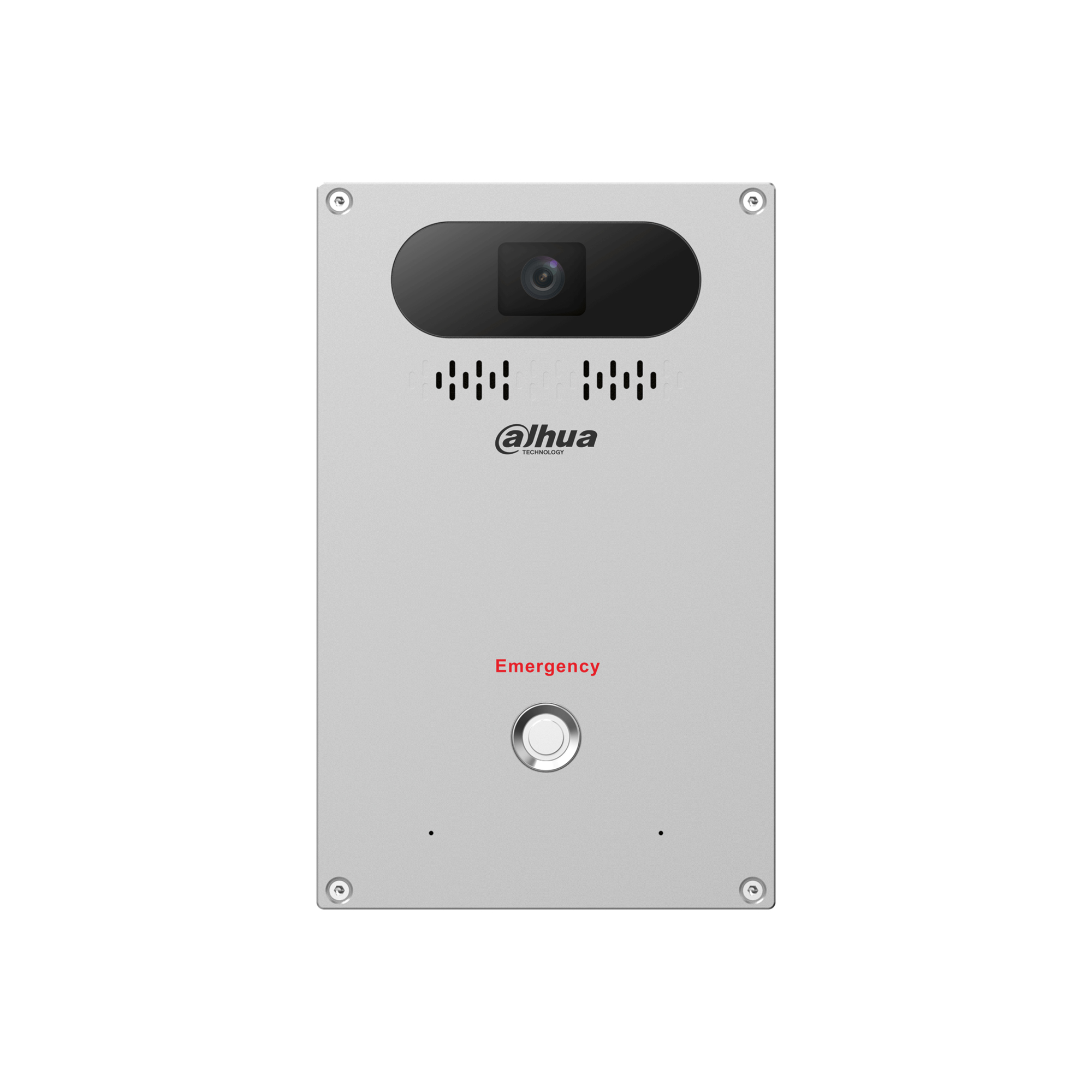

It is an outdoor emergency call terminal with a camera. During a call opened with a single button it records video and handles voice announcements.

4 MPCamera resolution

IP65Protection Grade

IK10Impact rating

2 × 10/100MNetwork ports

12 VDC, 3 APower supply

-30 °C ~ +60 °COperating Temperature

Key features

One-click help callA single button sends the call straight to the center.

4 MP cameraA 4 MP CMOS camera with low illumination performance and a starlight sensor shows the moment of the call.

Video recording and snapshotsWith H.265 compression it records up to 2512 × 1408 on the main stream and writes snapshots to a Micro SD card of up to 64 GB.

Clear audio setupBuilt-in dual microphones and dual speakers carry speech clearly, while echo suppression and digital noise reduction cut background noise.

PoE power and outputsIt takes power from a standard PoE line and provides 2 power outputs, 12 V/1 A and 12 V/200 mA.

Outdoor housingThe aluminum alloy body carries IP65 and IK10 protection and works between -30 °C and +60 °C.

System & Video Features

Main Processor / OS

Embedded Processor / Embedded Linux OS

Camera Resolution

4 MP CMOS High-Definition (Low Illumination)

Field of View / Night Vision

H: 104°; V: 57°; D: 113° / Auto IR (ICR)

Video Compression

H.264; H.265 / Main Stream up to 2512 × 1408, Sub Stream 1280 × 720

Audio & Functionality

Audio Interface

Built-in Dual Mic & Dual Speaker; External 3.5 mm Input Support

Audio Enhancement

Echo Suppression / Digital Noise Reduction (DNR)

Storage / Snapshot

Micro SD (Max. 64 GB) / Auto Snapshot

Connectivity & Physical Parameters

Ports & Alarms

1× RS-485, 2× Alarm In, 2× Alarm Out, 2× Network (10/100M), Tamper Alarm

Power Supply / Output

12 VDC, 3 A / Standard PoE / 2× Power Output (12V/1A; 12V/200mA)

Protection / Material

IP65, IK10; Aluminum Alloy (Silver)

Dimensions / Environment

190.0 mm × 120.0 mm × 42.0 mm / -30°C to +60°C
