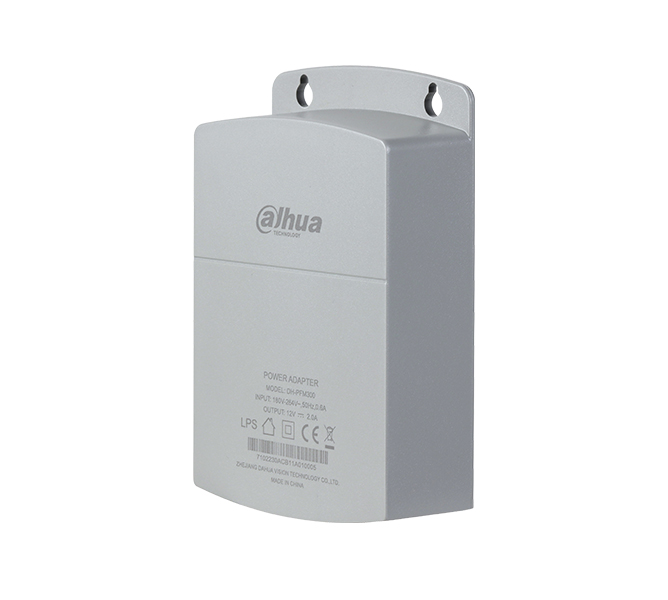

Артикул: PFM300
| Electrical Specification | |
|---|---|
| Rated Input | AC180~264V, 50/60Hz, 0.6A |
| Efficiency | 82% |
| No-load Power Consumption | <0.5 W |
| Output Voltage | DC12V (±5%) |
| Output Current | 2A (±2%) |
| Protection / Environmental | |
| Protection | Accurate over current and voltage load protection; "V0" fire protection |
| Working Temperature | -30°C ~ +70°C (-22°F ~ +158°F) |
| Working Humidity | <90% RH |
| Physical Properties | |
| Weight | 160 g (0.35 lb) |
| Dimension (L×W×H) | 88 mm × 37 mm × 138 mm (3.46" × 1.46" × 5.43") |
| Installation | Wall mount |
| Color | Grey |
| Input | Palisade terminal |
| Output | DC output wire 60 mm (interface: φ5.5 × φ2.1) |
| Safety Standards | |
| Certification | CE |
