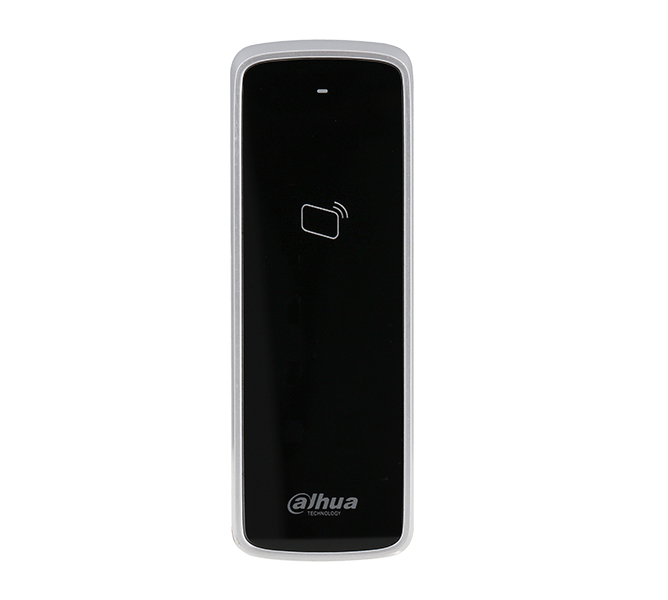

A slim reader that reads the card at the door and passes the credential to the panel.
A slim RFID card reader for outdoor door entrances. It reads the card, sends the credential to the control panel over RS485 or Wiegand 34, and leaves the door decision to the panel. The IP55 housing works outdoors between -30°C and +60°C.
125 KHzRead format
1 cm–2 cmRead range
RS485 / Wiegand 34Interface
IP55Protection grade
9 V–15 V DCPower supply
-30°C / +60°COperating temperature
Key features
Card readingReads 13.56 MHz Mifare and 125 KHz EM-ID cards in 0.1 seconds.
Panel connectionSupports RS485 and Wiegand 34 protocols; Wiegand 26 is optional.
Outdoor housingThe IP55 housing operates outdoors between -30°C and +60°C.
Tamper alarmTriggers a tamper alarm when the cover is forced; red and blue LEDs and the buzzer report the status.
Uninterrupted operationThe watchdog function keeps the device running without halting.
InstallationThe 135 mm × 47.5 mm × 16 mm body supports surface and flush mounting.
