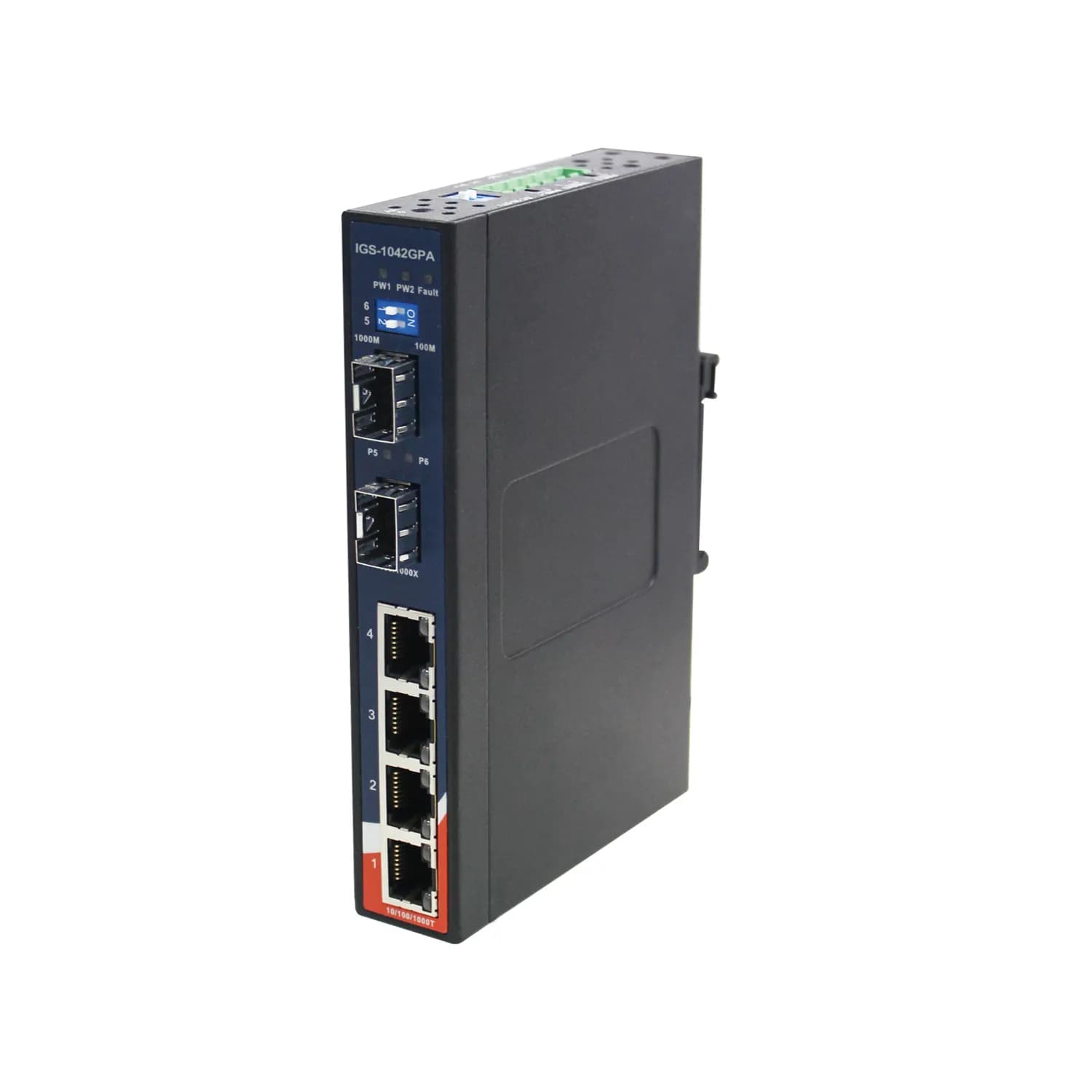

The slim switch brings copper Gigabit access together with a fiber uplink.
4 x 10/100/1000Base-T(X) ports connect field devices, and 2 x 100/1000Base-X SFP slots carry fiber to a remote point. The unmanaged switch needs no configuration, and the IP-30 housing sits on a DIN-Rail or a wall.
4 x Gigabit RJ-45 portsThe copper ports support auto-negotiation and auto MDI/MDI-X.
2 x SFP slotsThe fiber uplink connects at 100Base-FX or 1000Base-X speed.
SFP speed by DIP switchWith DIP-Switch 1 and DIP-Switch 2 on, the SFP speed becomes 100 Mbps; with both off it becomes 1000 Mbps.
Store-and-forward processingA table holding 1K MAC addresses steers local traffic to the right port.
IP-30 housingThe slim metal body fits a narrow cabinet and supports DIN-Rail and wall mounting.
Dual power indicatorThe yellow fault LED shows an interruption on the PWR1 or PWR2 feed.
