Carries both power and data to indoor monitors over Cat 5e cable.

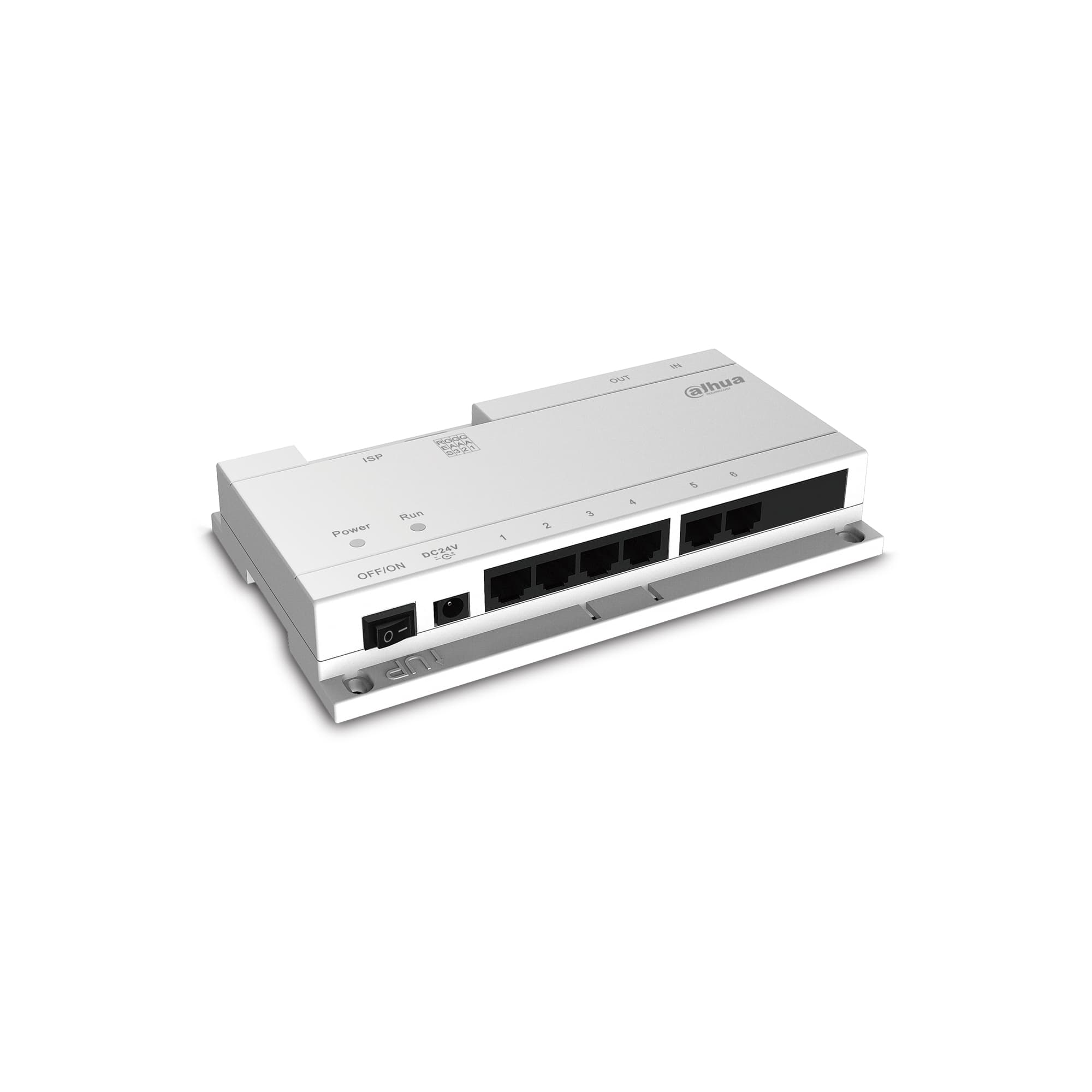

A network power supply for IP video intercom systems. It powers up to 6 indoor monitors over Cat 5e cable and passes data through the same cable.
24 VVoltage
45 WMax. power consumption
0.2 WStandby consumption
-10 °C ~ +55 °COperating Temperature
0.3 kgWeight
Key features
Power and data on one cableA Cat 5e cable carries power and data together to 6 indoor monitors.
Protocol based switchIt works as a protocol network power supply switch.
Low standby drawIt draws 0.2 W with no load and climbs to 45 W at full load.
Compact bodyIt measures 178.8 mm × 107.1 mm × 30.3 mm and weighs 0.3 kg.
