Connects over wireless, shows the visitor and opens the door remotely.

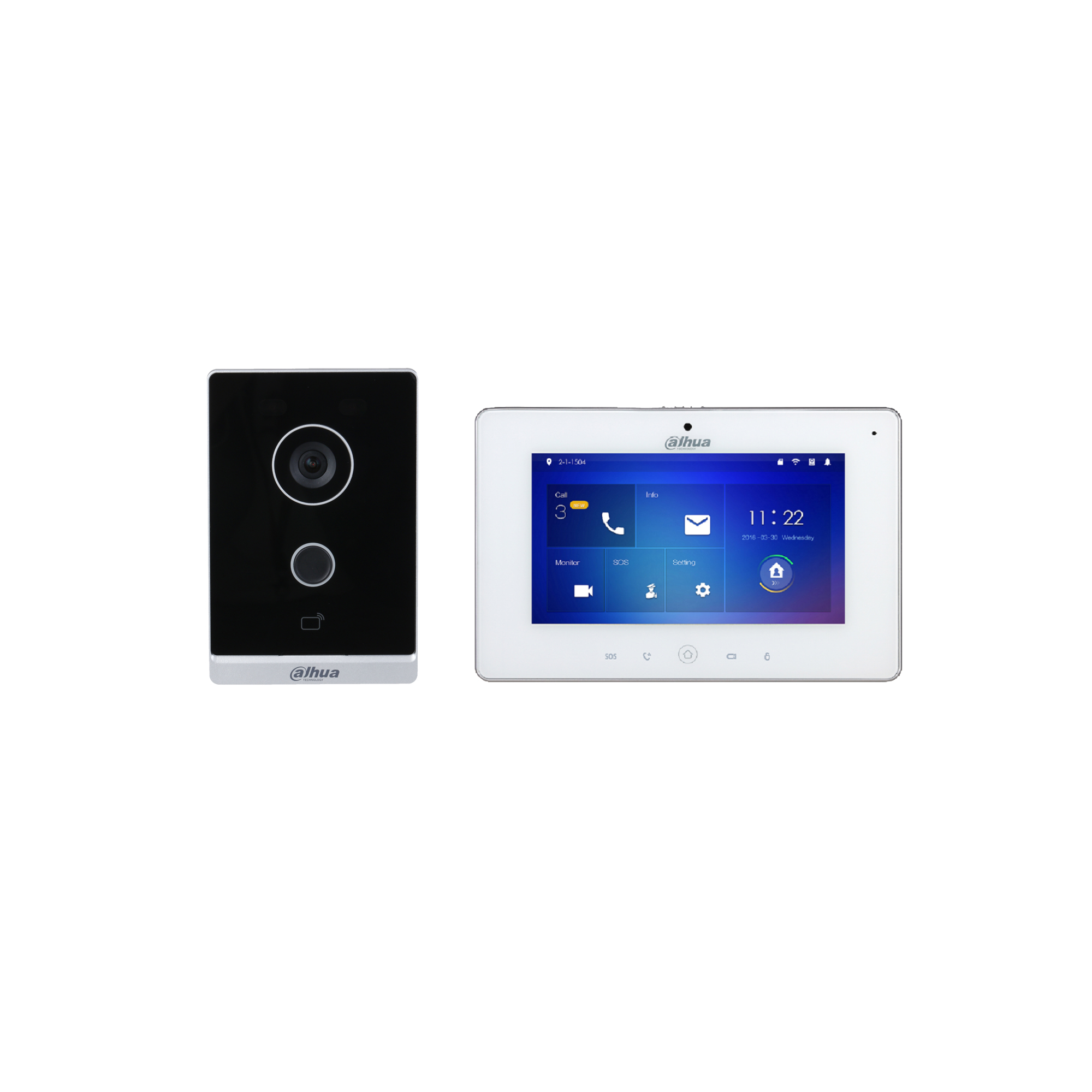

A video intercom kit made up of a Wi-Fi door station and a touchscreen indoor monitor. The slim door station keeps the doorway visible after dark, and the indoor monitor gathers the connected IP cameras and the alarm channels on one screen.
IP65Protection Grade
PoEPower Options
2 MPImage sensor
125°Horizontal field of view
7 inchIndoor monitor display
1024 × 600Display resolution
Key features
2MP
Megapixel sensor
The 1/2.8 inch CMOS sensor and 120 dB WDR pick out faces against backlight.
125degrees
Horizontal field of view
A 71° vertical and 142° diagonal angle covers the doorway widely.
IP65rating
Outdoor durability
The door station resists dust and water.
256GB
Micro SD support
The door station writes automatic snapshots to the card.
8channels
Wireless alarm
The indoor monitor gathers 6 wired and 8 wireless alarm channels.
7inch
Indoor monitor
The 1024 × 600 capacitive touchscreen shows video and menus.
EVERYDAY USEThree ways to unlockA card, the indoor monitor and the mobile app all open the door.
IPC surveillanceThe indoor monitor also shows the view from connected IP cameras.
Wireless installationThe door station joins the wireless network and cuts cable pulling.
Wireless alarm integration supports 433 MHz only. IP65 protection requires silicone sealant during enclosure installation.
