Артикул: XGSW-28040HP
Cost-Effective Managed Switch Solutions with 10Gbps Uplink for Wide-Range Applications

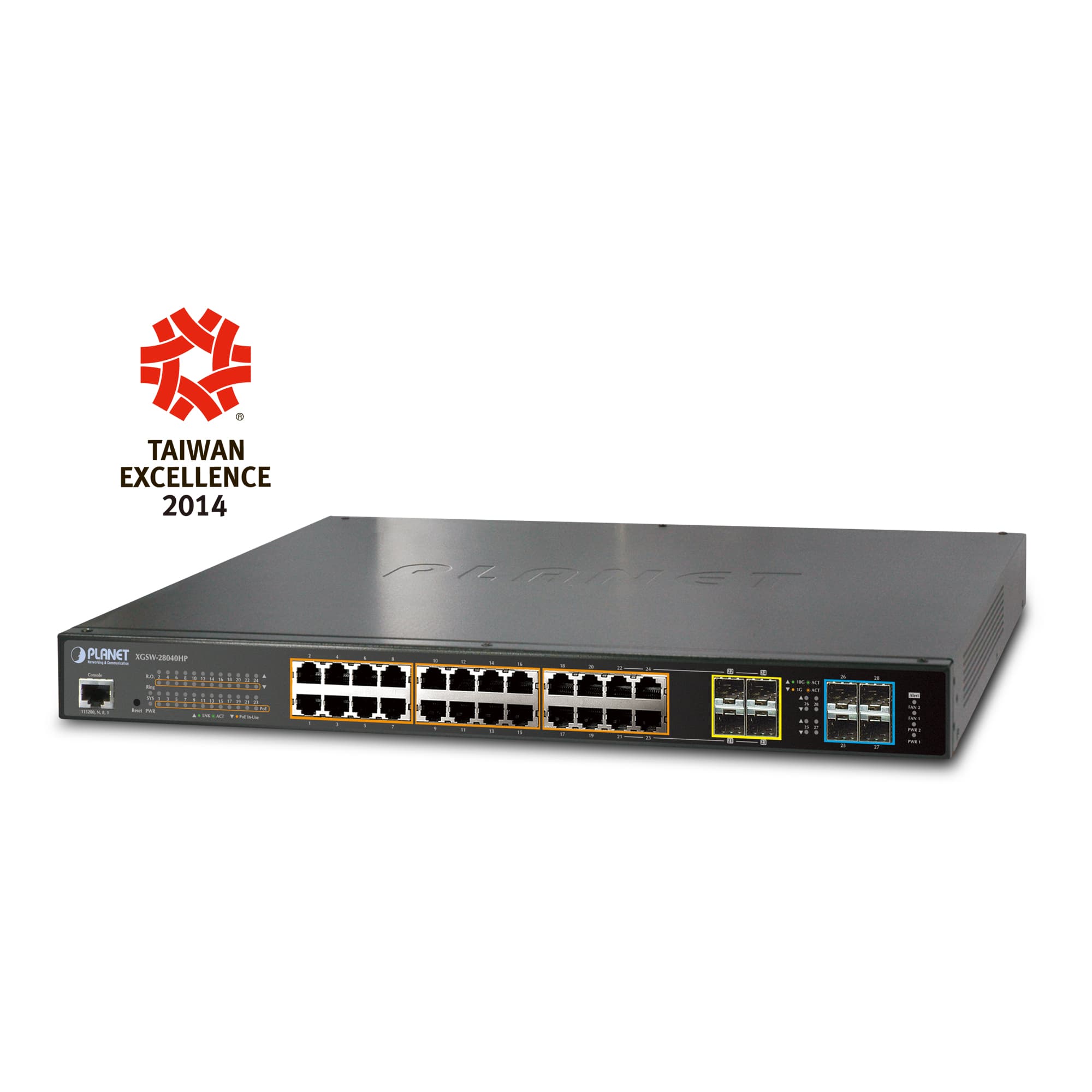

The XGSW-28040HP Series next-generation managed Gigabit PoE switches are equipped with PLANET's intelligent PoE features to support critical business applications. The series offers IPv6/IPv4 Layer 3 static routing, a built-in L2/L4 Gigabit switch engine, 24 10/100/1000Base-T 802.3at PoE+ ports, 4 Gigabit SFP slots, and 4 10Gbps SFP+ slots. With a total power budget of up to 440W, these switches deliver a fast, secure, and cost-effective Ethernet network solution for IP surveillance in SMBs and enterprises.
Centralized Power Management for Gigabit Ethernet PoE Networks
To meet the high power requirements of Gigabit PoE networks, the XGSW-28040HP series supports IEEE 802.3at Power over Ethernet Plus (PoE+) with up to 30 watts per port over a single Cat 5e/6 Ethernet cable. This is ideal for powering high-consumption network devices such as IR, PTZ, Speed Dome cameras, and box-type IP cameras with built-in heaters/fans. The switch provides flexible power support for both IEEE 802.3af and 802.3at compliant devices.
Exclusive Built-in PoE Management Features for Powered Devices
As a managed PoE switch tailored for surveillance, wireless, and VoIP networks, the XGSW-28040HP series offers advanced PoE management features including:
• PD ALIVE Check
• Scheduled Power Recycle
• SMTP/SNMP Trap Event Alert
• PoE Scheduling
Smart PD Alive Check for Auto Recovery
The switch monitors real-time ping responses from Powered Devices (PDs). If a PD becomes unresponsive, the switch automatically restarts the PoE port to restore functionality. This helps minimize downtime, reduce management overhead, and maintain reliable network operation.
SMTP/SNMP Event Notification Alerts
While many NVRs and camera management software support SMTP email alarms, XGSW-28040HP goes beyond by integrating PoE failure and PD reboot detection. This feature enables faster diagnostics and alerting in case of connectivity or power issues.
Power Scheduling for Energy Savings
In support of global energy-saving initiatives, XGSW-28040HP offers per-port PoE scheduling to control power usage during non-operational hours, reducing power consumption and operational costs.
IPv6-Ready Network Management
With the increasing deployment of IP cameras and wireless devices, IPv6 support has become essential. The XGSW-28040HP supports both traditional IPv4 and next-gen IPv6 protocols, offering future-ready capabilities with an intuitive and user-friendly management interface—making it ideal for ISPs and businesses alike.
Secure & Flexible VLAN Routing for IPv4 and IPv6
To help organizations stay competitive, XGSW-28040HP delivers high-speed performance and superior Layer 2 technology, plus hardware-based IPv4/IPv6 VLAN routing to enable secure and simplified network applications across different VLANs and subnets.
Advanced Network Security Features
For maximum security, the switch includes a comprehensive Layer 2–4 Access Control List (ACL) that filters traffic based on source/destination IPs, TCP/UDP ports, and predefined applications. Additional security mechanisms include:
802.1x port/MAC-based authentication
Private VLANs
IP surveillance protection
ARP inspection
DHCP snooping
IP source guard
Dynamic ARP inspection
These tools allow administrators to easily build secure corporate networks with reduced effort.
Robust Layer 2 Capabilities
The XGSW-28040HP supports advanced Layer 2 functions such as:
Dynamic link aggregation
Q-in-Q VLAN tagging
Multiple Spanning Tree Protocol (MSTP)
Layer 2–4 QoS
Bandwidth control
IGMP snooping
It supports up to 255 VLAN groups, 16 ports, and 12 link aggregation groups, offering failover capabilities and a high-performance working environment.
Superior Traffic Management
With robust traffic control and QoS capabilities, XGSW-28040HP ensures optimal service delivery for SMBs. It supports Layer 4 traffic prioritization and bandwidth management—crucial for applications like VoIP, video streaming, multicasting, and real-time communications used by ISPs and businesses.
