Dahua

Module

Name: Module
Brand: Dahua
SKU: VTO4202FB-MB1

Артикул: VTO4202FB-MB1

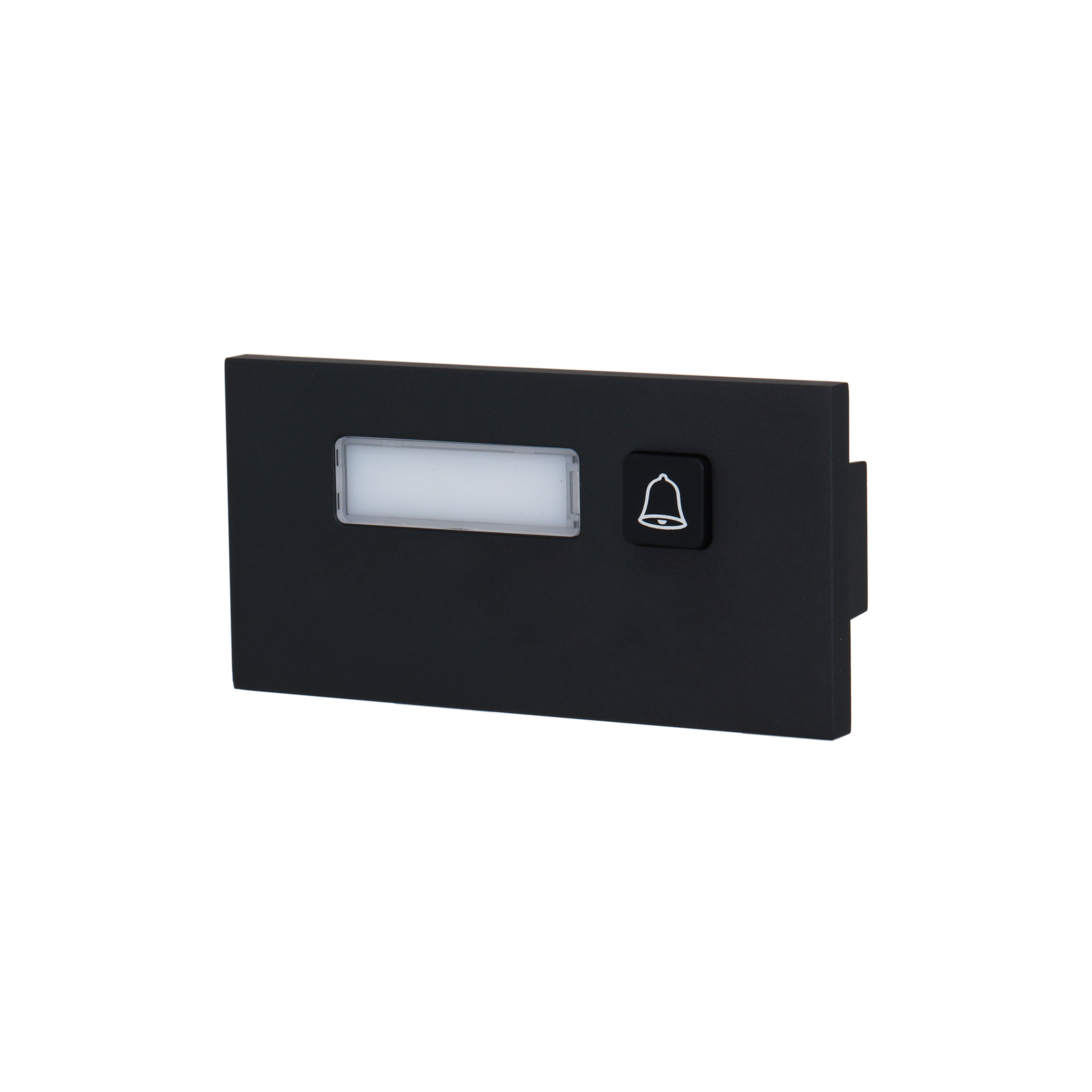

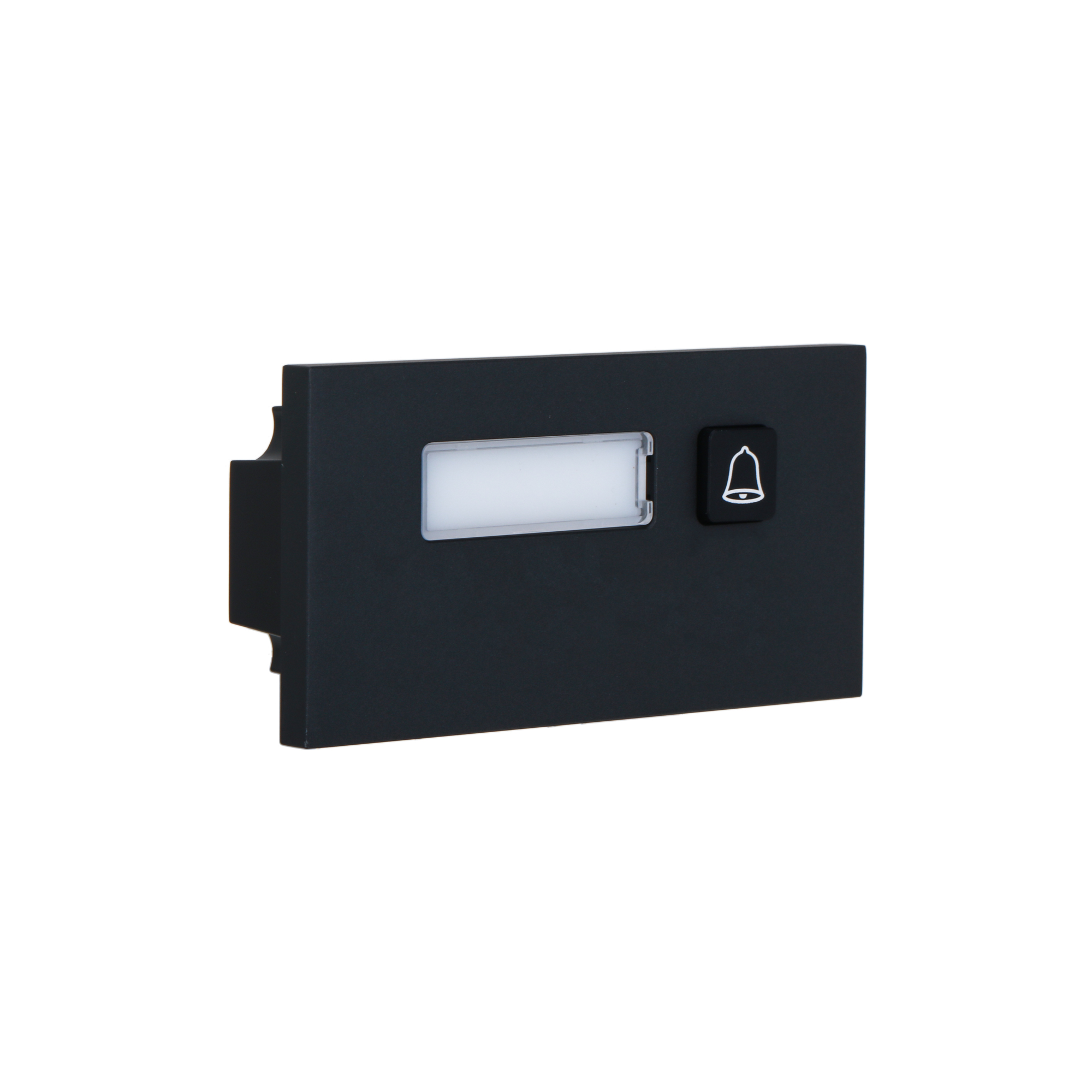

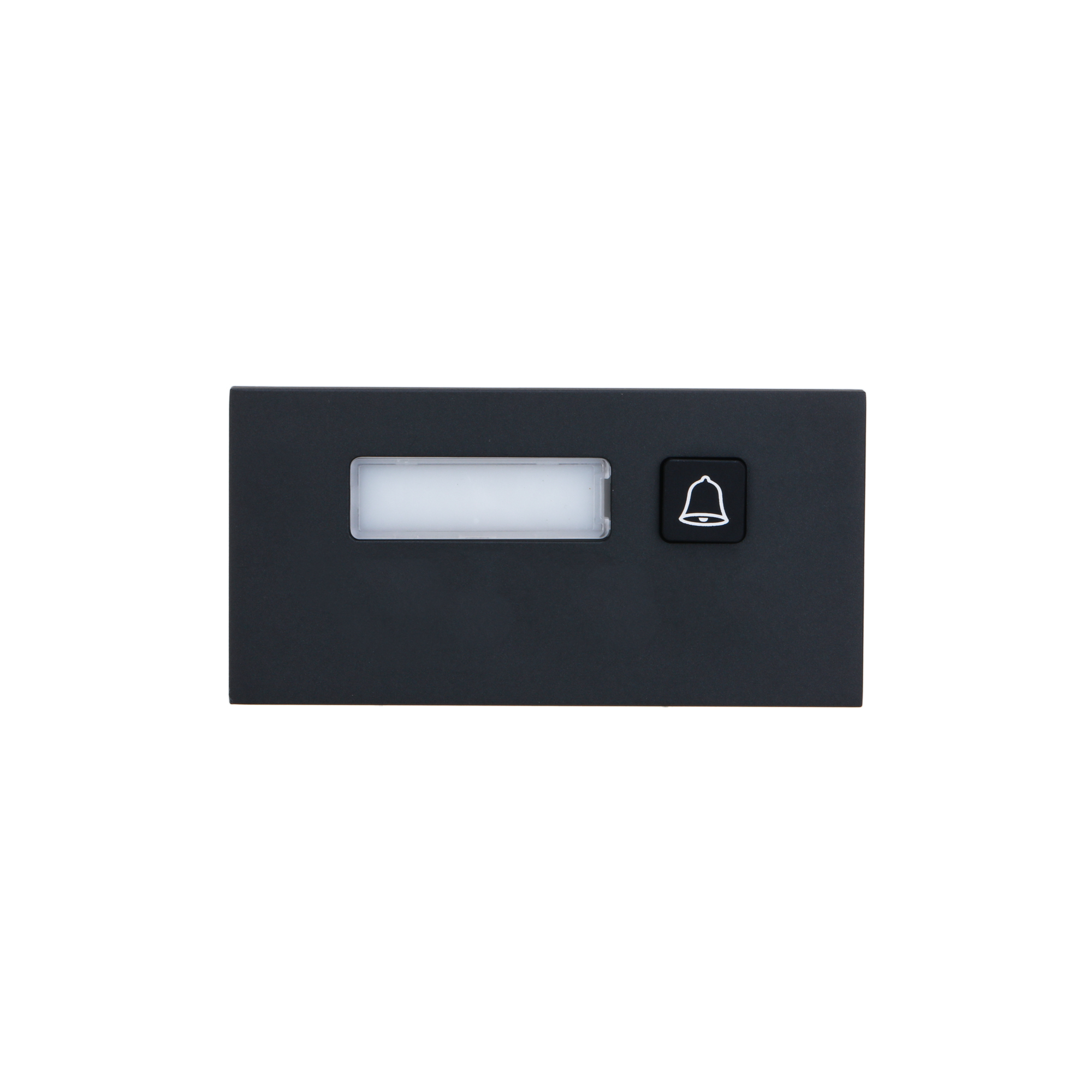

Adds a single call button to the door station

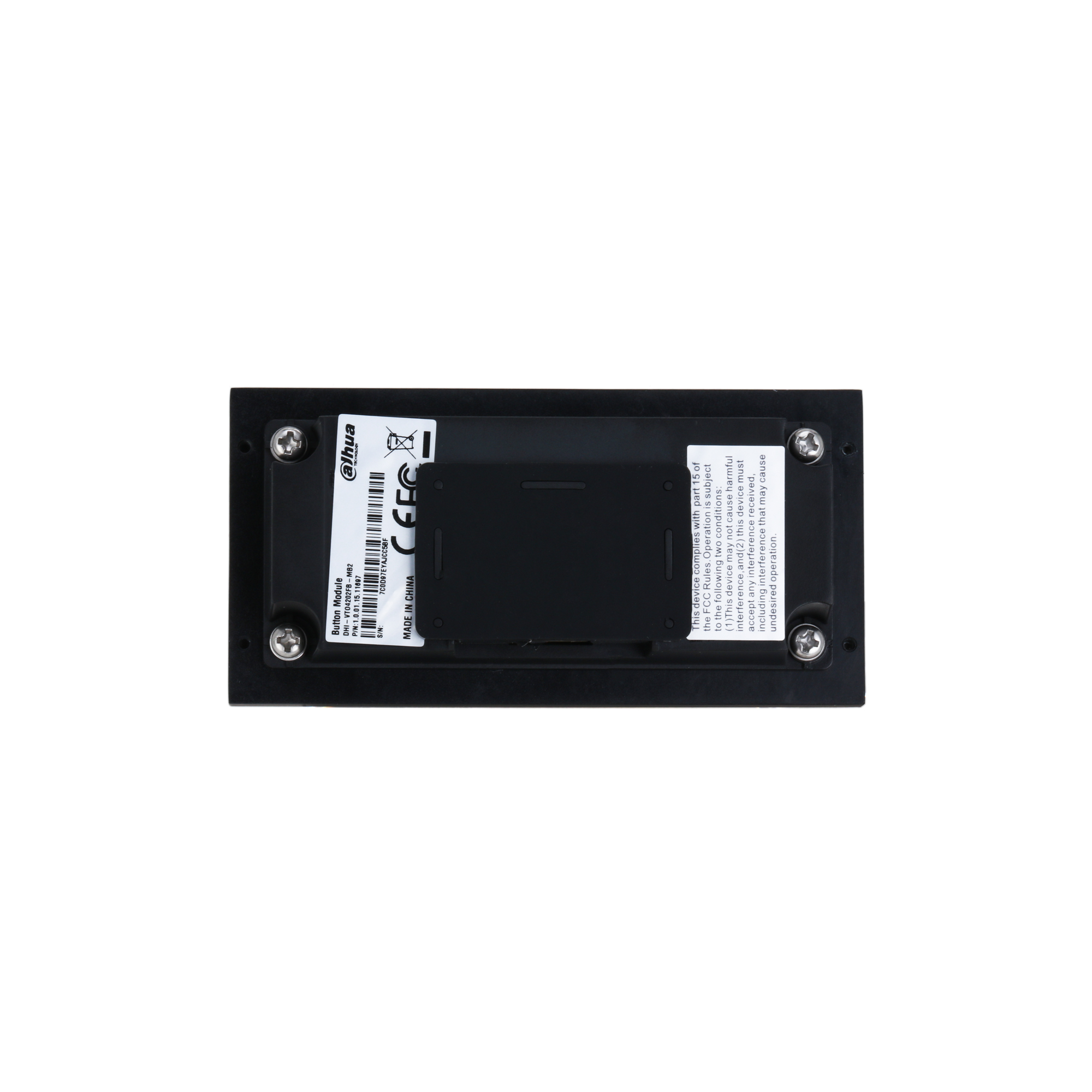

The mechanical button module of the modular door station calls one apartment with a single button. Its 100 × 50.0 × 30.50 mm aluminum alloy body sits next to the main camera module and draws power from the cascade connection between modules.

100 × 50.0 × 30.50 mmDimensions

0.18 kgGross weight

≤ 0.5 WPower consumption

IK07; IP65Protection Grade

-30 °C ~ +60 °COperating Temperature

5 VDCPower supply

Key features

Single mechanical buttonOne button calls one apartment and needs no menu or screen at the door.

Aluminum alloy bodyIK07 impact resistance and IP65 protection keep the module safe from rain and impact at an outdoor entrance.

Cascade powerThe module draws 5 VDC from the neighboring modules and needs no separate adapter.

Flush and surface mountingThe same body fits a flush box and a surface box alike.

Wide operating rangeIt works between -30 °C and +60 °C and at 10% to 90% relative humidity.

IP65 protection requires silicone sealant during installation.

DHI-VTO4202FB Black Series Modular Components Technical Specifications
Model	Function / Type	Dimensions (mm)	Gross Weight	Power Consumption
MB1 / MB2	1 / 2 Button Mechanical Module	100 × 50.0 × 30.50	0.18 kg / 0.17 kg	≤ 0.5 W
MB5	5 Button Mechanical Module	100 × 100 × 30.50	0.31 kg	≤ 0.5 W
MDB2 / MDB4	Advanced 2 / 4 Button Module	100.0 × 50.0 × 26.0	0.23 kg / 0.24 kg	≤ 0.6 W (Working)
MDB10	Advanced 10 Button Module	100.0 × 100.0 × 26.0	0.33 kg	≤ 0.6 W (Working)
MF	Fingerprint Reader Module	100 × 100 × 38.50	0.33 kg	≤ 0.5 W
MK	Keypad Module	100 × 100 × 31.0	0.32 kg	≤ 0.5 W
MR / MR1	IC (13.56 MHz) / ID (125 kHz) Card Reader	100 × 50.0 × 28.50	0.16 kg	≤ 2 W
MI / MS	Status Indicator / Info Screen	100 × 100 × 28.50	0.28 kg / 0.34 kg	≤ 0.5 W / ≤ 2 W
ML / MN	Status Light / Blank Panel Module	100 × 50.0 × 28.50	0.19 kg / 0.17 kg	≤ 2 W / ≤ 0.5 W
MV	Vigik Module Mounting Panel	100.0 × 50.0 × 6.0	0.28 kg	-
General Common Specifications
Casing Material	Aluminum Alloy
Appearance Color	Black
Protection Grade	IK07; IP65 (silicone sealant is needed for installation)
Operating Temperature	–30 °C to +60 °C (–22 °F to +140 °F)
Operating Humidity	10% to 90% (RH, non-condensing)
Power Supply	5 VDC (powered via cascade connection between modules)
Installation	Flush Mount / Surface Mount
