Adds a mechanical keypad to the modular system.
This unit belongs to a system where several modules sit side by side. An aluminum alloy body carries its mechanical keys, and the unit stands up to outdoor conditions.
IP65Protection Grade
IK07Impact resistance
5 VDCPower supply
-30 °C ~ +60 °COperating Temperature
Aluminum alloyCasing Material
Key features
Power across modulesTakes 5 VDC from the neighboring modules and passes power on to the others over the same line.
Outdoor protectionIK07 guards against impact, IP65 against dust and water.
Operating conditionsRuns from -30 °C to +60 °C at 10%-90% relative humidity.
Mounting optionsFits both flush and surface mounting.

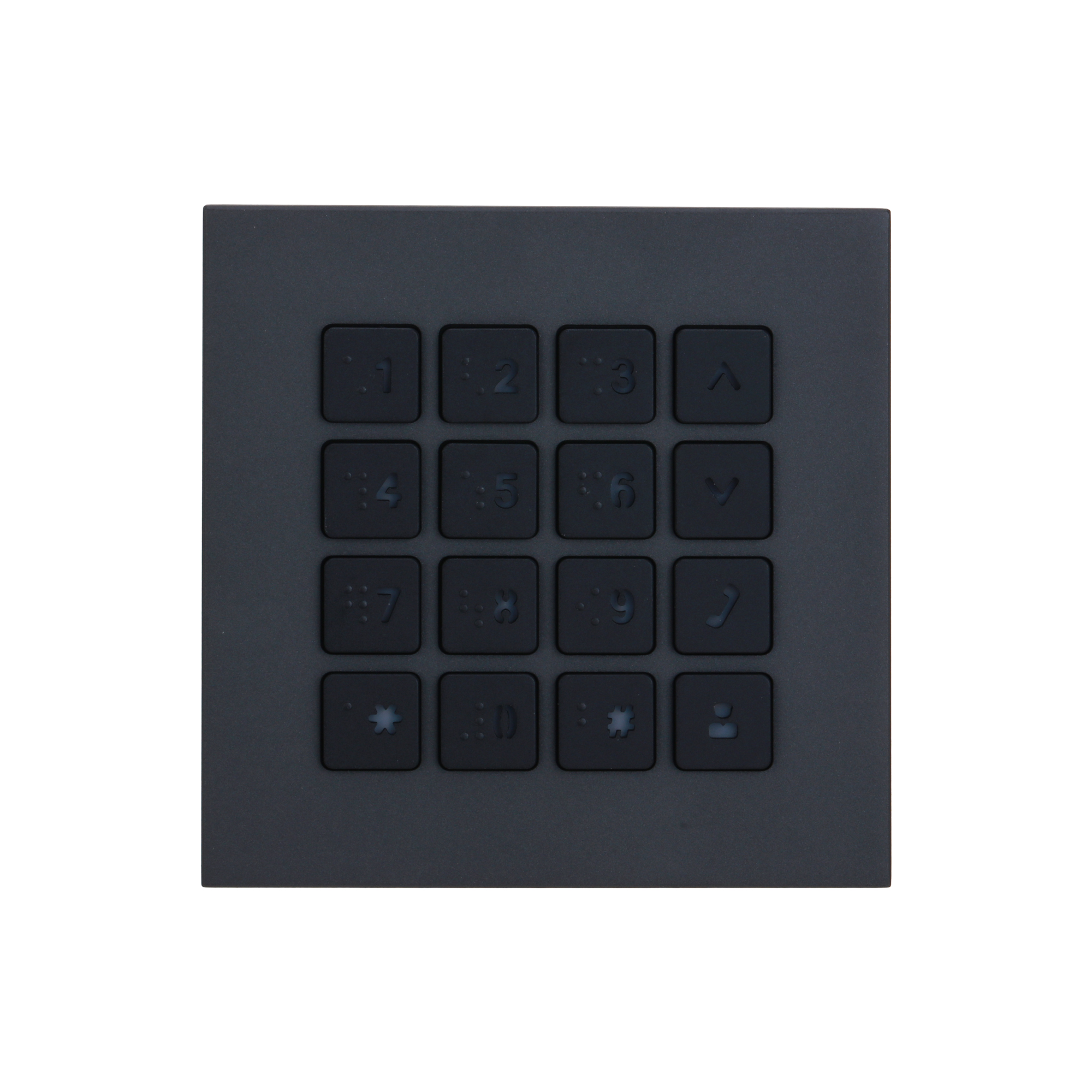

Mechanical keysThe keys are mechanical, and a black aluminum alloy body protects the keypad.
Dimensions and weightMeasures 100 mm × 100 mm × 31 mm with a gross weight of 0.32 kg.
Silicone sealant is required at installation; the IP65 rating depends on it.
