It calls a single apartment from the modular door panel.

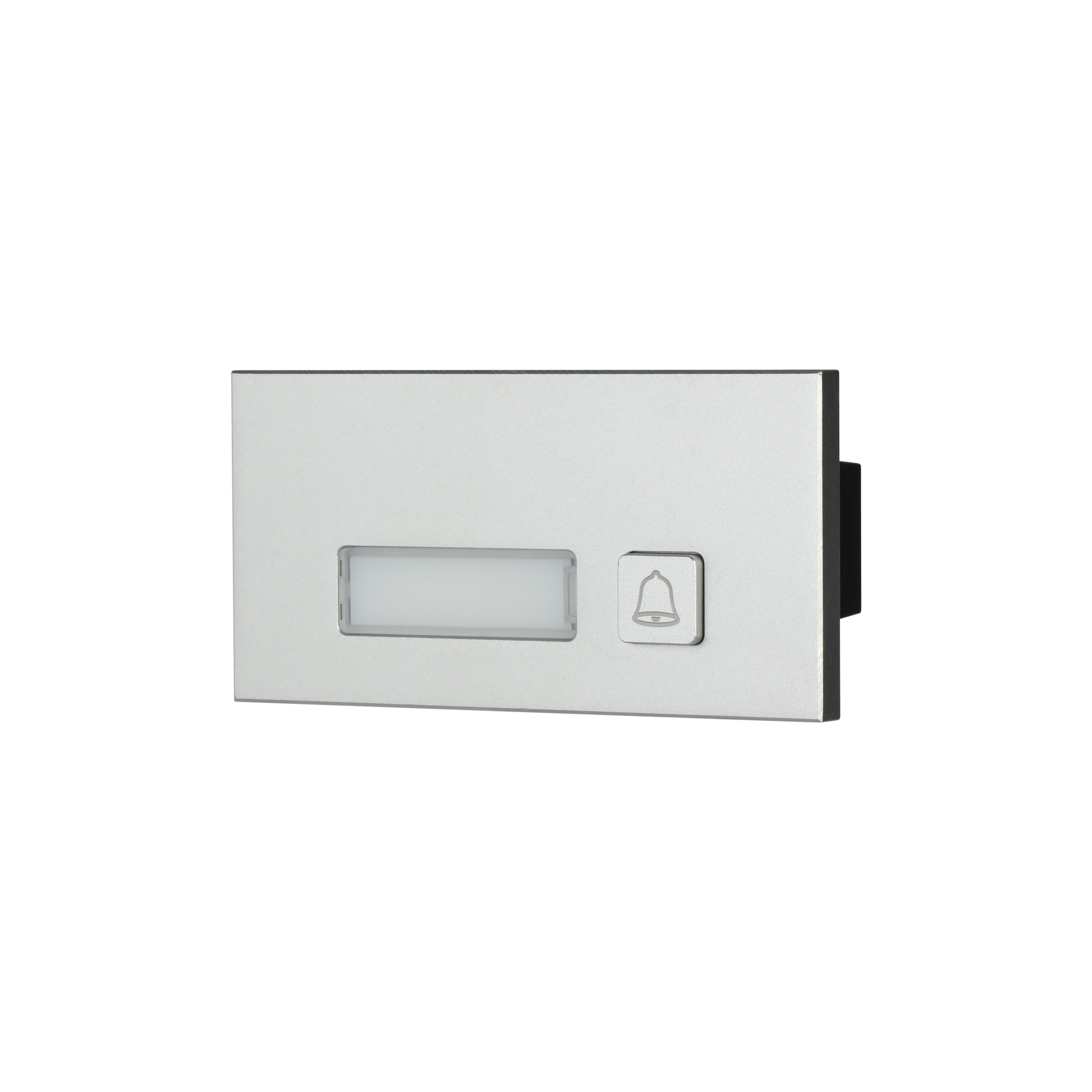

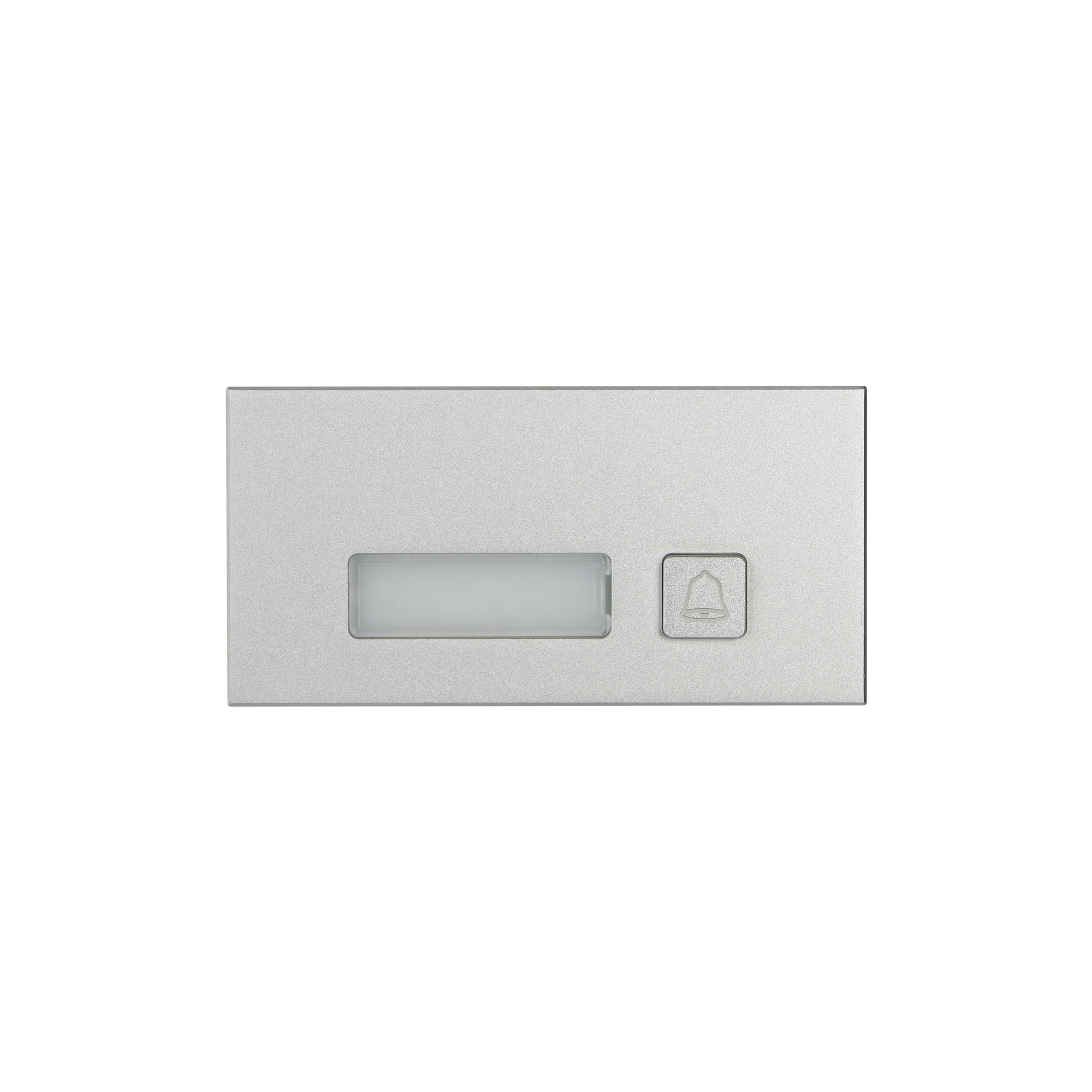

A call module with one mechanical button for the modular door panel. Its aluminum alloy body stands up to outdoor door conditions and it draws power from the other modules on the panel. It supports flush and surface mounting.
1Mechanical button
IP65Protection Grade
IK07Impact resistance
5 VDCPower supply
1 WPower consumption
Key features
Single call buttonOne mechanical button on the panel calls a single apartment.
Aluminum bodyThe aluminum alloy casing protects the panel against weather at IP65 and against impact at IK07 level.
Modular panelIt joins the fingerprint, keypad, card reader and indicator modules of the same series on one panel.

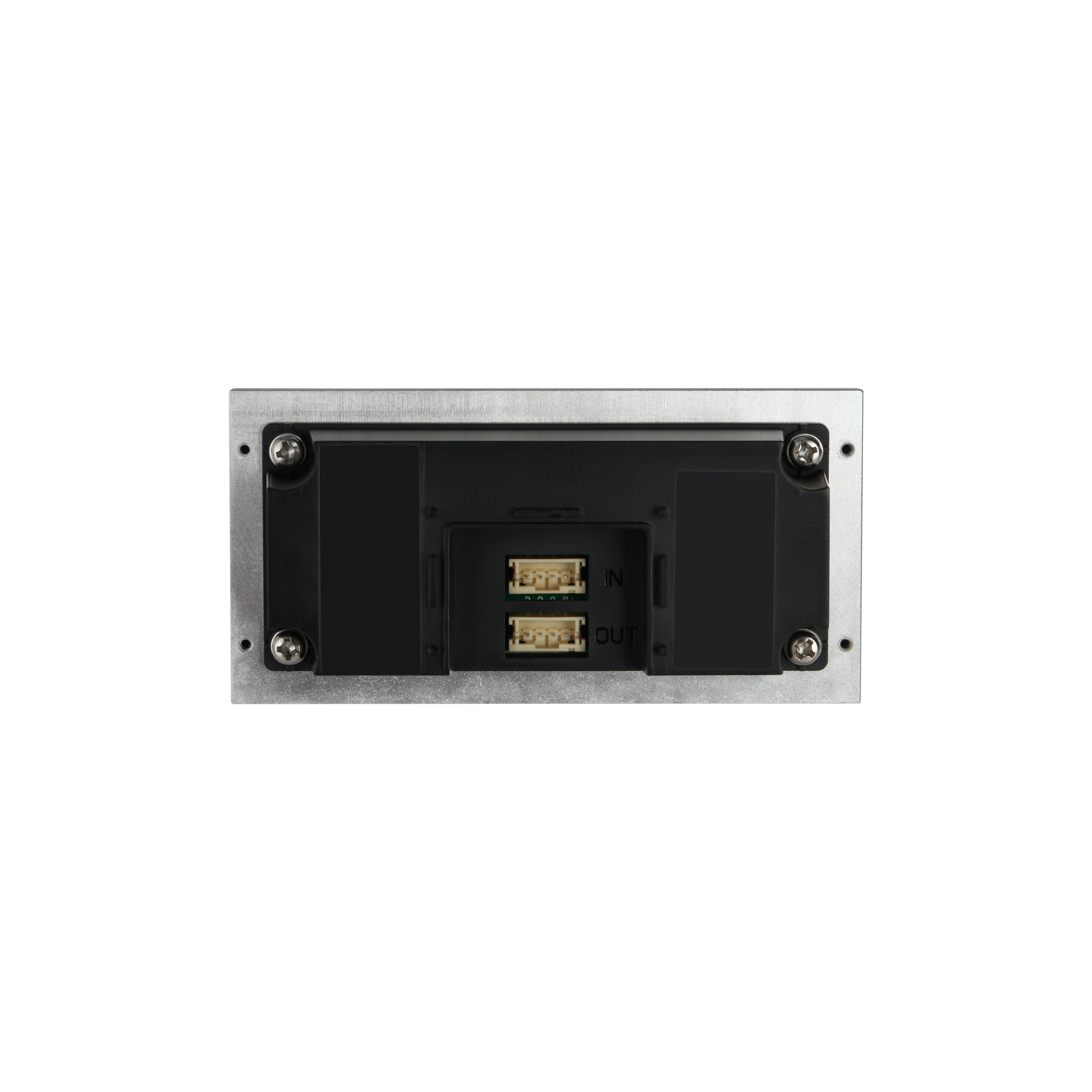

Power from the neighboring moduleIt draws 5 VDC power from the other modules on the panel and needs no separate adapter.
Mounting optionsIt supports flush and surface mounting.
Silicone sealant is required on the module casing for the IP65 rating.
