Sends an emergency signal to the alarm panel at a single press.

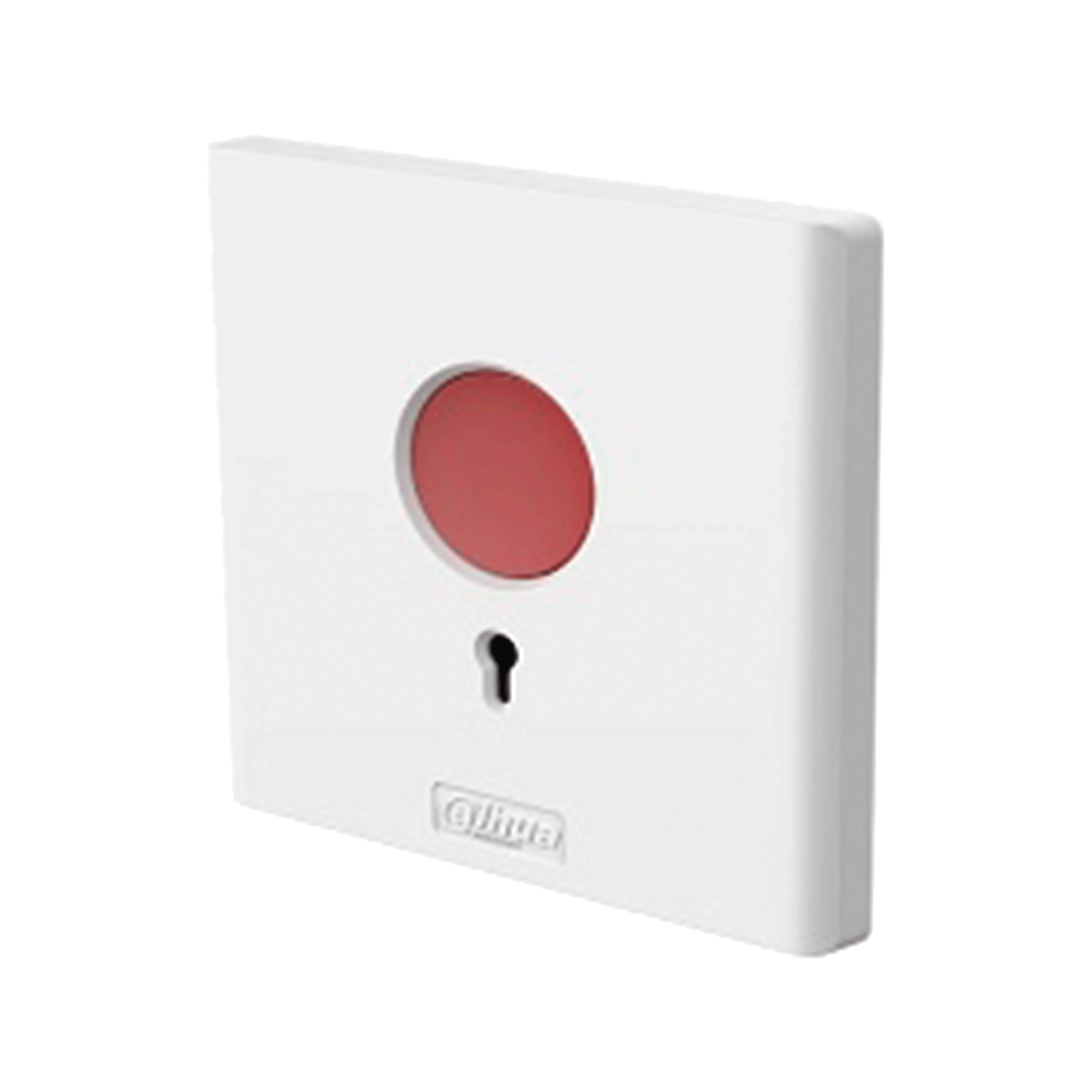

A panic button that fits an 86 mm × 86 mm junction box. It works without a power supply and carries the signal to the alarm panel over an NC/NO contact. The white ABS case holds a red button.
Emergency outputSends a single signal to the alarm panel over an NC/NO contact.
No power supply neededRequires no power supply; the contact carries 250 VDC and at most 300 mA.
ResetThe reset key in the box returns the button to its original position quickly.
MountingFits an 86 mm × 86 mm junction box; the 86.0 mm × 32.0 mm × 86.0 mm body takes little wall space.
Case and environmentThe white ABS case holds a red button and works between -10 °C and +55 °C at up to 95% humidity.
CertificationCarries the CE mark.
