Covers the whole doorway with a fisheye camera.

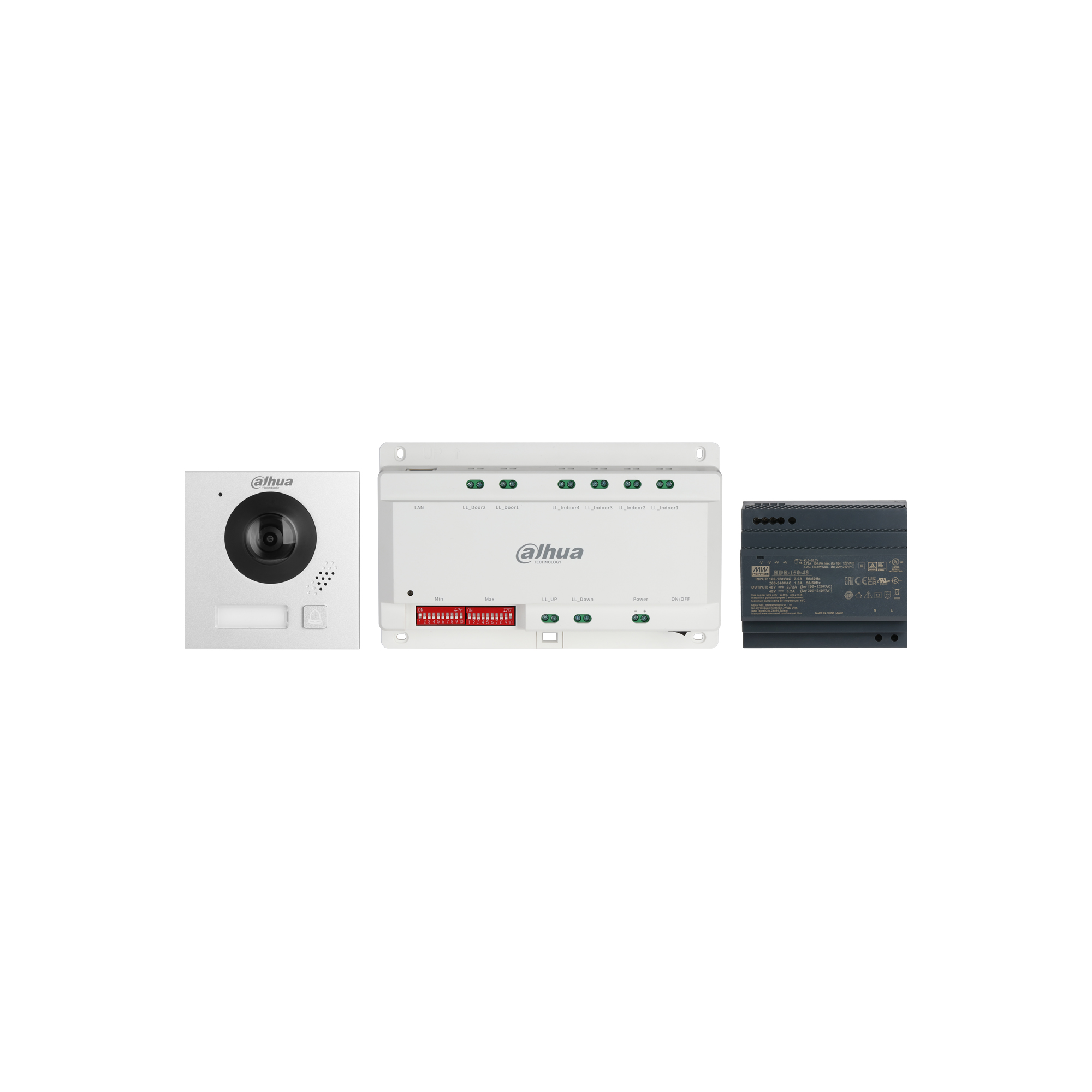

A video intercom kit made of a door station and a 2-wire controller. The door station produces HD color images in low light, while the controller mounts on a DIN rail and feeds the system from a single point.

2 MPCMOS fisheye camera

120 dBWDR

IP65 · IK07protection grade and impact rating

100 MbpsEthernet port

48–53 VDCcontroller power supply

10 devicesdaisy chain

Key features

Fisheye cameraThe 2 MP CMOS sensor produces HD color images in low light.

VerificationIt opens the door with a password, fingerprint, IC card, ID card or remote control.

ExpansionIt carries four 2-wire ports for VTH and two 2-wire ports for VTO, and grows with additional modules.

System capacityIt supports 100 analog VTHs or 22 hybrid VTHs and daisy-chains up to 10 devices.

ManagementThe RJ-45 port opens the device web page and configures the system from there.

ControllerThe controller takes 48–53 VDC, mounts on a DIN rail and draws ≤4 W in standby.

Technical Specification: Video Intercom Main Module (VTO)

Camera

1/2.5" 2 MP CMOS low-light HD color fisheye camera

Field of View

H: 168.6°; V: 87.1°; D: 176.7°

WDR / Noise Reduction

120 dB / 3D NR

Communication / Verification

Analog 2-wire / Password; Fingerprint; Remote; IC card; ID card

Protection / Material

IK07; IP65 / Aluminum alloy

Product Dimensions

100 mm × 100 mm × 47.35 mm (3.94" × 3.94" × 1.86")

Technical Specification: 2-Wire Controller (VTNC)

Network Protocol

IPv4; UDP; DNS; TCP; SSH

Network Port

1 × 100 Mbps Ethernet port

Power Supply

48–53 VDC, 4 A

Installation

Guide Rail Mount (DIN rail)

Power Consumption

≤4 W (standby), ≤100 W (working)

Product Dimensions

117 mm × 191 mm × 38 mm (L × W × H)
