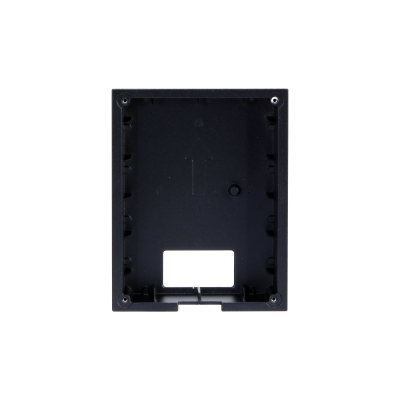

Flush mounting box that recesses the door station into the wall

The ADC12 body carries the video door station level with the wall surface. After installation only the front frame stays visible, while the whole body sits inside the wall opening.

ADC12Material

128.9 mm × 162.9 mm × 34.5 mmFront dimensions

123.0 mm × 157.0 mm × 35.0 mmRear dimensions

Flush mountInstallation Type

Key features

Body materialThe ADC12 body forms the section of the box that stays inside the wall.

Front dimensionsThe front frame measures 128.9 mm × 162.9 mm × 34.5 mm and defines the visible area on the wall surface.

Rear dimensionsThe body that enters the wall measures 123.0 mm × 157.0 mm × 35.0 mm.

Wall cutoutThe box fits a wall opening between 113.0 mm × 149.0 mm × 35.0 mm and 123.0 mm × 157.0 mm × 35.0 mm.

Installation methodFlush mounting keeps the device level with the wall surface and leaves no protruding part.

Technical Specifications

Material

ADC12

Dimensions (Front)

128.9 mm × 162.9 mm × 34.5 mm (5.08" × 6.42" × 1.36")

Dimensions (Rear)

123.0 mm × 157.0 mm × 35.0 mm (4.84" × 6.18" × 1.38")

Wall Opening Dimensions

> 113.0 mm × 149.0 mm × 35.0 mm (4.45" × 5.87" × 1.38"), < 123.0 mm × 157.0 mm × 35.0 mm (4.84" × 6.18" × 1.38")

Installation Method

Flush Mount

Flush mounting box that recesses the door station into the wall

The ADC12 body carries the video door station level with the wall surface. After installation only the front frame stays visible, while the whole body sits inside the wall opening.

ADC12Material

128.9 mm × 162.9 mm × 34.5 mmFront dimensions

123.0 mm × 157.0 mm × 35.0 mmRear dimensions

Flush mountInstallation Type

Key features

Body materialThe ADC12 body forms the section of the box that stays inside the wall.

Front dimensionsThe front frame measures 128.9 mm × 162.9 mm × 34.5 mm and defines the visible area on the wall surface.

Rear dimensionsThe body that enters the wall measures 123.0 mm × 157.0 mm × 35.0 mm.

Wall cutoutThe box fits a wall opening between 113.0 mm × 149.0 mm × 35.0 mm and 123.0 mm × 157.0 mm × 35.0 mm.

Installation methodFlush mounting keeps the device level with the wall surface and leaves no protruding part.
