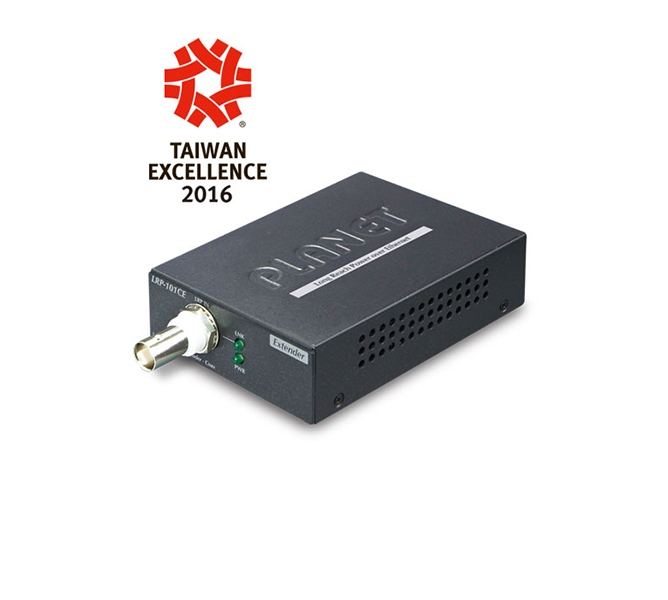

1-Port Long Reach PoE over Coaxial Extender

Stok Kodu: LRP-101CE

Working Hand in Hand as a Kit
Working in pair with PLANET LRP-101CH Long Reach PoE Injector, powered by either the external DC power adapter or PoE+ Ethernet switch, the LRP-101CE’s 802.3at standard PoE output goes to a PoE PD. The LRP-101-C-KIT, made up of the LRP-101CH and LRP-101CE, can be widely used in Intelligent Transportation Systems (ITS), traffic surveillance, security monitoring, automation control, intelligent residential districts and so on.

The LRP-101C-KIT can function in two different kinds of combinations:

Type 1: LRP-101CH with PoE power input and LRP-101CE with PoE power output
The LRP-101CH injector, powered by IEEE 802.3at/af PoE source, transmits data and power over coaxial cable to the LRP-101CE extender. An IEEE 802.3at/af compliant PoE PD will then automatically be powered by the LRP-101CE via UTP cabling.



Functions
LRP Injector
LRP Extender
LRP-101CH
LRP-101CE
Power Input
RJ45 with 802.3at/af PoE input
BNC with DC power over coaxial input
Power Output
BNC with DC power over coaxial output
RJ45 with 802.3at/af PoE output


Type 2: LRP-101CH with 48~56V DC power input and LRP-101CE with PoE power output
The LRP-101CH injector, powered via the DC power adapter, transmits data and power over coaxial cable to the LRP-101CE extender. An IEEE 802.3at/af compliant PoE PD will then automatically be powered by the LRP-101CE via UTP cabling.



Functions
LRP Injector
LRP Extender
LRP-101CH
LRP-101CE
Power Input
Power adapter with 48~56V DC in
BNC with DC power over coaxial input
Power Output
BNC with DC power over coaxial output
RJ45 with 802.3at/af PoE output


Type 3: Multi-channel Long Reach PoE Switch Topology
LRP switch with 100~240V AC power input and multiple LRP-101CEs with PoE power output
Powered by the Long Reach PoE Switch via coaxial cables, the LRP-101CE can automatically deliver power and data to the IEEE 802.3at/af compliant PoE PDs via UTP. It successfully eliminates the need for an additional power source for the LRP-101CE and the PoE PDs at long range.



Functions
LRP Switch
LRP Extender
Models
LRP-822CS / LRP-1622CS
LRP-101CE
Power Input
100~240V AC
BNC with DC power over coaxial input
Power Output
BNC with DC power over coaxial output
RJ45 with 802.3at/af PoE output
