1-Port Long Reach PoE over UTP Extender Kit

Stok Kodu: LRP-101U-KIT

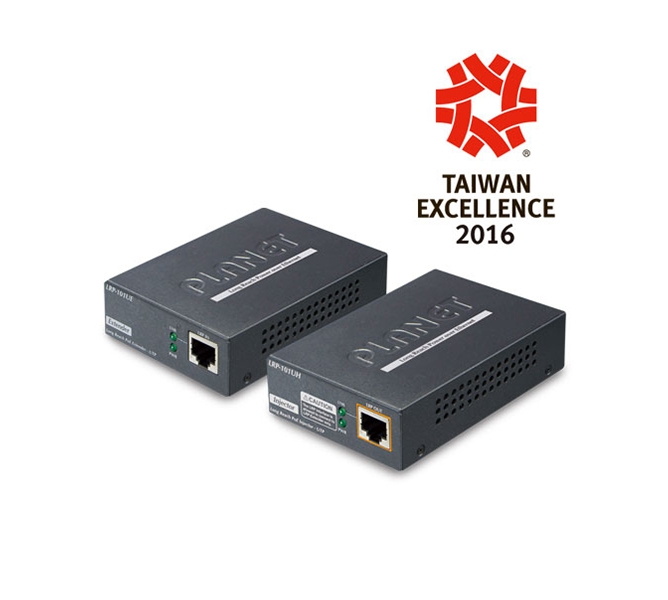

The LRP-101U-KIT includes two products: The LRP-101UH, an UTP Long Reach PoE Injector (LRP injector), and the LRP-101UE, an UTP Long Reach PoE Extender (LRP extender). Working in pair, the LRP-101UH can be powered by either external DC power adapter or PoE+ Ethernet switch, and from there, the LRP-101UE’s 802.3at standard PoE output goes to PoE Powered Device (PDs). The LRP-101U-KIT can be widely used in Intelligent Transportation Systems (ITS), traffic surveillance, security monitoring, automation control, intelligent residential districts and so on.

The LRP-101U-KIT can function in two different kinds of combinations:

Type 1: LRP-101UH with PoE power input and LRP-101UE with PoE power output
The LRP-101UH injector is powered by IEEE 802.3at/af PoE source and it transmits data and power over UTP cable to the LRP-101UE extender. An IEEE 802.3at/af compliant PoE PD will then automatically be powered by the LRP-101UE via UTP cabling.



Functions
LRP Injector
LRP Extender
LRP-101UH
LRP-101UE
Power Input
RJ45 with 802.3at/af PoE input or power adapter with 48~56V DC in
UTP with DC power over UTP input
Power Output
UTP with DC power over UTP output
RJ45 with 802.3at/af PoE output

Type 2: LRP-101UH with 48~56V DC power input and LRP-101UE with PoE power output
The LRP-101UH injector is powered via the DC power adapter and it transmits data and power over UTP cable to the LRP-101UE extender. An IEEE 802.3at/af compliant PoE PD will then automatically be powered by the LRP-101UE via UTP cabling.

Functions
LRP Injector
LRP Extender
LRP-101UH
LRP-101UE
Power Input
Power adapter with 48~56V DC in in
UTP with DC power over UTP input
Power Output
UTP with DC power over UTP output
RJ45 with 802.3at/af PoE output
