Camera

Image Sensor

1/2.8" STARVIS™ CMOS

Pixel

**2MP**

Max. Resolution

**1920 (H) x 1080 (V)**

ROM

16 MB

RAM

256 MB

Electronic Shutter Speed

1/3 s–1/100000 s

Scanning System

Progressive

Min. Illumination

Color: **0.005 Lux@F1.6**
B/W: 0.0005 Lux@F1.6
0 Lux@F1.6 (**IR on**)

Illumination Distance

**150 m** (492.13 ft)

Illuminator On/Off Control

Auto/Manual

Illuminator Number

4

**Lens**

Focal Length

**4.5 mm–144 mm**

Max. Aperture

F1.6–F4.0

Field of View

H: 60.14°–2.75°; V: 34.41°–1.54°; D: 68.23°–3.16°

Optical Zoom

**32x**

Focus Control

Auto/Semi-Auto/Manual

Close Focus Distance

0.1 m–1.5 m (0.33 ft–4.92 ft)

Iris Control

Auto/Manual

DORI Distance

Detect

Observe

Recognize

Identify

**1986 m** (6515.75 ft)

785 m (2575.46 ft)

398 m (1305.77 ft)

198 m (649.61 ft)

**PTZ**

Pan/Tilt Range

Pan: **0°–360°**; Tilt: -15°–+90°; auto flip 180°

Manual Control Speed

Pan: 0.1°–300°/s; Tilt: 0.1°–200°/s

Preset Speed

Pan: 400°/s; Tilt: 300°/s

Presets

**300**

Tour

8 (up to 32 presets per tour)

Pattern

5

Scan

5

Speed Adjustment

Support

Power-off Memory

Support

Idle Motion

Preset/Tour/Pattern/Scanning

Protocol

DH-SD
Pelco-P/D (auto recognition)

**Video**

Resolution

**1080P** (1920 × 1080); 720P (1280 × 720); D1 (704 × 576/704 × 480)

Frame Rate

1080P (25/30 fps); **720P (25/30/50/60 fps)**

CVI Product Output Mode

**CVI; TVI; AHD; CVBS**

Day/Night

Support

BLC

Support

WDR

**120 dB**

HLC

Support

White Balance

Auto/Indoor/Outdoor/Tracking/Manual/Sodium lamp/Natural/Street lamp

Gain Control

Auto/Manual

Noise Reduction

**2D/3D**

Defog

Electronic

Digital Zoom

**16x**

Flip

0°/180°

Privacy Masking

Up to **24 areas**

**Audio**

Compression

G.711a; G.711Mu

**Certification**

Certifications

CE: EN55032/EN55024/EN50130-4
FCC: Part15 subpartB,ANSI C63.4-2014
UL62368-1+CAN/CSA C22.2,No. 62368-1

**Port**

Analog Output

**1 (CVBS/CVI output, BNC port)**

RS-485

1 (baud rate range: 1200 bps–9600 bps)

Audio Input

1 (LINE IN; bare wire)

Alarm I/O

**2/1**

**Power**

Power Supply

**DC24V**/2.5A ± 25%

Power Consumption

Basic: 9.6W
Max: **22W** (IR light on, PTZ rotating)

**Environment**

Operating Temperature

**-40°C to +70°C** (-40°F to +158°F)

Operating Humidity

**≤ 95%RH**

Protection

**IP66**; TVS 6000V lightning protection; surge protection

**Structure**

Dimensions

310.0 mm × Φ186.0 mm (12.20" × Φ7.32")

Net Weight

3.9 kg (8.60 lb)

Gross Weight

7.2 kg (15.87 lb)

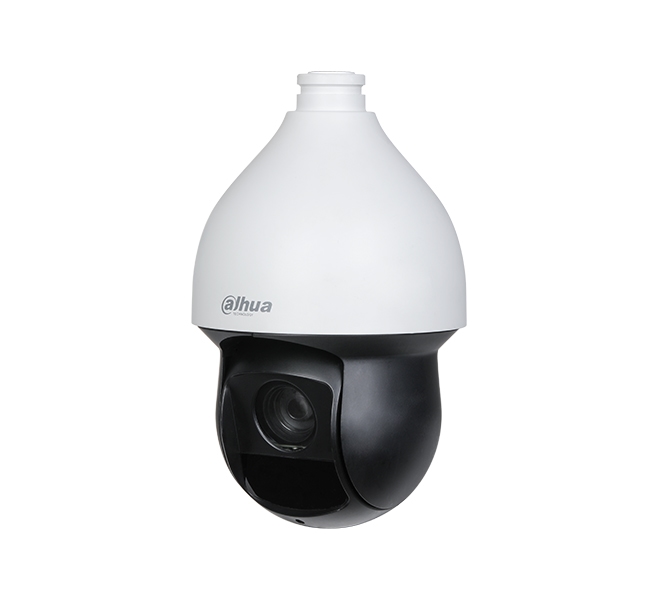

2MP 32x Starlight IR PTZ HDCVI Camera
