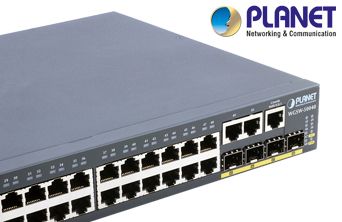

50-Port Gigabit + 4-Port Gigabit SFP Layer2/L4 Advanced SNMP Yönetilebilir Switch
Stok Kodu: WGSW-50040
50-Port Gigabit + 4-Port Gigabit SFP Layer2/L4 Advanced SNMP Yönetilebilir Switch
| Donanım Özellikleri | |
| Bakır Portlar | 50 10/ 100/1000Base-T RJ-45 Auto-MDI / MDI-X ports |
| SFP / mini-GBIC Slot | 4 1000Base-SX/LX SFP interfaces, shared with Port-45 to Port-48 |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 100Gbps / non-blocking |
| Switch Throughput | 74.4Mpps |
| Address Table | 8K MAC address table with Auto learning function |
| Share Data Buffer | 0.5Mbytes |
| VLAN Table | 4K |
| ACL Table | 1K |
| Port Queues | 8 |
| Akış Kontrolü |
Back pressure for Half-Duplex IEEE 802.3x Pause Frame for Full-Duplex |
| Jumbo Frame | 9K |
| LED |
System: PWR, SYS Ports: TP Port:10/100/1000 Link/Act SFP Slot: On/Off |
| Ölçüler | 440 x 230 x 44 mm, 1U height |
| Weight | 3215g |
| Power Consumption | 80 Watts / 272.8 BTU (Maximum) |
| Power Requirement | AC 100~240V, 50/60Hz |
| Yönetim Fonksiyonu | |
| System Configuration | Console, Telnet, SSH, Web Browser, SNMPv1, v2c and v3 |
| Management |
Supports the unite for IPv4 / IPv6 HTTP Supports the user IP security inspection for IPv4 / IPv6 SNMP Supports MIB and TRAP Supports IPv4 / IPv6 FTP/TFTP Supports IPv4 / IPv6 NTP Supports RMOM 1, 2, 3, 9 four group Supports the RADIUS authentication for IPv4 / IPv6 telnet user name and password Supports IPv4 / IPv6 SSH The right configuration for users to adopt radius server’s shell management Supports CLI, Console (RS-232), Telnet Supports SNMPv1 / v2c / v3 Supports Security IP safety net management function:avoid unlawful landing at nonrestrictive area Supports Syslog server for IPv4 and IPv6 Supports TACACS+ |
| Layer2 Fonksiyonu | |
| Port Configuration |
Port disable/enable Auto-Negotiation 10/100/1000Mbps full and half duplex mode selection Flow Control disable / enable Bandwidth control on each port Port Loopback detect |
| Port Status |
Display each port’s speed duplex mode, link status, Flow control status Auto negotiation status |
| VLAN |
802.1Q Tagged Based VLAN, up to 4K VLAN groups Q-in-Q GVRP for VLAN Management Private VLAN Edge (PVE) supported |
| Bandwidth K | TX / RX / Both |
| Link Aggregation |
IEEE 802.3ad LACP / Static Trunk Supports 8 groups of 8-Port trunk |
| QoS |
8 priority queues on all switch ports Supports for strict priority and Weighted Round Robin (WRR) CoS policies Traffic classification: - IEEE 802.1p CoS / ToS - IPv4 / IPv6 DSCP - Port-Based QoS Strict priority and Weighted Round Robin (WRR) CoS policies |
| IGMP Snooping | IGMP (v1/v2/v3) Snooping, IGMP Querier mode |
| Multicast |
IGMP v1 / v2 / v3 Snooping IGMP Querier mode support MLD v1 / v2, MLD v1 / v2 Snooping |
| Access Kontrol Listesi |
Standard and Expanded ACL IP-Based ACL / MAC-Based ACL Time-Based ACL Up to 512 entries |
| Güvenlik |
MAC + port binding IPv4 / IPv6 + MAC + port binding IPv4 / IPv6 + port binding MAC filter ARP Scanning Prevention |
| Authentication |
IEEE 802.1x Port-Based network access control AAA Authentication: TACACS+ and IPv4/IPv6 over RADIUS |
| SNMP MIBs |
RFC-1213 MIB-II RFC-1215 Internet Engineering Task Force RFC-1271 RMON RFC-1354 IP-Forwarding MIB RFC-1493 Bridge MIB RFC-1643 Ether-like MIB RFC-1907 SNMP v2 RFC-2011 IP/ICMP MIB RFC-2012 TCP MIB RFC-2013 UDP MIB RFC-2096 IP forward MIB RFC-2233 if MIB RFC-2452 TCP6 MIB RFC-2454 UDP6 MIB RFC-2465 IPv6 MIB RFC-2466 ICMP6 MIB RFC-2573 SnmpV3 notify RFC-2574 SNMPV3 vacm RFC-2674 Bridge MIB Extensions (IEEE 802.1Q MIB) RFC-2674 Bridge MIB Extensions (IEEE 802.1P MIB) |
| Standart Uygunluğu | |
| Regulation Compliance | FCC Part 15 Class A, CE |
| Standart Uygunluğu |
IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX IEEE 802.3z Gigabit SX/LX IEEE 802.3ab Gigabit 1000T IEEE 802.3x Flow Control and Back pressure IEEE 802.3ad Port trunk with LACP IEEE 802.1D Spanning tree protocol IEEE 802.1w Rapid spanning tree protocol IEEE 802.1s Multiple spanning tree protocol IEEE 802.1p Class of service IEEE 802.1Q VLAN Tagging IEEE 802.1x Port Authentication Network Control |
| Çevresel Özellikler | |
| Çalışma Sıcaklığı |
Temperature: 0 ~ 50 Degree C Relative Humidity: 5 ~ 90% (non-condensing) |
| Depolama Sıcaklığı |
Temperature: -10 ~ 70 Degree C Relative Humidity: 5 ~ 90% (non-condensing) |
Backbone SwitchWith up to 100Gbps non-blocking switch fabric and 50 high density ports design, the WGSW-50040 can easily provide high bandwidth required for both now and future. It can efficiently offer a local, high bandwidth Gigabit Ethernet network for backbone of enterprises or Telecoms. With the four SFP ports, the WGSW-50040 provides the uplink to the edge network through Gigabit Ethernet LX/SX SFP modules.Server Farm Switch
Server Farm Switch
The WGSW-50040 provides up to 50 Gigabit Ethernet ports for Enterprises and Network servers. It is ideal to be used as a server farm switch connecting servers. With its port trunking function, an 8 GB fat pipe is provided for connecting to the backbone if required.
Department Security and QoS Switch
Featuring the security, Multicast IGMP Snooping and QoS functions, the WGSW-50040 improves the network efficiency and protects the network clients. With the four SFP ports, the WGSW-50040 provides the uplink to the backbone network through Gigabit Ethernet LX/SX SFP modules.
