Technical Speciﬁcation

Working Voltage

24V (36V to 18V)

Working Current

30mA (25mA to 45mA)

Indicator Light

Standby: Blue indicator flashes once every 4 seconds

Alarm: Red indicator is steady on

Working Distance

5 m—100 m (16.40 ft—328.08 ft)

Alarm Sensitivity

1.8dB

Dimensions

78.5 mm × 123.0 mm × 115.0 mm (3.09"× 4.84" × 4.53")

Weight

0.3 kg (0.66 lb)

Operating Temperature

-35°C to +65°C (-31°F to +149°F)

Operating Humidity

≤ 95% RH (non condensing)

Adjustment Angle

About ±5° up and ±10° down

Installation Angle

<15° offset :±0.2 m/60 m

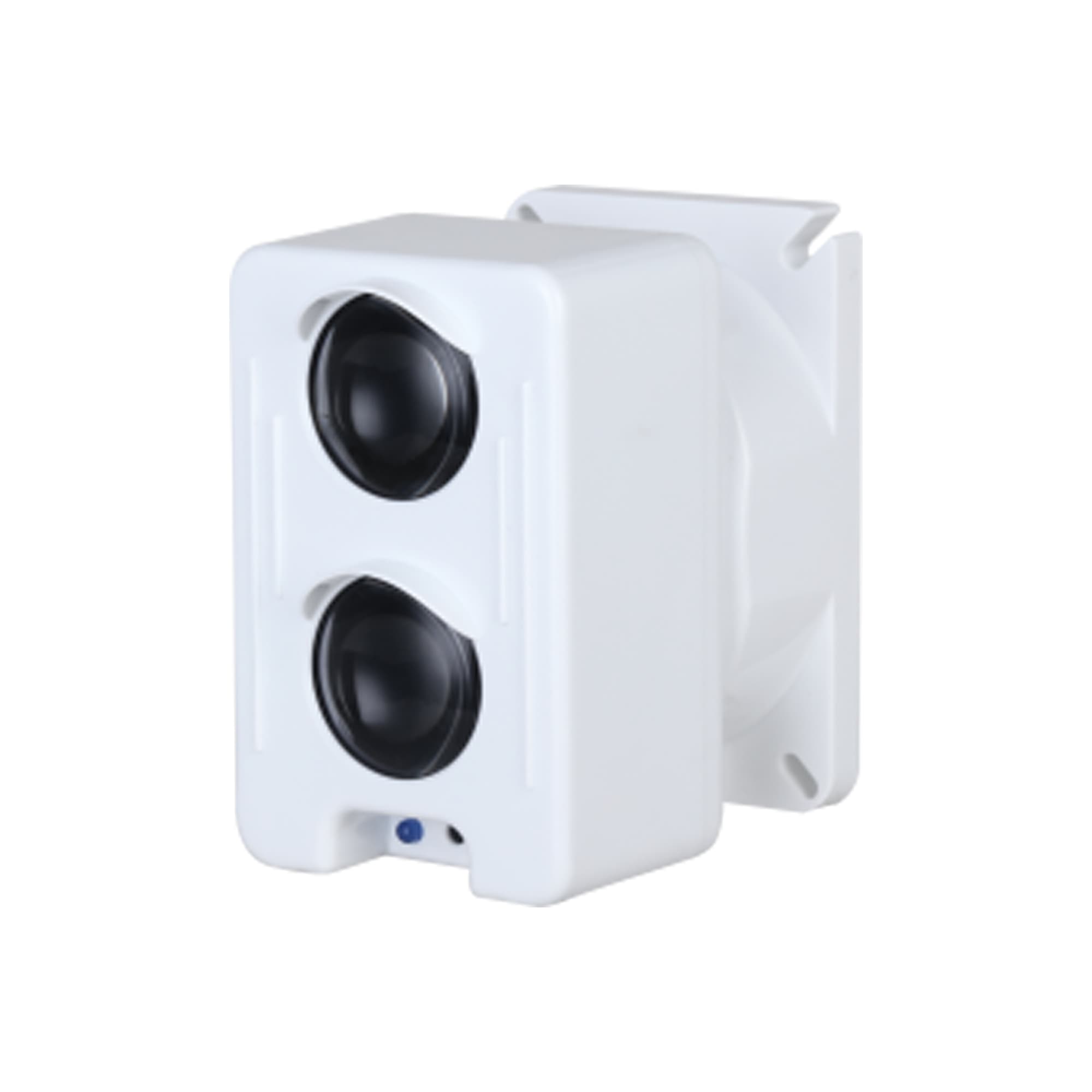

Doğrusal Işın Dedektörü
