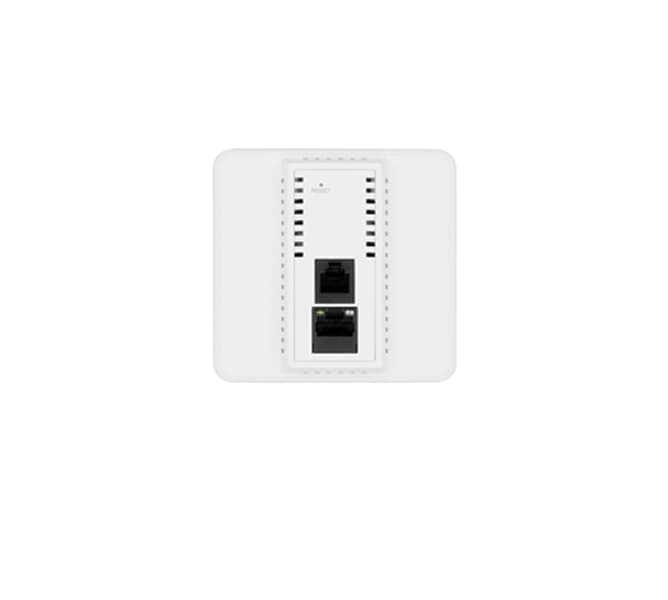

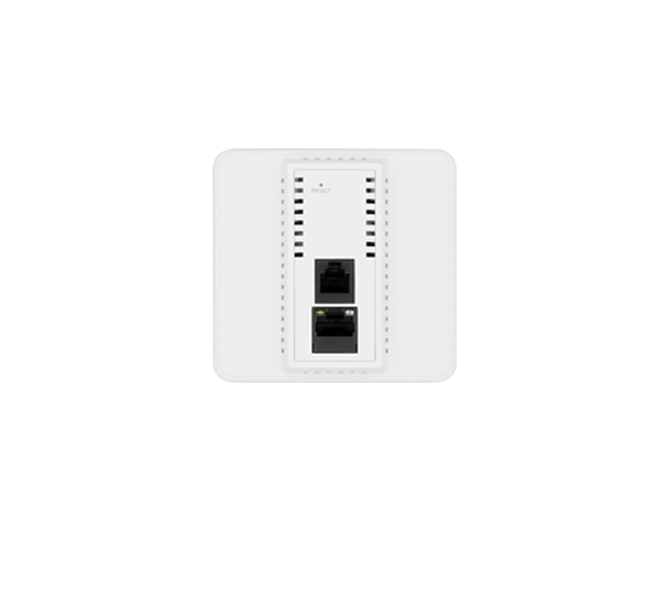

The Edgecore ECW100 is a concurrent dual-band 802.11ac in-wall access point designed specifically for enhancing your traditional Ethernet/telephone outlets with Wi-Fi capabilities. It provides a Gigabit LAN port for your network devices and a pass-through telephone port for supporting telephone, modems and ADSL connections. Featuring two 2x2 MIMO radios, the ECW100 can simultaneously support up to 300 and 867 Mbps data rates in the 2.4 and 5 GHz bands respectively.
When ECW100 is deployed and centrally managed by Edgecore EWS Controller, additional value-added applications such as bandwidth control, user authentication, and captive portals can be used to provide an ideal solution for all types of businesses.
Enterprise-grade AP Functionality
Up to 8 ESSIDs per Radio
Configurable Connectivity Thresholds
Dynamic Channel Selection
Seamless/Fast Roaming
Multicast to Unicast Conversion
802.11e/WMM
802.11u
802.1p/DSCP
Advanced Wi-Fi Securit
VPA2 - Enterprise with 802.1X Authentication
802.1Q VLAN Tagging
Layer 2 Firewall
Station Isolation
MAC ACL
DHCP Snopping
WPA / WPA2 Security with AES Encryption
Detailed User Conneectivity Statistics
Configurable Trusted Wireless Interfaces
Secure AP Mounting Mechanisms
