Kamera Test Cihazı

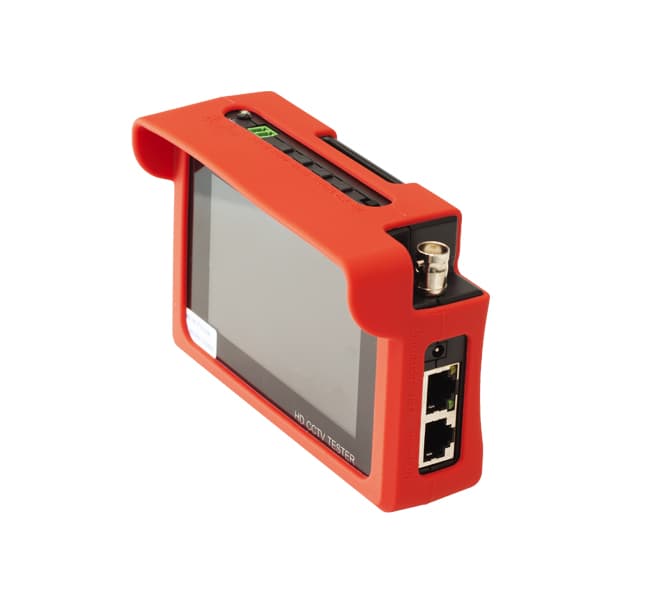

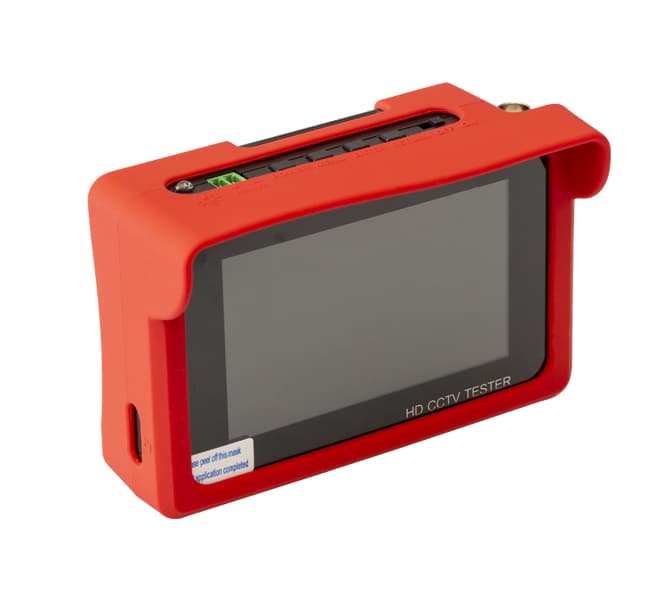

The 4 inch IPS touch screen IP camera tester is designed for maintenance and installation of IP analog, HD coaxial cameras as well as other security equipment. The 800*480 resolution enables it to display network HD cameras and analog cameras in high resolution. The unit supports many ONVIF PTZ and analog PTZ control. CCTV installers often need to carry a variety of testing tools to complete their work. If take the all in one camera tester, making working conditions safer and increasing productivity.

CCTV system installation and maintenance

Network cabling project installation and maintenance

Dome camera, 4K H.265 IP camera testing

Video transmission channel testing

PTZ controller

8MP TVI/8MP CVI/8MP AHD/4K H.265 IP /CVBS

H.265/H.264, 4K video display via mainstream

Dahua, Hikvision, Axis etc ONVIF camera test

Rapid ONVIF, auto view video and create testing report

DC12V 3A, DC48V PoE power output

10/100/100M Ethernet, network state and traffic display

UTP cable test, cable order and connectivity test

RJ45 cable TDR test, cable quality test

Wrist design, portable and easier to carry

Camera test

4 inch touch screen, 800*480 resolutions

H.265 & H .264 IP, 4K video display via mainstream

Rapid ONVIF, Auto log in and display image, create testing report

AXIS, Hikvision camera test, enter ONVIF app, input username and password to test

8MP TVI/8MP CVI/8MP AHD

CVBS camera test and PTZ control

IPC TEST (Non-ONVIF test), HIK test tool (Hikvision camera), DH test tool (Dahua camera)

IP discovery, just by one key to detect all network cameras IP address

Rapid video, just by one key to detect all network cameras and auto display

DC12V 3A power output

PoE DC48V power output, Max power 24W

Innovative coaxial HD focus, video signal quality test


Cable test

Improvement cable tester, UTP cable order and connectivity test, can save testing report, if special number, need customized

 RJ45 cable TDR test, test cable pair status, length, attenuation, reflectivity, impedance, skew etc


Other functions

10/100/100M Ethernet, network state and traffic display

Wrist design, portable and easier to carry

Network tool: PING test, IP address scan, port flashing etc

Drop-down menu, can select Poe power, IP setting, CVBS, LAN info etc

Self -update software, you can install apps with android version

Media player, 4K video files and MKV/MP4 media files play

Display its genuine resolution of the IP camera images

PTZ control supports more than 30 protocols such as PELCO-P, PELCO-D, and SAMSUNG

Audio in, support record and save the audio/LED lamp, calculators, music players and other application tools

7.4 V /2400mAh Lithium Ion Polymer Battery, after 4~5 hours charging, working time lasts 7 hours
