Stok Kodu: GS-5220-24PL4XV / GS-5220-24PL4XVR
Amazing PoE+ Managed Switches with Advanced L2+/L4 Switching and Security

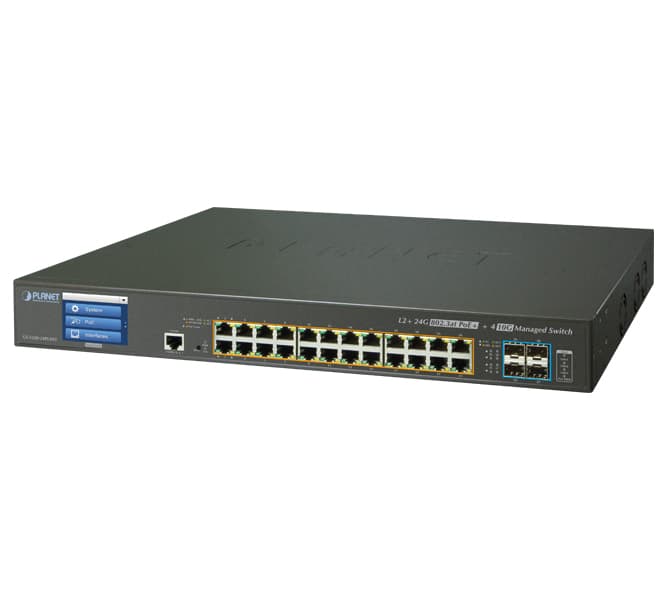

PLANET GS-5220-24PL4XV and GS-5220-24PL4XVR are cost-optimized, 1.25U, Gigabit PoE+ Managed Switches with LCD Touch Screen featuring PLANET intelligent PoE functions to improve the availability of critical business applications. They provide IPv6/IPv4 dual stack management and built-in L2+/L4 Gigabit switching engine along with 24 10/100/1000BASE-T ports featuring 36-watt PoE+ and 4 additional 10Gigabit SFP+ ports. With a total power budget of up to 600 watts for different kinds of PoE applications, the GS-5220-24PL4XV and GS-5220-24PL4XVR provide a quick, safe and cost-effective PoE+ network solution for small businesses and enterprises.
Smart and Intuitive LCD Control
PLANET unique Smart LCD PoE Switches provide an intuitive touch panel on their front panels that facilitate the Ethernet PoE PD management that greatly promotes management efficiency in large-scale network, such as enterprises, hotels, shopping malls, government buildings, and other public areas. They also feature the following special management and status functions:
¦ IP address, VLAN and QoS configuration
¦ PoE management and status
¦ Port management and status, and SFP information
¦ Troubleshooting: cable diagnostic and remote IP ping
¦ Maintenance: reboot, factory default and save configuration
Convenient and Smart ONVIF Devices with Detection Feature
PLANET has newly developed an awesome feature -- ONVIF Support -- which is specifically designed for co-operating with Video IP Surveillances. From the GS-5220-24PL4XV and GS-5220-24PL4XVR GUI, clients just need one click to search and show all of the ONVIF devices via network application. In addition, clients can upload floor images into switch and they allow for deploying location of surveillance devices for easier inspection and planning. Moreover, clients can get real-time surveillance’s information and online/offline status, and they also allow PoE reboot control from GUI.
Built-in Unique PoE Functions for Powered Devices Management
Being the managed PoE switches for surveillance, wireless and VoIP networks, the GS-5220-24PL4XV and GS-5220-24PL4XVR feature the following special PoE management functions:
¦ PD alive check
¦ Scheduled power recycling
¦ PoE schedule
¦ PoE usage monitoring
Intelligent Powered Device Alive Check
The GS-5220-24PL4XV and GS-5220-24PL4XVR can be configured to monitor connected PD (powered device) status in real time via ping action. Once the PD stops working and responding, the GS-5220-24PL4XV and GS-5220-24PL4XVR will resume the PoE port power and bring the PD back to work. They will greatly enhance the network reliability through the PoE port resetting the PD’s power source and reducing administrator management burden.
Scheduled Power Recycling
The GS-5220-24PL4XV and GS-5220-24PL4XVR allow each of the connected PoE IP cameras or PoE wireless access points to reboot at a specified time each week. Therefore, they will reduce the chance of IP camera or AP crash resulting from buffer overflow.
PoE Schedule for Energy Saving
Under the trend of energy saving worldwide and contributing to environmental protection, the GS-5220-24PL4XV and GS-5220-24PL4XVR can effectively control the power supply besides their capability of giving high watts power. The “PoE schedule” function helps you to enable or disable PoE power feeding for each PoE port during specified time intervals and it is a powerful function to help SMBs or enterprises save power and money. It also increases security by powering off PDs that should not be in use during non-business hours.
PoE Usage Monitoring
Via the power usage chart in the web management interface, the GS-5220-24PL4XV and GS-5220-24PL4XVR enable the administrator to monitor the status of the power usage of the connected PDs in real time. Thus, they greatly enhance the management efficiency of the facilities.
Cost-effective 10Gbps Uplink Capacity
10G Ethernet is a big leap in the evolution of Ethernet. The four 10G SFP+ slots of the GS-5220-24PL4XV and GS-5220-24PL4XVR support dual-speed 10GBASE-SR/LR or 1000BASE-SX/LX, meaning the administrator now can flexibly choose the suitable SFP/SFP+ transceiver according to the transmission distance or the transmission speed required to extend the network efficiently. They greatly support SMB network to achieve the maximum performance of 10Gbps in a cost-effective way because the 10GbE interface usually could be available in Layer 3 Switch but Layer 3 Switch could be too expensive to SMBs.
Redundant AC/DC Power Supply to Ensure Continuous Operation
The GS-5220-24PL4XVR is particularly equipped with one 100~240V AC power supply unit and one 36~60V DC power supply unit to provide an enhanced reliable and scalable redundant power supply. The continuous power system is specifically designed to fulfill the demands of high-tech facilities requiring the highest power integrity. With the 36~60V DC power supply, the GS-5220-24PL4XVR is able to act as a telecom-level device that can be located in the electronic room.
Environment-friendly, Smart Fan Design for Silent Operation
The GS-5220-24PL4XV and GS-5220-24PL4XVR feature a 19-inch metal housing, a low noise design and an effective ventilation system. They support the smart fan technology that automatically controls the speed of the built-in fan to reduce noise and maintain the temperature of the PoE switch for optimal power output capability. The GS-5220-24PL4XV and GS-5220-24PL4XVR are able to operate reliably, stably and quietly in any environment without affecting its performance.
Solution for IPv6 Networking
With the IPv6/IPv4 dual stack and other management functions with user-friendly interfaces, the GS-5220-24PL4XV and GS-5220-24PL4XVR are the best choices for IP surveillance, VoIP and wireless service providers to deploy the IPv6 network. More importantly, they help SMBs upgrade their network infrastructures to the IPv6 era without any monetary investment.
IPv4/IPv6 VLAN Routing for Secure and Flexible Management
To help customers stay on top of their businesses, the GS-5220 switch series not only provides ultra high transmission performance and excellent Layer 2 technologies, but also offers IPv4/IPv6 VLAN routing feature which allows to cross over different VLANs and different IP addresses for the purpose of having a highly-secure, flexible management and simpler networking application.
Robust Layer 2 Features
The GS-5220 series can be programmed for advanced switch management functions, such as dynamic port link aggregation, Q-in-Q VLAN, Multiple Spanning Tree Protocol (MSTP), Layer 2/4 QoS, bandwidth control and IGMP/MLD snooping. The SGS-5220 series allows the operation of a high-speed trunk combining multiple ports. It consists of a maximum of 14 trunk groups with 4 ports for each group, and supports connection fail-over as well.
Powerful Security
The GS-5220 series offers a comprehensive Layer 2 to Layer 4 access control list (ACL) for enforcing security to the edge. It can be used to restrict to network access by denying packets based on source and destination IP address, TCP/UDP port number or defined typical network applications. Its protection mechanism also comprises 802.1x Port-based and MAC-based user and device authentication. With the private VLAN function, communication between edge ports can be prevented to ensure user privacy.
Enhanced Security and Traffic Control
The GS-5220 series also provides DHCP Snooping, IP Source Guard and Dynamic ARP Inspection functions to prevent IP snooping from attack and discard ARP packets with invalid MAC address. The network administrator can now construct highly-secure corporate networks with considerably less time and effort than before.
User-friendly Secure Management
For efficient management, the GS-5220 managed switch series is equipped with console, web and SNMP management interfaces. With the built-in web-based management interface, the GS-5220 series offers an easy-to-use, platform independent management and configuration facility. The GS-5220 series supports SNMP and it can be managed via any management software based on the standard SNMP v1 or v2 Protocol. For reducing product learning time, the GS-5220 series offers Cisco-like command via Telnet or console port and customer doesn’t need to learn new command from these switches. Moreover, the GS-5220 series offers the remotely secure management by supporting SSH, SSL and SNMP v3 connection where the packet content can be encrypted at each session.
Intelligent SFP/SFP+ Diagnosis Mechanism
The GS-5220-24PL4XV and GS-5220-24PL4XVR support SFP-DDM (Digital Diagnostic Monitor) function that greatly helps network administrator to easily monitor real-time parameters of the SFP and SFP+ transceivers, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.
