Technical Specifications

Model

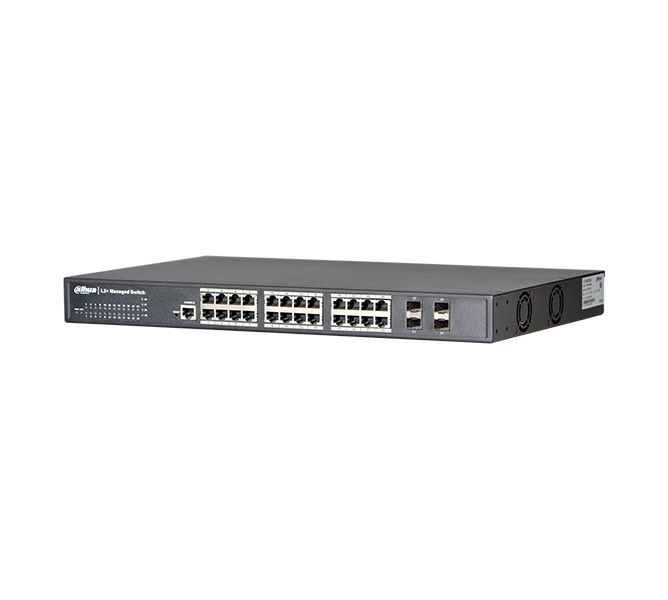

DH-PFS5424-24T

Interfaces

20 x 10/100/1000BASE-T, 4 x Combo 1000BASE-T/SFP

Management Port

1 x Console Port

Reset Button

Factory Default Reset

Switching Capacity

350 Gbps

Packet Forwarding Rate

35.7 Mpps

Operating Temperature

-10 ~ 55°C

Storage Temperature

-40 ~ 70°C

Operating Humidity

5% ~ 95% Non-condensing

Dimensions

440(L) × 285(W) × 44.5(H) mm

Weight

< 5Kg

Input Voltage

AC 110~240V / 50~60Hz

Power Consumption

< 50W

Service & Network Features

Protocol Standards

IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3ae, 802.3x, 802.3az, 802.3ad

MAC Table

32K

VLAN

4K, Port-based, 802.1Q, MAC-based, Protocol-based

Spanning Tree

STP, RSTP, MSTP

Loop Protection

ERPS, Loopback Detection

Port Aggregation

Up to 14 groups, up to 8 GE ports per group; LACP and manual

Mirroring

Many-to-one mirroring; unlimited source ports

Flow Control

Half-duplex: back pressure; Full-duplex: PAUSE frame

Port Speed Limit

Supported

IP Routing

Static Routing

Multicast

IGMP Snooping, MVR (Multicast VLAN Registration)

DHCP

Client, Server, Snooping

Storm Suppression

Broadcast, Multicast, Unicast

Security Features

IP ACL, MAC ACL, VLAN ACL; IP+MAC binding; IP Source Guard; ARP Detection; IEEE 802.1x Port Authentication; Radius Authentication; User Management and Password Protection

System Maintenance

Configuration file upload/download; Firmware upgrade; Restore default via WEB; System logs; PING

Network Management

WEB (HTTP/HTTPS), CLI, Telnet, SSH 2.0, SNMP, RMON, LLDP, NTP client

Accessories

PFT3950

1.25G 850nm, 500m, LC, Multi-mode

PFT3960

1.25G 1310/1550nm, 20km, LC, Single-mode

PFT3970

1.25G 1550/1310nm, 20km, LC, Single-mode

L2+ Managed Switch
