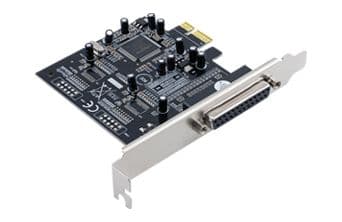

PCI Express
Single-lane (X1) PCI Express End-point Controller with integrated PHY
Compliant with PCI Express Base Specification, Revision 1.1
Compliant with PCI Express Card Specifications
Supports three PCI Express functions
Supports auto completion of configuration requests
Supports built in flow control
Supports Message TLP (Error) generation
Supports integrated time out handling of Non-posted request
Supports both legacy and MSI Interrupt
Supports PCIe Power Management
Compatible with IEEE 1284
Nibble Mode
Byte Mode
Enhanced Parallel Port (EPP 1.9)
Extended Capability Port (ECP)
FIFO mode (Buffered SPP mode)
Cascade : MCS9901CV-CC supports a 13-Pin proprietary interface to connect to other ASIX devices for IO expansion. Through this interface, MCS9901CV-CC can be used as Cascade Secondary device and can be connected to Cascade Primary capable ASIX Devices like MCS9900. Eg. MCS9901CV-CC can be connected to MCS9900, for following product configurations.
PCIe to 6 Serial Ports and 1 Parallel Port
PCIe to 4 Serial Ports and 2 Parallel Ports
General Device Features
I²C interface for EEPROM
EEPROM read / write through PCIe Interface
Six bi-directional multi-function GPIO lines
On chip oscillator
Power supply : 1.2V, 3.3V
