Function

Auto Temperature Control

Heating mode: ON: 5±5 °C/OFF: 15±5 °C
Cooling mode: ON: 37±5 °C/OFF: 20±5 °C

Protection

Vandal-proof Rating

IK10

Protection

IP66

Surge Protection Grade

Common mode: 4 kV
Different mode: 2 kV

Power

Power Consumption

15.5 W (without camera); Heater: 10.9 W; Fan: 0.2 W

Power Supply

24 VDC/24 VAC/36 VDC (the device requires an external power supply)

Power Supply for Camera

12 VDC (12 VDC port that outputs power and provides power for the internal camera)

Port

RS-485

1, used to control the IR light and wiper

Alarm Input Port

2, used to control the IR light and wiper

Alarm Output Port

2, used to control IR feedback and washer modules

DIP Switch

Yes

Structure

Casing Material

The top cover is made of plastic PC material and the housing is built of die-cast aluminum.

Product Dimensions

404.3 mm × 163.8 mm × 131.8mm (15.92" × 6.45" × 5.19") (L × W × H)

Appearance Color

White top cover and black housing

Window Dimensions

Φ59.4 mm (Φ2.34")

Internal Usable Space

280 mm × 115 mm × 85 mm (11.02" × 4.53" × 3.35") (L × W × H)

Net Weight

2.4 kg (5.29 lb)

Gross Weight

2.7kg (5.95 lb)

Installation

Wall mount, ceiling mount, plane mount, pole mount

Screw Thread Type

G1/2

Applicable Model

Please see "Camera Accessories Selection"

Packing List

Housing, Installation guide, Waterproof joint × 2, Wrench×1, Ribbon cable, 1/4-20 × 9UNC screw × 2

Packaging Dimensions

437.0 mm × 190.0 mm × 166.0 mm (17.20" × 7.48" × 6.54") (L × W × H)

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity

<90% (RH)

Storage Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Storage Humidity

10%–90% (RH)

Anti-corrosion Level

Basic Protection

Certifications

Certifications

CE: EN 62368-1, EN55032, EN55035, EN61000-3-2, EN61000-3-3, EN50130-4

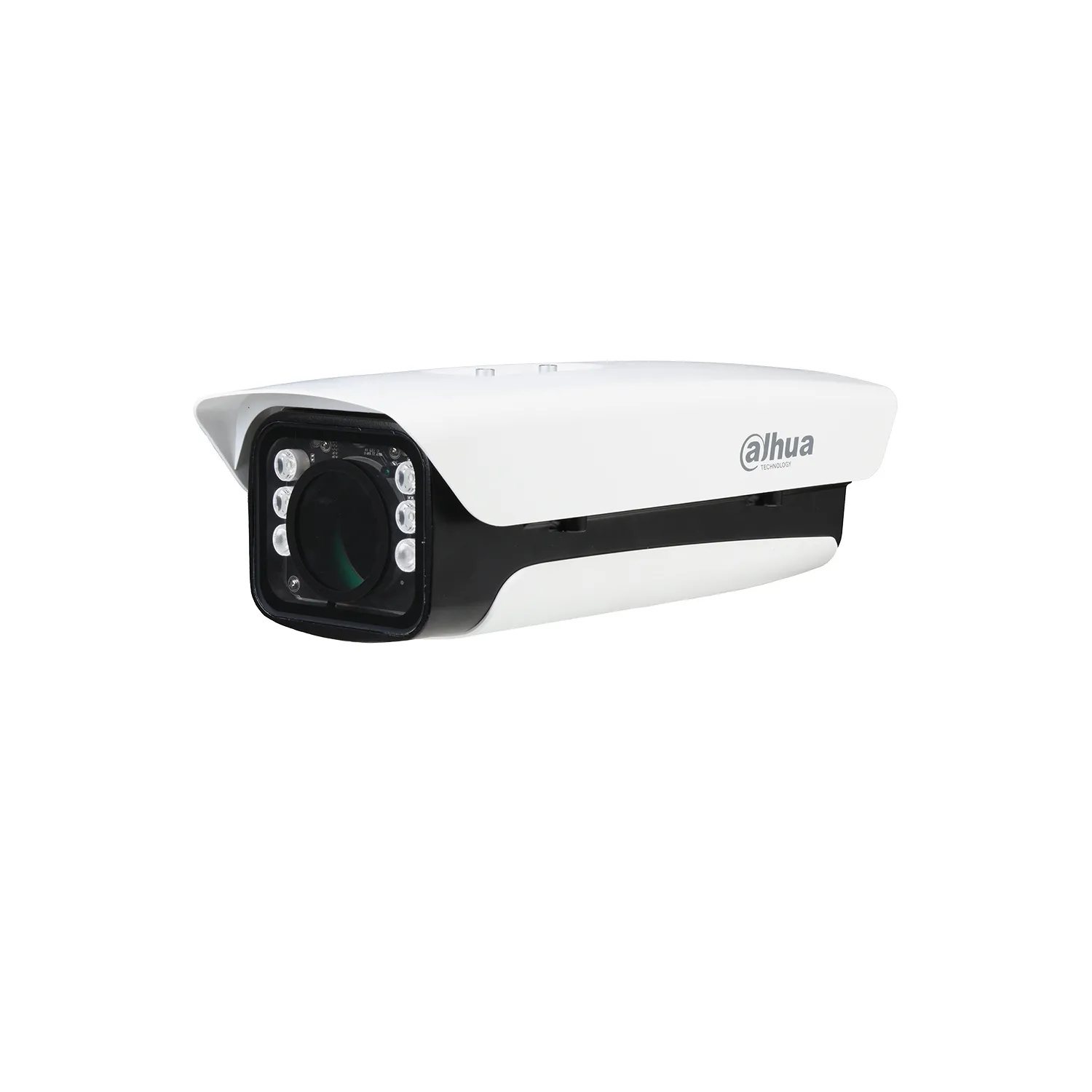

Su Geçirmez & Vandal-Proof Muhafaza (Isıtıcı & Fan)
