Hardware Specifications
Standards	IEEE 802.3, 10Base-T IEEE 802.3u, 100Base-TX IEEE 802.3ab, 1000Base-T IEEE 802.3z, 1000Base-SX/LX IEEE 802.3ah OAM
Ports	1 x 10/100/1000Base-T port 1 x 1000Base-SX/LX port
Copper Interface	10/100/1000BASE-T RJ-45 port (Auto-MDI/MDI-X), Twisted-pair
Optic Interface	GST-802: 1000BASE-SX Multi-mode, Duplex SC GST-802S: 1000BASE-LX Single-mode, Duplex SC GST-805A: 1000BASE-X SFP slot GST-806A15 / GST-806B15 / GST-806A60 / GST-806B60: 1000BASE-BX Single-mode WDM Simplex SC
Fiber Maximum Distance	GST-802: 220/550 m GST-802S: 20 km GST-805A: Varies with SFP module GST-806A15 / GST-806B15: 20 km GST-806A60 / GST-806B60: 60 km
Optic Wavelength	GST-802: 850nm GST-802S: 1310nm GST-805A: N/A GST-806A15 / GST-806A60: TX:1310nm / RX:1550nm GST-806B15 / GST-806B60: TX:1550nm / RX:1310nm
Max. Optical Output Power	GST-802: -1.5 dBm GST-802S: -2 dBm GST-805A: N/A GST-806A15: -2 dBm GST-806A60: -3 dBm
Min. Optical Output Power	GST-802: -9.5 dBm GST-802S: -8 dBm GST-805A: N/A GST-806B15: -2 dBm GST-806B60: -3 dBm
Receive Sensitivity	GST-802: -17 dBm GST-802S: -22 dBm GST-805A: N/A GST-806A15 / GST-806B15: -8 dBm GST-806A60: -2 dBm GST-806B60: -5 dBm
Speed (Twisted-pair)	10/20Mbps for Half / Full Duplex 100/200Mbps for Half / Full Duplex 2000Mbps for Full Duplex
Speed (Fiber-optic)	2000Mbps for Full Duplex
Cable (Twisted-pair)	10Base-T: 2-pair UTP Cat. 3,4,5, up to 100m 100Base-TX: 2-pair UTP Cat. 5, up to 100m 1000Base-T: 4-pair STP Cat 5, up to 100m
Cable (Fiber-optic)	50/125µm or 62.5/125µm multi-mode fiber cable, up to 220/550m / 2km. 9/125µm single-mode cable, provides long distance for 10/20/40/60/80/120km (vary on fiber transceiver or SFP module)
LED Indicator	PWR (Green) TP: 1000, LINK/ACT (Green) Fiber: LINK/ACT (Green)
DIP Switch	Fiber (Auto-negotiation / Manual), LFP (Disable / Enable)
Power Consumption	2.3 Watts / 7.8BTU (maximum)
OAM	TS-1000, IEEE 802.3ah terminal
Jumbo Frame size	16K
Power Input	DC 5V / 2A
Dimensions (W x D x H)	80 x 93 x 26 mm
Weight	207 g
Operating Environment	Temperature: 0~50 degrees C; Humidity: 5~95% non-condensing
Storage Environment	Temperature: -10~70 degrees C; Humidity: 5~95% non-condensing
Emissions	FCC Class A, CE Class A

Converts copper Gigabit Ethernet to fiber optics and extends the distance.

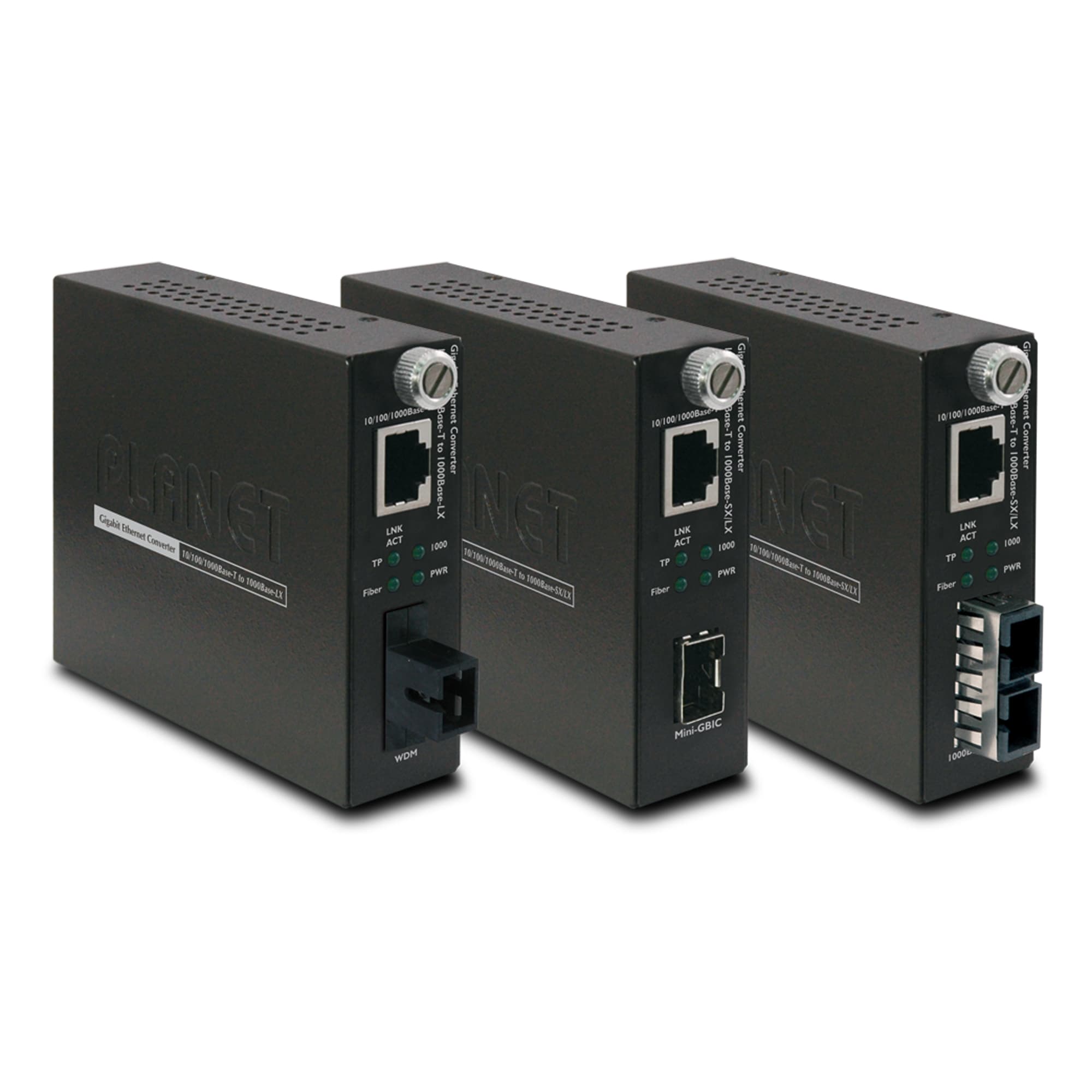

A smart media converter series that works between a 10/100/1000BASE-T copper port and a 1000BASE-SX/LX fiber port. It carries an Ethernet link that stops at 100 m on copper for kilometers over fiber. It serves as a standalone device and inside a managed converter chassis alike.

10/100/1000Base-TCopper port

1000Base-SX/LXFiber port

220 m – 60 kmFiber distance

2000 MbpsFull duplex speed

DC 5V / 2APower input

0~50 °COperating Temperature

Key features

100m

Reach on the copper side

The 1000Base-T link runs up to 100 m over 4-pair STP Cat 5 cable.

16Kjumbo frame

Large frame support

It supports a jumbo frame size of 16K.

2.3Watts

Low power draw

At maximum load it draws 2.3 Watts and gives off 7.8 BTU.

LFPDIP switch

Carries the link fault to the far end

The LLCF and LLR functions drop the link at the other end and alert the administrator.

16converters

Central management with a chassis

The MC-1610MR chassis holds up to 16 converters and manages the fiber network from one point.

IN DAILY USE

Standalone or in a chassisIt runs from a DC adapter on a desk, and draws power from the chassis once it is slotted in.

Fiber choice follows the installationSC, LC, WDM and mini GBIC options suit single-mode or multi-mode links.

Makes a broken link visibleLED indicators and the web interface on the chassis show converter status right away.

Usage areasFTTH and FTTC networks·FTTB building links·Internet service provider networks·Campus and enterprise networks

Hardware Specifications

Standards

IEEE 802.3, 10Base-T
IEEE 802.3u, 100Base-TX
IEEE 802.3ab, 1000Base-T
IEEE 802.3z, 1000Base-SX/LX
IEEE 802.3ah OAM

Ports

1 x 10/100/1000Base-T port
1 x 1000Base-SX/LX port

Copper Interface

10/100/1000BASE-T RJ-45 port (Auto-MDI/MDI-X), Twisted-pair

Optic Interface

GST-802: 1000BASE-SX Multi-mode, Duplex SC
GST-802S: 1000BASE-LX Single-mode, Duplex SC
GST-805A: 1000BASE-X SFP slot
GST-806A15 / GST-806B15 / GST-806A60 / GST-806B60: 1000BASE-BX Single-mode WDM Simplex SC

Fiber Maximum Distance

GST-802: 220/550 m
GST-802S: 20 km
GST-805A: Varies with SFP module
GST-806A15 / GST-806B15: 20 km
GST-806A60 / GST-806B60: 60 km

Optic Wavelength

GST-802: 850nm
GST-802S: 1310nm
GST-805A: N/A
GST-806A15 / GST-806A60: TX:1310nm / RX:1550nm
GST-806B15 / GST-806B60: TX:1550nm / RX:1310nm

Max. Optical Output Power

GST-802: -1.5 dBm
GST-802S: -2 dBm
GST-805A: N/A
GST-806A15: -2 dBm
GST-806A60: -3 dBm

Min. Optical Output Power

GST-802: -9.5 dBm
GST-802S: -8 dBm
GST-805A: N/A
GST-806B15: -2 dBm
GST-806B60: -3 dBm

Receive Sensitivity

GST-802: -17 dBm
GST-802S: -22 dBm
GST-805A: N/A
GST-806A15 / GST-806B15: -8 dBm
GST-806A60: -2 dBm
GST-806B60: -5 dBm

Speed (Twisted-pair)

10/20Mbps for Half / Full Duplex
100/200Mbps for Half / Full Duplex
2000Mbps for Full Duplex

Speed (Fiber-optic)

2000Mbps for Full Duplex

Cable (Twisted-pair)

10Base-T: 2-pair UTP Cat. 3,4,5, up to 100m
100Base-TX: 2-pair UTP Cat. 5, up to 100m
1000Base-T: 4-pair STP Cat 5, up to 100m

Cable (Fiber-optic)

50/125µm or 62.5/125µm multi-mode fiber cable, up to 220/550m / 2km.
9/125µm single-mode cable, provides long distance for 10/20/40/60/80/120km (vary on fiber transceiver or SFP module)

LED Indicator

PWR (Green)
TP: 1000, LINK/ACT (Green)
Fiber: LINK/ACT (Green)

DIP Switch

Fiber (Auto-negotiation / Manual), LFP (Disable / Enable)

Power Consumption

2.3 Watts / 7.8BTU (maximum)

OAM

TS-1000, IEEE 802.3ah terminal

Jumbo Frame size

16K

Power Input

DC 5V / 2A

Dimensions (W x D x H)

80 x 93 x 26 mm

Weight

207 g

Operating Environment

Temperature: 0~50 degrees C; Humidity: 5~95% non-condensing

Storage Environment

Temperature: -10~70 degrees C; Humidity: 5~95% non-condensing

Emissions

FCC Class A, CE Class A

10/100/1000BASE-T to 1000BASE-SX/LX Smart Media Converter

Datasheet

GST-80X Series

Kullanım Kılavuzu

GST-80x Series

GST-80X Series

Similar Products

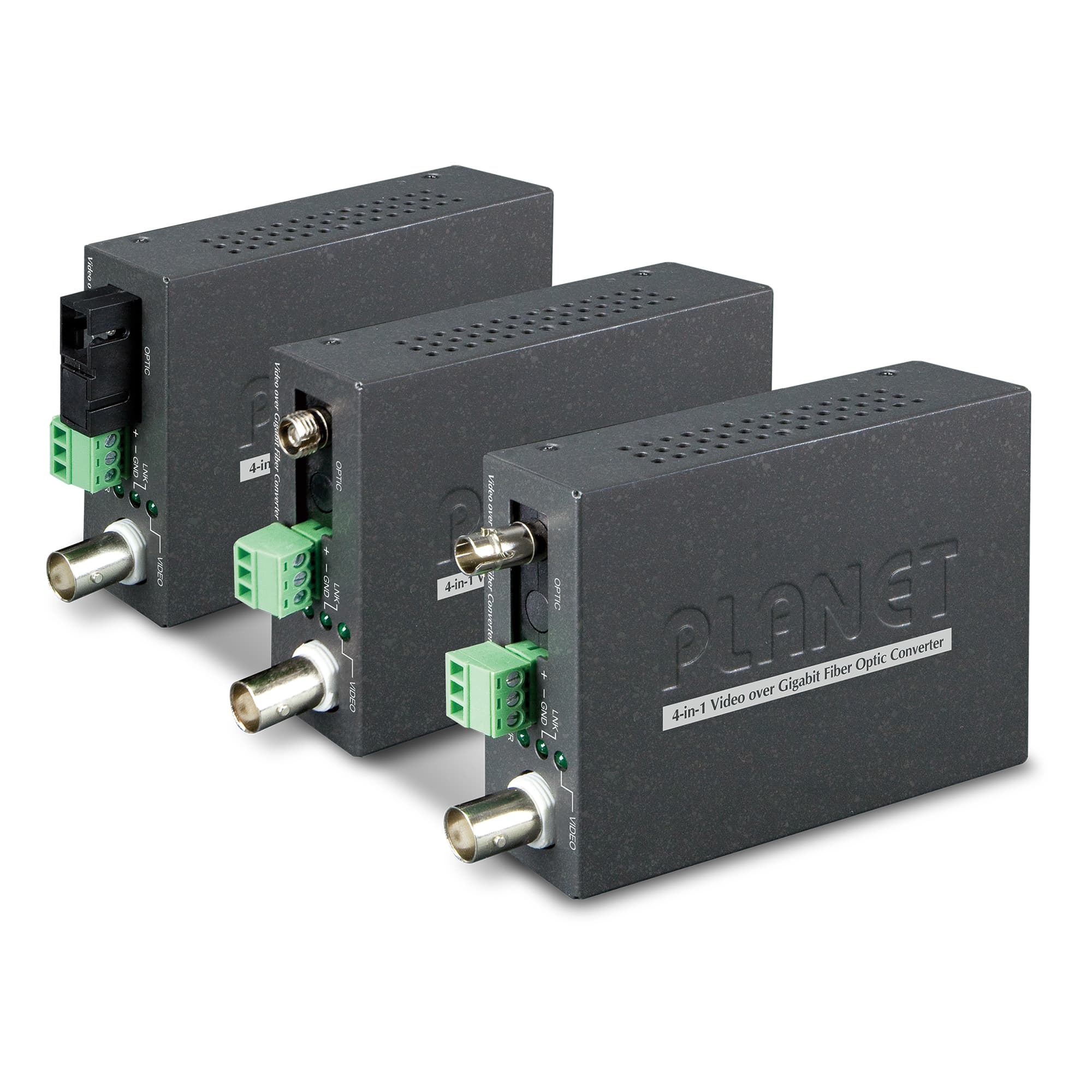

1-Channel 4-in-1 Video over Gigabit Fiber Bundle Kit

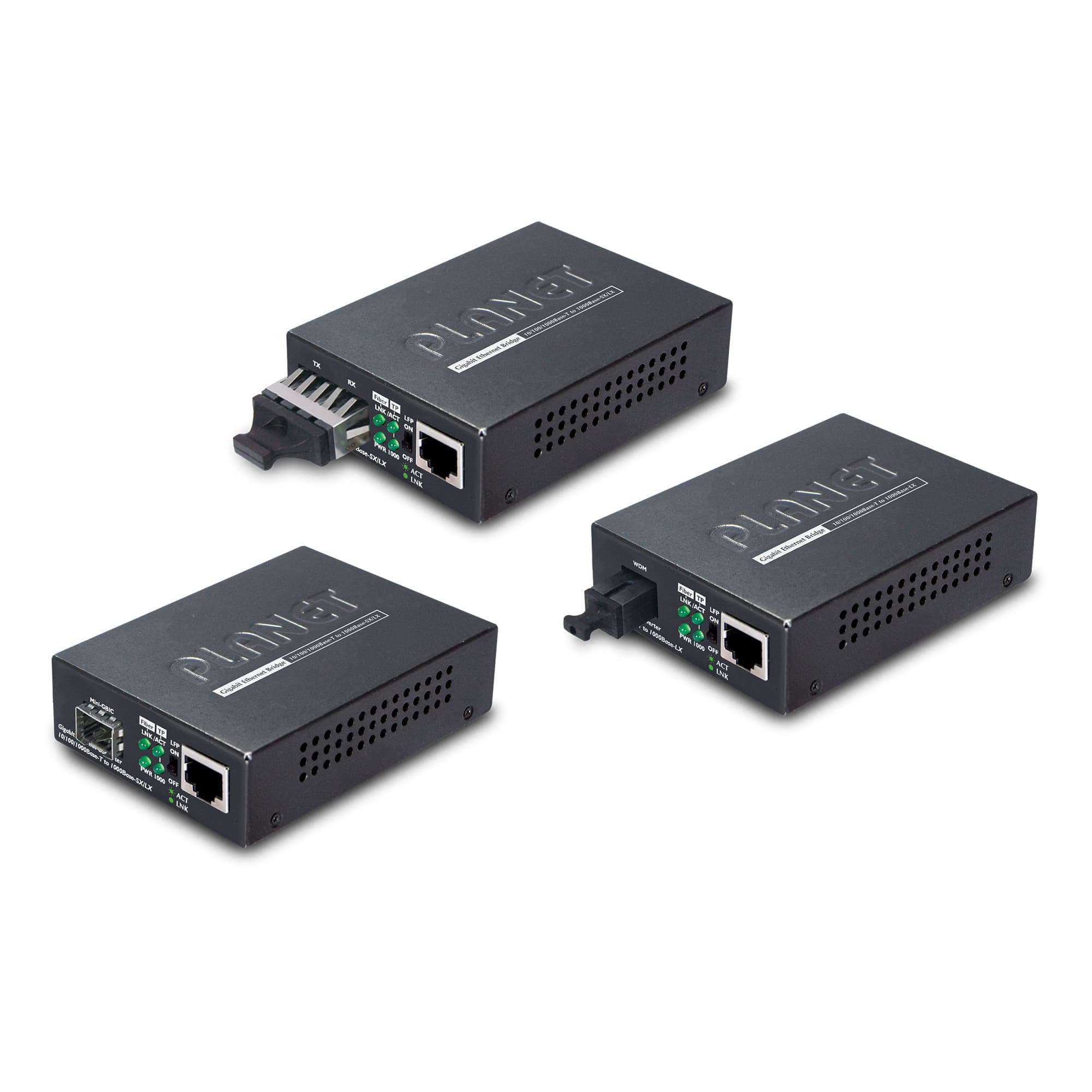

10/100/1000BASE-T to 1000BASE-SX/LX Gigabit Media Converter

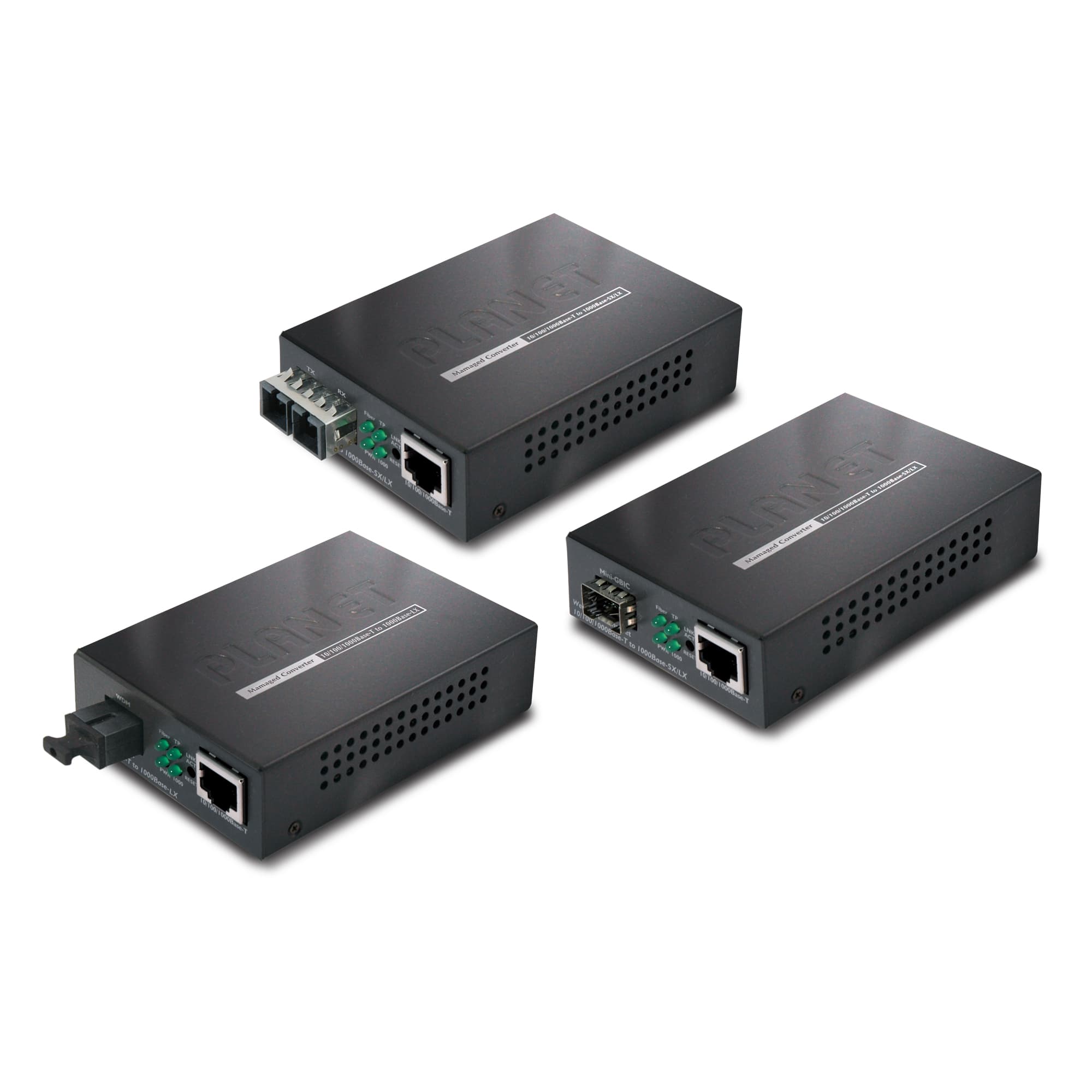

Managed Gigabit Ethernet Media Converter

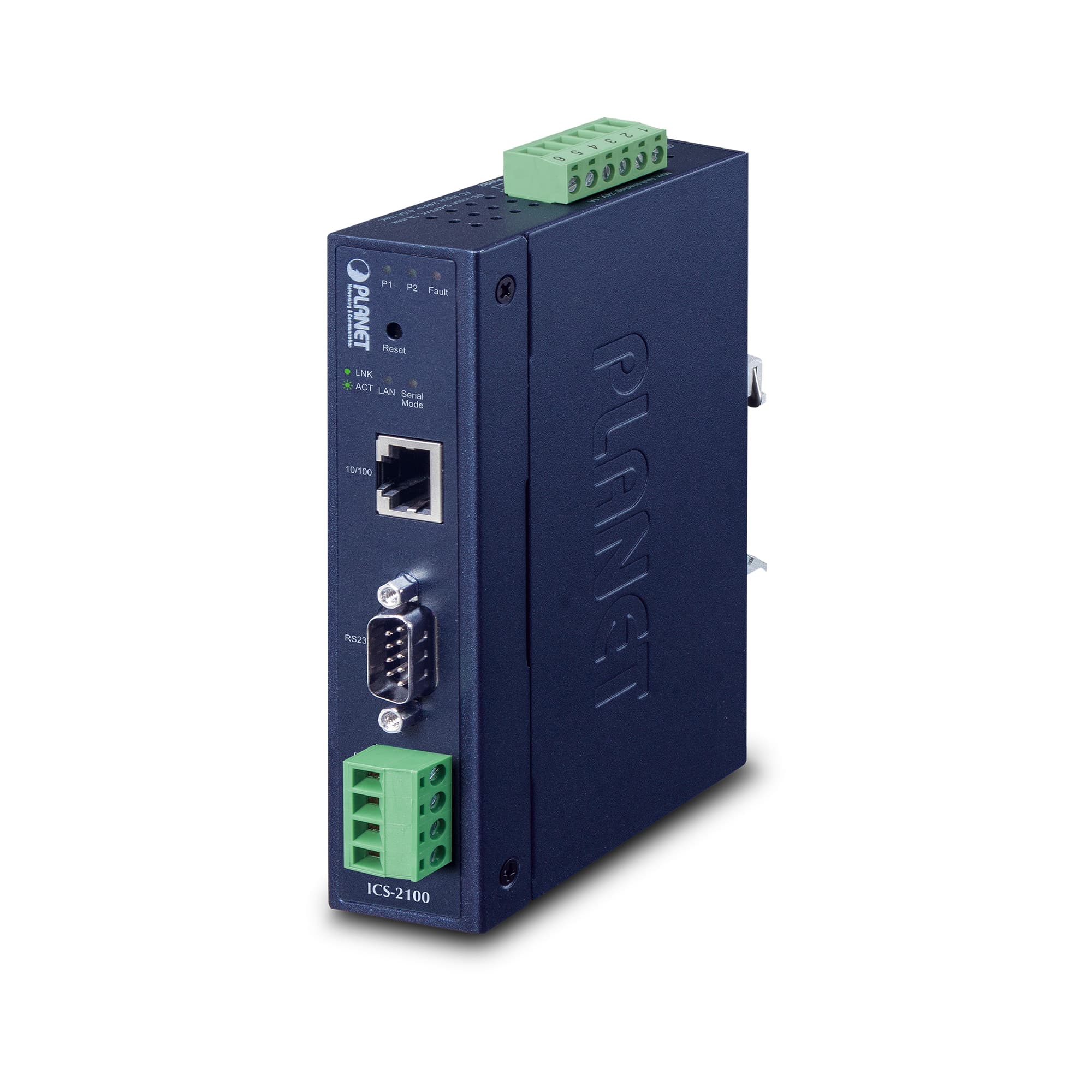

Industrial RS-232/ RS-422/ RS-485 over Ethernet Media Converter
