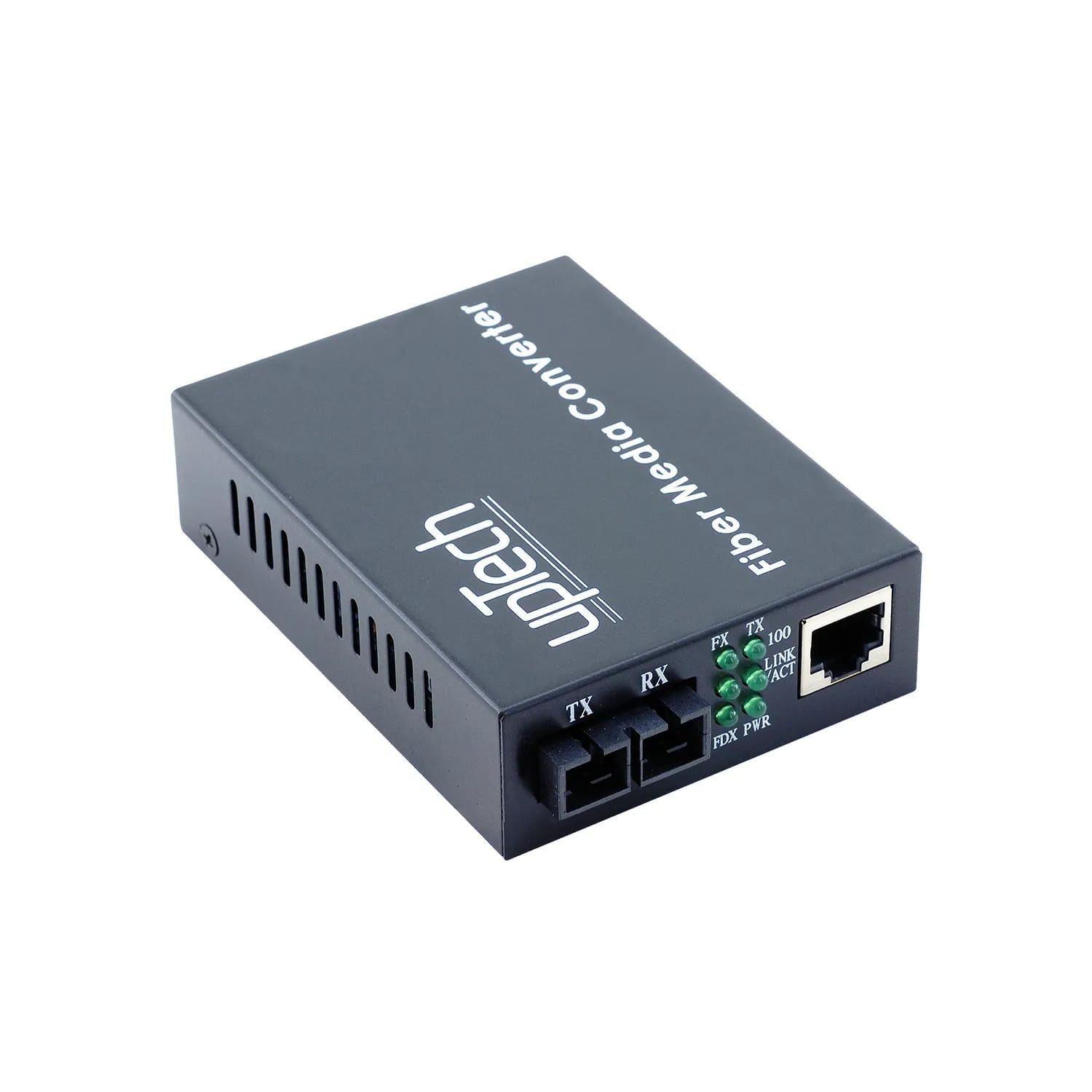

A media converter that bridges copper and fiber in Fast Ethernet networks. It turns a 10/100Base-TX copper link into a 100Base-FX fiber link and carries data up to 25 km over single mode fiber.
Data rateIt runs at 10 and 100 Mbps in full and half duplex modes and supports flow control.
Fiber distanceIt carries data up to 25 km over single mode fiber.
Model optionsThe 20SM variant covers single mode and the 2MM variant multi mode, each with RJ-45 and SC connectors.
DiagnosticsPOWER, FDX/Col, FX Link/Act, TX Link/Act, FX 100 and TX 100 LEDs show link and traffic status.
ProtectionIt carries Class-3 lightning protection and a housing shielded against electrical noise.
Power inputIt accepts AC 110-250 V mains voltage or a DC +5 V, 1 A supply.
Complies with FCC Part 15 Class A and CE standards.
