| General |
|---|
| Product Code | ET5402-RJ45 |
| Brand | Edge-Core |

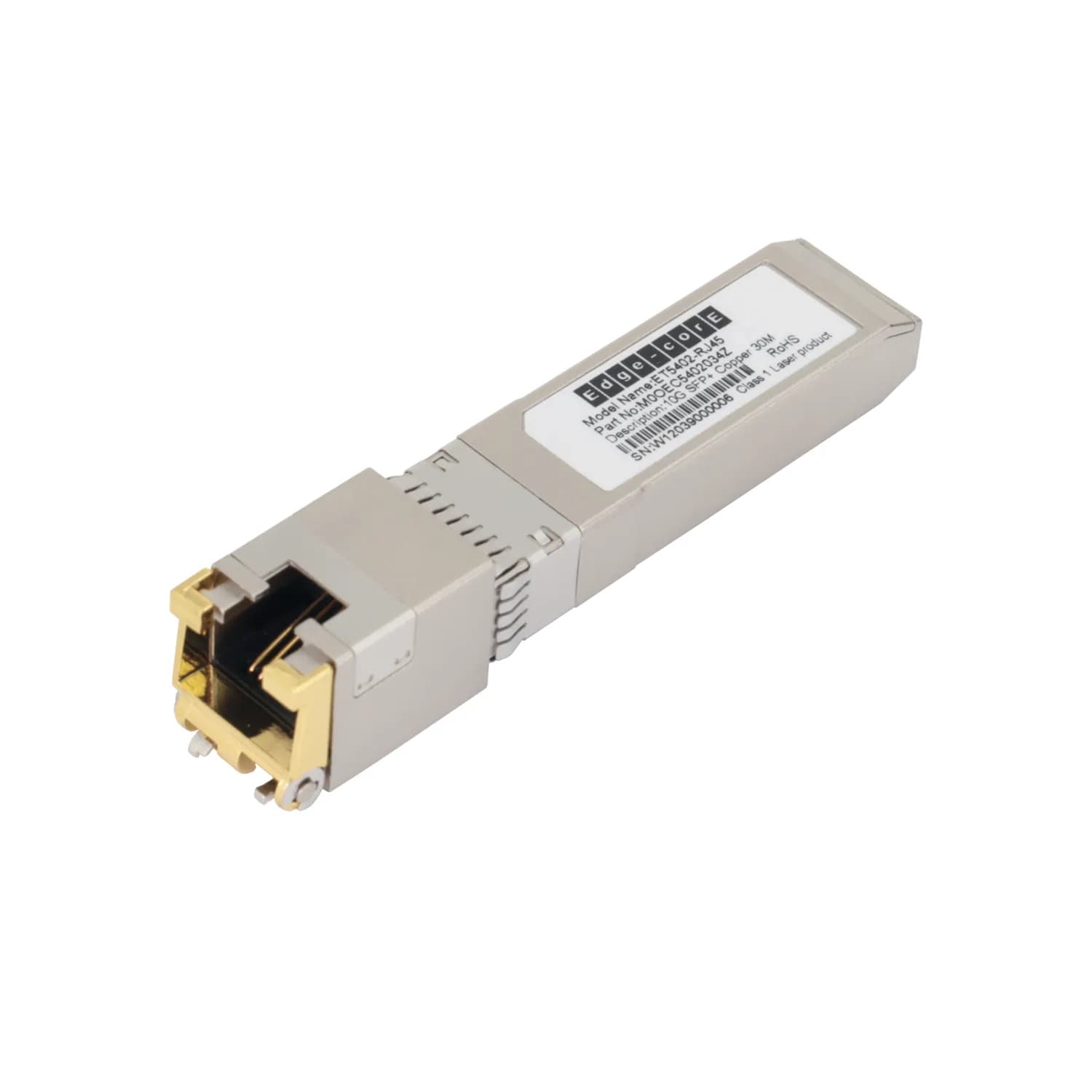

| Product Type | 10GBASE-T Copper SFP Transceiver |
| Description | The Copper SFP+ 10GBASE-T copper small form pluggable (SFP) transceivers are based on the SFP multi-source agreement (MSA). They are compatible with the 10GBASE-T / 5GBASE-T / 2.5GBASE-T / 1000BASE-T standards as specified in IEEE Std. 802.3. |
| Product Features |
|---|
| Form Factor | Hot-pluggable SFP footprint |
| Power Dissipation | Low power dissipation |
| Connector | Compact RJ-45 connector assembly |
| Product Information | Detailed product information in EEPROM |
| Power Supply | +3.3 V single power supply |
| Data Rate / Cable | 10 Gigabit Ethernet over Cat 6a cable |
| Operating Temperature | Commercial: 0°C to +65°C |
| Standards Compliance |
|---|
| Supported Standards | 10GBASE-T / 5GBASE-T / 2.5GBASE-T / 1000BASE-T (IEEE Std. 802.3) |
| MSA Compliance | SFP multi-source agreement (MSA) |
| Electrical Characteristics |
|---|
| Supply Ratings |
| Parameter | Symbol | Minimum | Typical | Maximum |
|---|
| Supply Current | Is | – | 700 | 900 |
| Input Voltage | Vcc | 3.13 | 3.3 | 3.47 |
| Maximum Voltage | Vmax | – | – | 4 |
|
| Note | The electrical values are given without a unit column in the manufacturer datasheet. |
| Ordering and Performance Information |
|---|
| Supported Rates / Reach |
| Line Port | Cable | Reach | Host Port | Temp | DDM | RoHS |
|---|
| 10GBASE-T | CAT6A | 30 m | 10GBASE-R | 0°C ~ 65°C | Available | Compliant |
| 5GBASE-T | CAT5E | 50 m | 10GBASE-R | 0°C ~ 65°C | Available | Compliant |
| 2.5GBASE-T | CAT5E | 50 m | 10GBASE-R | 0°C ~ 65°C | Available | Compliant |
| 1000BASE-T | CAT5E | 100 m | 10GBASE-R | 0°C ~ 65°C | Available | Compliant |
| 100BASE-T | CAT5E | 100 m | 10GBASE-R | 0°C ~ 65°C | Available | Compliant |
|
| Pin Assignments |
|---|
| Pin Descriptions |
| Pin | Signal Name | Description | Notes |
|---|
| 1 | VEET | Transmitter Ground (Common with Receiver Ground) | 1 |
| 2 | TFAULT | Transmitter Fault. Not supported. | |
| 3 | TDIS | Transmitter Disable. Laser output disabled on high or open. | 2 |
| 4 | MOD_DEF(2) | Module Definition 2. Data line for Serial ID. | 3 |
| 5 | MOD_DEF(1) | Module Definition 1. Clock line for Serial ID. | 3 |
| 6 | MOD_DEF(0) | Module Definition 0. Grounded within the module. | 3 |
| 7 | Rate Select | No connection required. | |
| 8 | LOS | High indicates no link, low indicates linked. | |
| 9 | VEER | Receiver Ground (Common with Transmitter Ground) | 1 |
| 10 | VEER | Receiver Ground (Common with Transmitter Ground) | 1 |
| 11 | VEER | Receiver Ground (Common with Transmitter Ground) | 1 |
| 12 | RD- | Receiver Inverted DATA out. AC Coupled. | |
| 13 | RD+ | Receiver Non-inverted DATA out. AC Coupled. | |
| 14 | VEER | Receiver Ground (Common with Transmitter Ground) | 1 |
| 15 | VCCR | Receiver Power Supply | |
| 16 | VCCT | Transmitter Power Supply | |
| 17 | VEET | Transmitter Ground (Common with Receiver Ground) | 1 |
| 18 | TD+ | Transmitter Non-Inverted DATA in. AC Coupled. | |
| 19 | TD- | Transmitter Inverted DATA in. AC Coupled. | |
| 20 | VEET | Transmitter Ground (Common with Receiver Ground) | 1 |
|
| Note 1 | Circuit ground is connected to chassis ground. |
| Note 2 | PHY disabled on TDIS > 2.0 V or open, enabled on TDIS < 0.8 V. |
| Note 3 | Should be pulled up with 4.7 kΩ - 10 kΩ on the host board to a voltage between 2.0 V and 3.6 V. MOD_DEF (0) pulls the line low to indicate the module is plugged in. |
