| General |
|---|

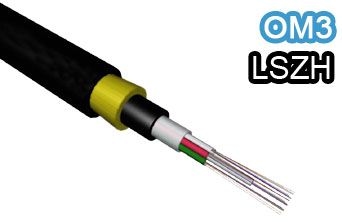

| Product Code | FO112M3-LSZH |
| Fiber Count | 12 core |
| Fiber Type | 50/125 multimode (OM3) |
| Tube Construction | Single tube |
| Armouring | Steel armoured |
| Outer Sheath | LSZH |
| Cable |
|---|
| Test Values |
| Property | Unit | Value | Test Standard |
|---|
| Tensile Strength at Break | kN | >1.2 | EN 60794.1.E1 |
| Breaking Tensile Strength | kN | >1.5 | EN 60794.1.E1 |
| Crush Resistance | N/cm | >200 | EN 60794.1.E3 |
| Repeated Bending Radius | mm | <20xD | EN 60794.1.E6 |
| Single Bending Radius | mm | <15xD | EN 60794.1.E6 |
| Torsion | +90°C, 8 | positive | EN 187 000 M 508 |
| Impact | kN | >1 | EN 187000 M 504 |
| Temperature | | | EN 60794.1.E11 |
|
| Outer Sheath |
|---|
| Test Values |
| Property | Unit | Value | Test Standard |
|---|
| Density | g/cm³ | >20 | ASTM D 638 |
| Tensile Strength at Break | N/mm² | >400 | ASTM D 638 |
| Elongation at Break | % | 2/10 | ASTM D 1693 |
| E.S.C.R. (10% Igepal C-630) | >500 hours | 2/10 | ASTM D 746 |
| Breaking Cold | <-75°C | 2.5+0.5 | ASTM D 1603 |
| Carbon Black Rate | % | <0.950 | ASTM D 792 Method A |
| Oxygen Induction Time | 200°C | >25 | IEC 811.4.2 B |
|
| Tube Gel |
|---|
| Test Values |
| Property | Unit | Value | Test Standard |
|---|
| Density (25°C) | g/cm³ | +0.05 | DIN 51 757 |
| Drop Point (24 hours) | °C | appropriate | IEC 811.5.1 B |
| Drip Point (24 hours) | °C | >70 | REA PE 39 |
| Flash Point | °C | >230 | ISO 2592 |
| Oil Separation (150°C, 24 hours) | % | 0 | FTM STD 791 C |
| Volatility | % | <2 | FTM STD 791 C |
| Water Amount | % | <0.05 | DIN 51 777 |
| Acid Value (100°C) | % (mg KOH/g) | <0.01 | DIN 53 402 |
| Abrasion | | positive | IEC 811.5.1 |
| Penetration (25°C / -30°C) | 1/10 mm | >150 | ISO 2137 |
| Oxygen Induction Time (180°C) | minute | >20 | IEC 811.4.2 B |
| 100-500 V (100°) | Ω x m | >10 | ASTM D 1169 |
| 100-500 V (23°) | Ω x m | | ASTM D 1169 |
|
| Loose Tube |
|---|
| Test Values |
| Property | Unit | Value | Test Standard |
|---|
| Loose Tube | | >10,11 | |
| Density | g/cm³ | 1.31+0.03 | ISO 1183 |
| Water Absorption (23°C) | % | <0.45 | DIN 53 495 |
| Tensile Strength at Break | N/mm² | <30 | ISO 527 |
| Elongation at Break | % | >50 | ISO 527 |
| E-Modulus | N/mm² | >2200 | ISO 527 |
| Hardness (Shore) | Shore D | >78 | DIN 53 505 |
| Melting Temperature (DSC) | °C | >220 | ISO 3146 C |
| Linear Thermal Expansion Coefficient (-23<<+80°C) | °K-1 x10-4 | <1.3 | |
|
| E-Glass Yarn |
|---|
| Test Values |
| Property | Unit | Value | Test Standard |
|---|
| Density | g/cm³ | as offered | as offered |
| Tensile Strength at Break | % | as offered | as offered |
| Elongation at Break | N/mm² | as offered | as offered |
| E-Modulus | % | as offered | as offered |
|
| Armouring |
|---|
| Test Values |
| Property | Unit | Value | Test Standard |
|---|
| Steel Thickness | nm | 0.155±0.015 | ASTM A 623 M |
| Tensile Strength at Break | N/mm² | >300 | ASTM E 6892 |
| Elongation at Break | % | >15 | ASTM E 6892 |
| Thickness of Coating | nm | >0.050±0.01 | ASTM A 623 M |
| DC Resistance | ohm/km | <40 | ASTM A 6892 |
|
| Warranty |
|---|
| Warranty Period | Lifetime warranty (ORing Networking fiber products) |
